INSTRUCCIONES DE MONTAJE DE LOS SOPORTES DE TRONCO
LOS SOPORTES DE TRONCO DEBEN SER MONTADOS SOBRE UN TAPIZADO DE RESPALDO
RÍGIDO (ASIENTO CONFORT).
Para fijar los soportes de tronco detrás del respaldo, siga las instrucciones:

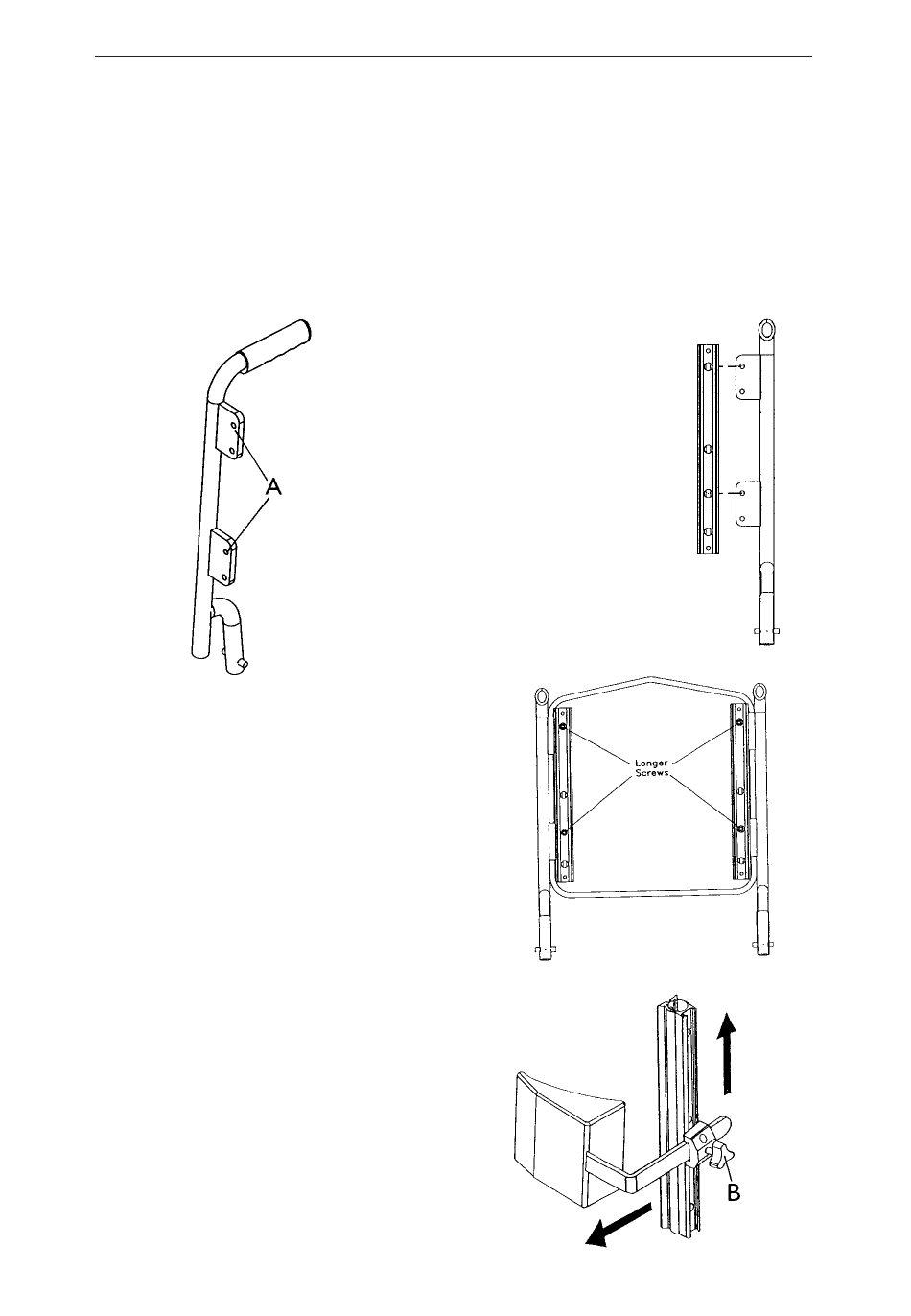

Retire los tornillos de las bridas representados en la Fig. 1. Con el distintivo (A). Los tornillos inferiores de
cada brida deben quedar en su lugar.
Fig 1.
With the longer screws provided attach the
Fije el raíl de soporte al respaldo con los tornillos
support rail to the backrest through the flanges
más largos. No atornille el panel trasero. Apriete
bien pero sin excesos ya que podría dañar las
into the screw inserts. Do not screw into the
inserciones
backboard. Tighten securely, but do not
overtighten as this may damage the screw-
threaded inserts.
Con los raíles fijados, haga deslizar el soporte de
With the support rails secured, slide the lateral
tronco en el raíl de soporte desde abajo.
support into the support rail from the bottom.
Ajuste según las necesidades del usuario y apriete
Adjust to the occupant's requirements and firmly
bien la palomilla (B).
tighten the hand wheel (B).
Fig 2.
Alinee el raíl de
Line up the
soporte con los
support rail with
orificios del
the holes in the
respaldo como
backrest as
se muestra en
shown in Fig 2
la Fig. 2
