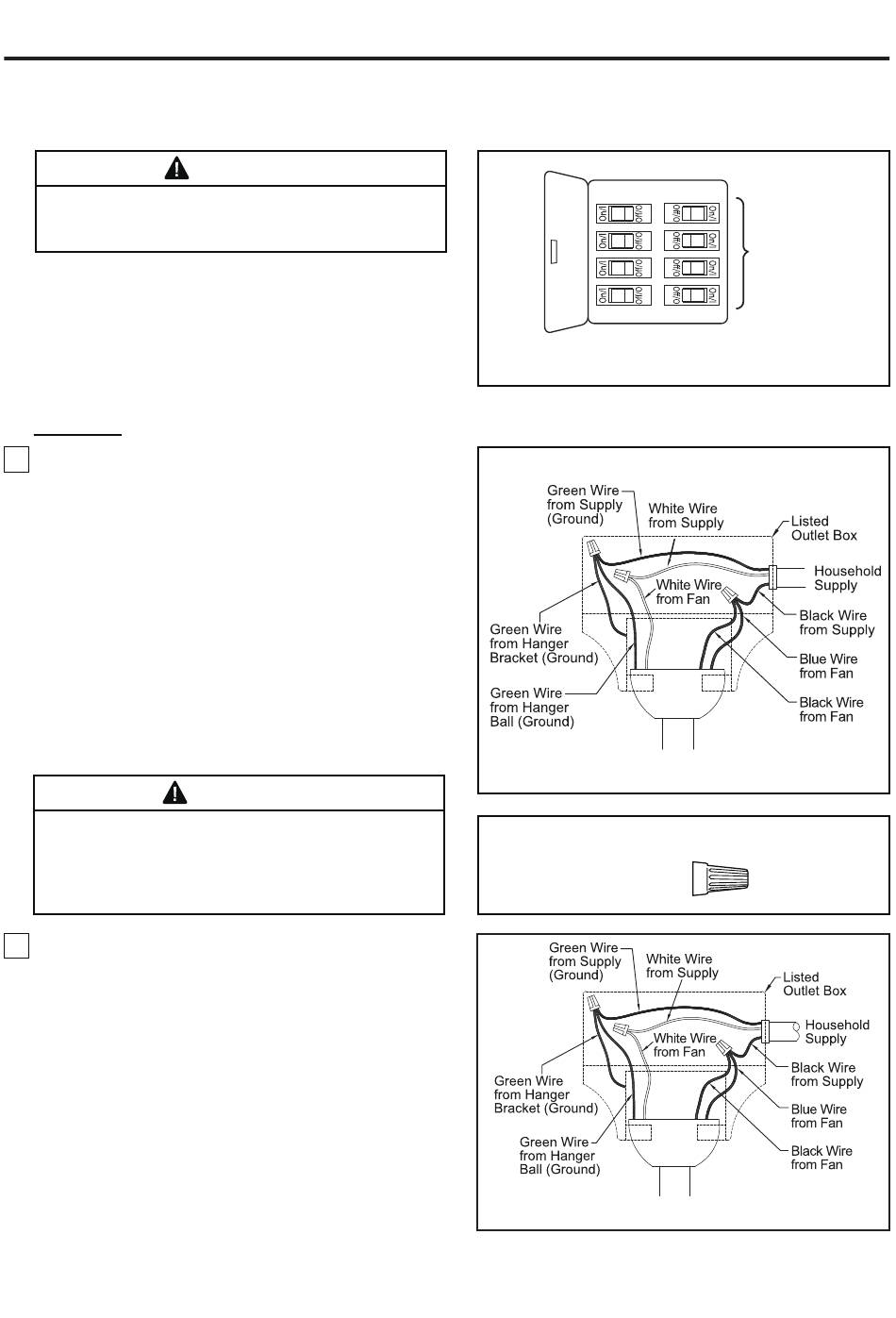

How To Wire Your Ceiling Fan - Fanimation AIRE DELUXE FP6284 Serie Manual De Instrucciones

WARNING
To avoid possible electrical shock, be sure electricity
is turned off at the main fuse box before wiring.
(Figure 1)
NOTE: If you are not sure if the outlet box is grounded,
contact a licensed electrician for advice, as it must be
grounded for safe operation.
NOTE: If you feel that you do not have enough
electrical wiring knowledge or experience, have your
fan installed by a licensed electrician.
Option A
1. Connect the green grounding lead from the downrod
and the green grounding lead from the hanger bracket
to the supply grounding conductor (this may be a bare
wire or wire with green colored insulation). Securely
connect wires with wire connector. Securely connect the
white fan motor wire to the white supply (neutral) wire
using wire connector. Securely connect the black fan
motor wire and blue wire to the black supply wire using
wire connector. (Figure 2A)
WARNING
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors except for the ground wire. Do not operate
fan until the blades are in place. Noise and motor
damage could result.
2. After connections have been made, taking care not
to pinch the wires and put the white and green leads to
one side and the black leads towards the other side,
the connection should be turned upward and carefully
push leads into the outlet box. The wires should be
spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the
outlet box and the ungrounded conductor on the other
side. (Figure 3A)

How to Wire Your Ceiling Fan

Wire Connectors
9
MAIN FUSE BOX
Figure 1
Figure 2A
HARDWARE USED:
X
Figure 3A
