6 ft.
(1.8 m)

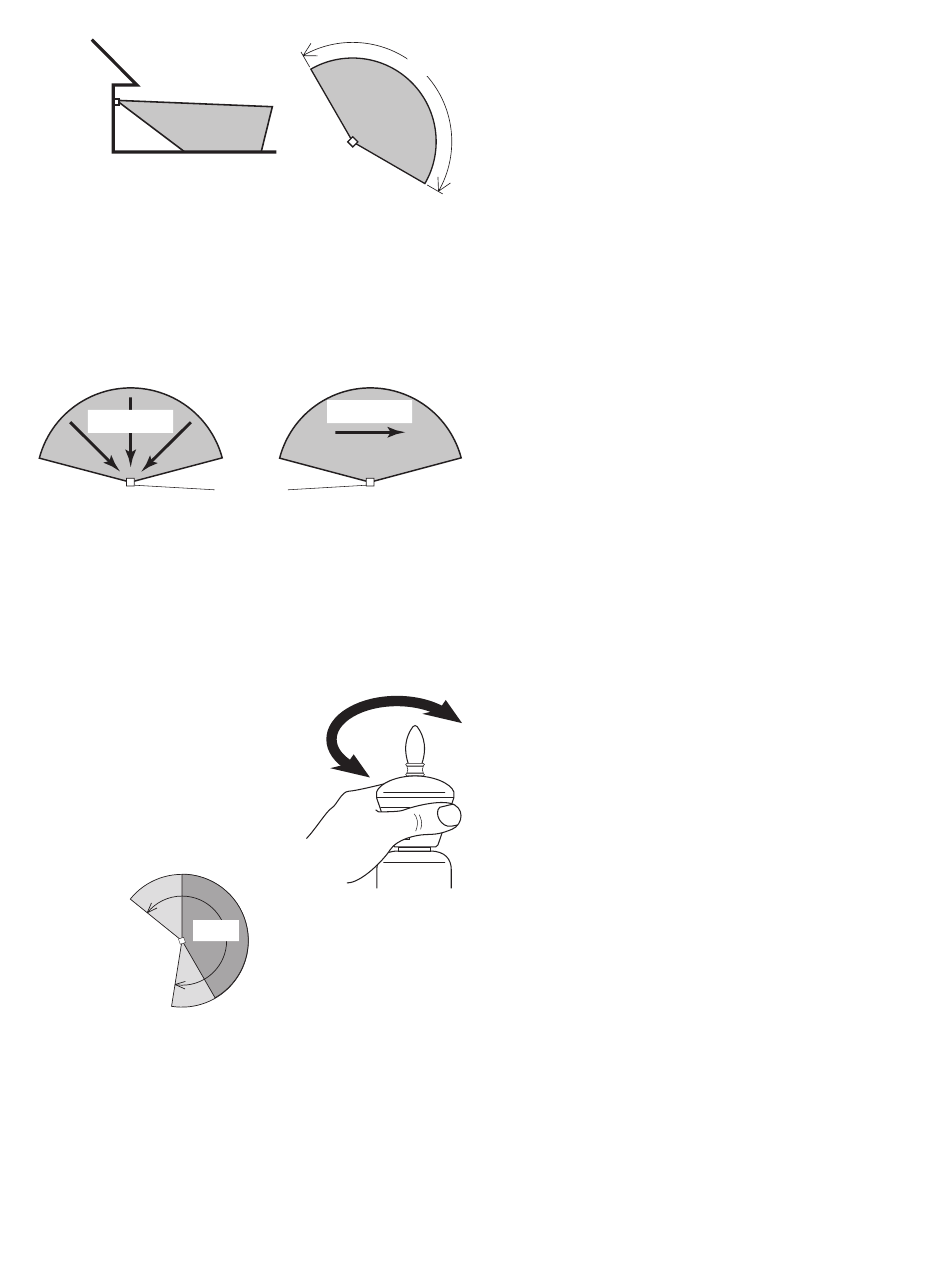

Maximum Range
Thedetectorislesssensitivetomotiondirectlyto-
wards it and more sensitive to across motion.
Motion
Least Sensitive
❒ Walk through the coverage area noting
where you are when the lights turn on.
Move the sensor head left or right to
change the coverage area.
Note: Grasp the sensor only
as shown and turn the entire
sensor. Any other method
may damage the sensor.
Do not force it past the
stops.
240°
30 ft.
(9.1m)
Maximum
Coverage Angle
Motion
Sensor
Most Sensitive
Sensor Aiming
Adjustment Angle
❒ If you need to change the sensitivity,
150°
temporarily remove the fixture and make
the adjustment.Too much sensitivity may
increase false triggering.
❒ Set the amount of TIME you want the
light to stay on after motion is detected.
(1, 5, or 10 minutes).
❒ Set the amount of time after dusk you
want the lights on accent level.
SPECIFICATIONS
Range . . . . . . . . . . . Up to 30 ft. (9.1 m)
Sensing Angle . . . . . Up to 150°
Electrical Load. . . . . See rating on fixture
Sensor Capacity . . . Upto360Watts(3.0A.)
Power Requirements 120 VAC, 60 Hz
Operating Modes . . . TEST, AUTO, and
Time Delay . . . . . . . 1, 5, 10 minutes
D B
®
ual rite
HeathCo LLC reserves the right to discontinue
products and to change specifications at
any time without incurring any obligation
to incorporate new features in products
previously sold.
6
[varieswithsurrounding
temperature]
for maximum wattage
Maximum Tungsten
Incandescent
MANUAL MODE
Timer . . . Off, 3, 6 hours, dusk-to
dawn
