OBJ_BUCH-3221-001.book Page 17 Friday, July 7, 2017 9:23 AM
Battery Charge-control Indication
The three green LEDs of the battery charge-control indicator 6
indicate the charge condition of the battery 4. For safety rea-
sons, it is only possible to check the status of the charge con-
dition when the machine is at a standstill.
Press button 7 to indicate the charge condition. This is also
possible when the battery 4 is removed.
LED
Continuous lighting 3 x green
Continuous lighting 2 x green
Continuous lighting 1 x green
Flashing light 1 x green
When no LED lights up after pushing button 7, then the battery
is defective and must be replaced.
Changing the Tool
 Before any work on the machine itself (e. g.
maintenance, tool change, etc.) as well as dur-
ing transport and storage, remove the battery
from the power tool. There is danger of injury when
unintentionally actuating the On/Off switch.
 Wear protective gloves when changing appli-
cation tools/accessories. Contact with the applica-
tion tool/accessory can lead to injuries.

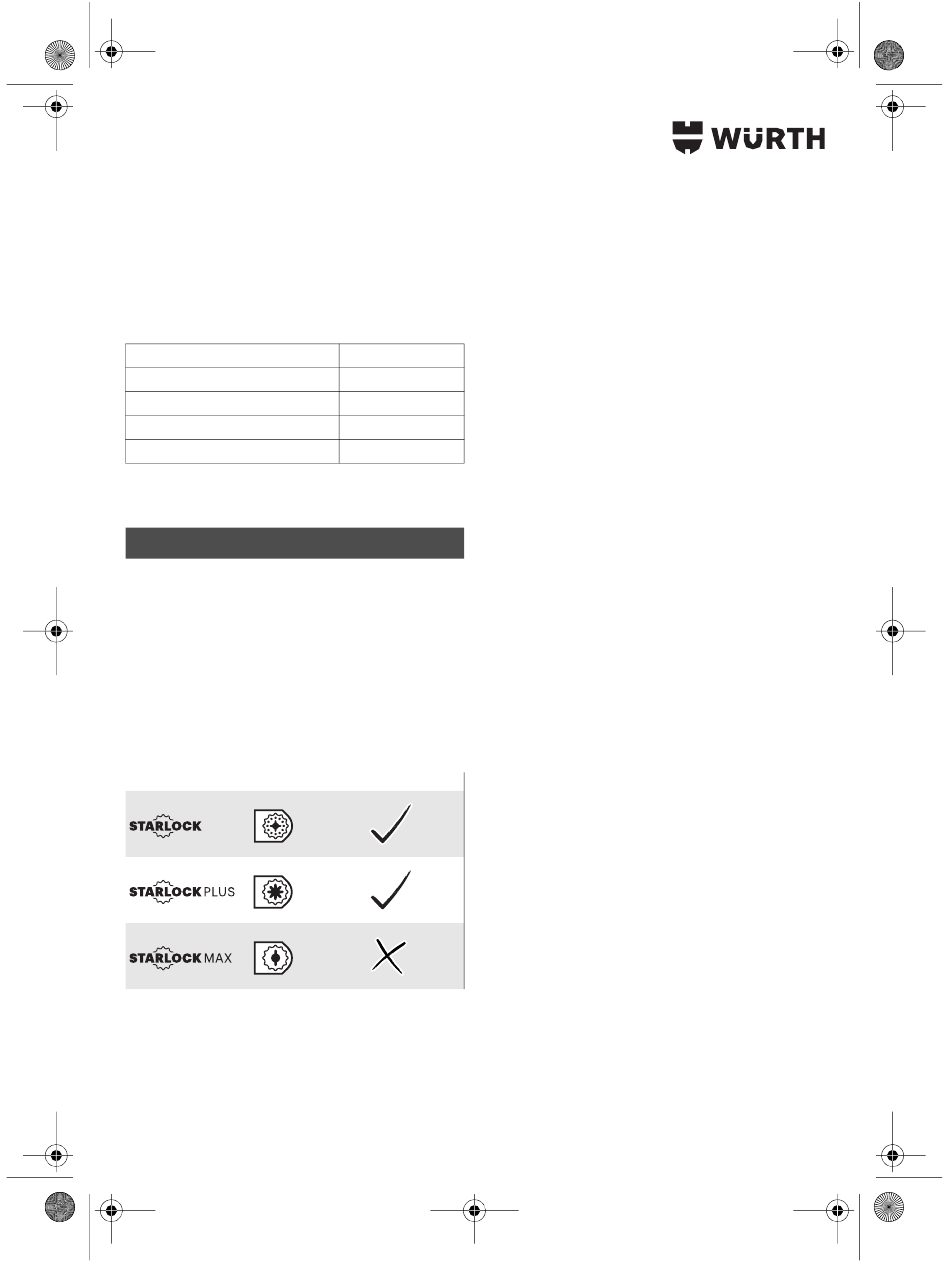

Selecting the Application Tool/
Accessory
Accessory
Mounting/Replacing the Application
Tool/Accessory
If required, remove an already mounted application tool/
accessory.
To do so, open the SDS lever 8 all the way. The application
tool/accessory will be ejected.
Mount the requested application tool/accessory (e.g. plunge
cut saw blade 11) in such a manner on the tool holder 9 that
Capacity
the offset faces downward (see illustration on the graphics
2/3
page; marking on the application tool/accessory is readable
from above).
1/3
When doing so, place the application tool/accessory in a
<1/3
position which is convenient for the job at hand. Twelve differ-
Reserve
ent positions are possible, each offset by 30°.
Press the application tool/accessory in the required position
firmly onto the clamping jaws of the tool holder until it is auto-
matically locked.
 Check the tight seating of the application
tool/accessory. Incorrect or not securely fastened
application tools/accessories can come loose during
operation and pose a hazard.
Mounting/Replacing a Sanding Sheet
on the Sanding Plate
The sanding plate 12 is fitted with Velcro backing for quick
and easy fastening of sanding sheets with Velcro adhesion.
Before attaching the sanding sheet 13, free the Velcro back-
ing of the sanding plate 12 from any debris by tapping
against it in order to enable optimum adhesion.
Position the sanding sheet 13 flush alongside one edge of the
sanding plate 12, then lay the sanding sheet onto the sanding
EMS 18-A EC SL
plate and press firmly.
To ensure optimum dust extraction, pay attention that the
punched holes in the sanding sheet match with the holes in the
sanding plate.
To remove the sanding sheet 13, grasp it at one of the tips
and pull it off from the sanding plate 12.
Sanding accessories, such as fleece pads/polishing cloth
pads, are attached to the sanding plate in the same manner.
17
