PT-37 Torch Installation

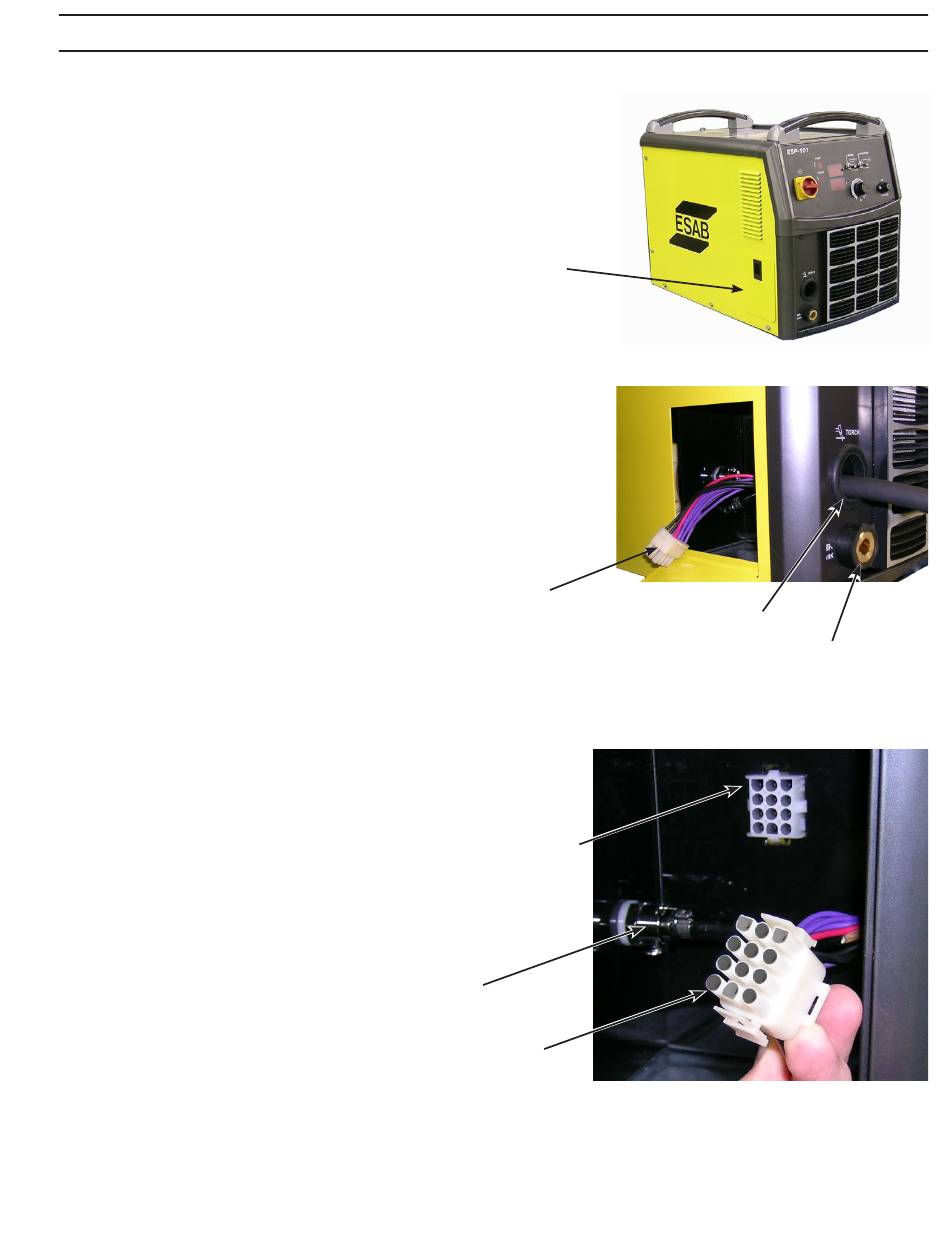

1. Open lead access door on the left side of the ESP-101.
2. Route the torch cable through the access opening on the
front of the console.
3. Connect the torch cable receptacle to the panel receptacle.
Check orientation of the sockets to ensure a correct fit.
4. Connect the air hose to the quick-connect fitting.
5. Insert work cable plug into work cable socket on the front of
the console and turn clockwise until secure.
6. Close the Torch Lead access door.
Torch Lead Access Door
Torch Cable Male Receptacle
Panel Receptacle
Air Hose
Torch Cable Male Receptacle
25
INSTallaTIoN
Torch Lead Access Opening
Work Cable Socket
