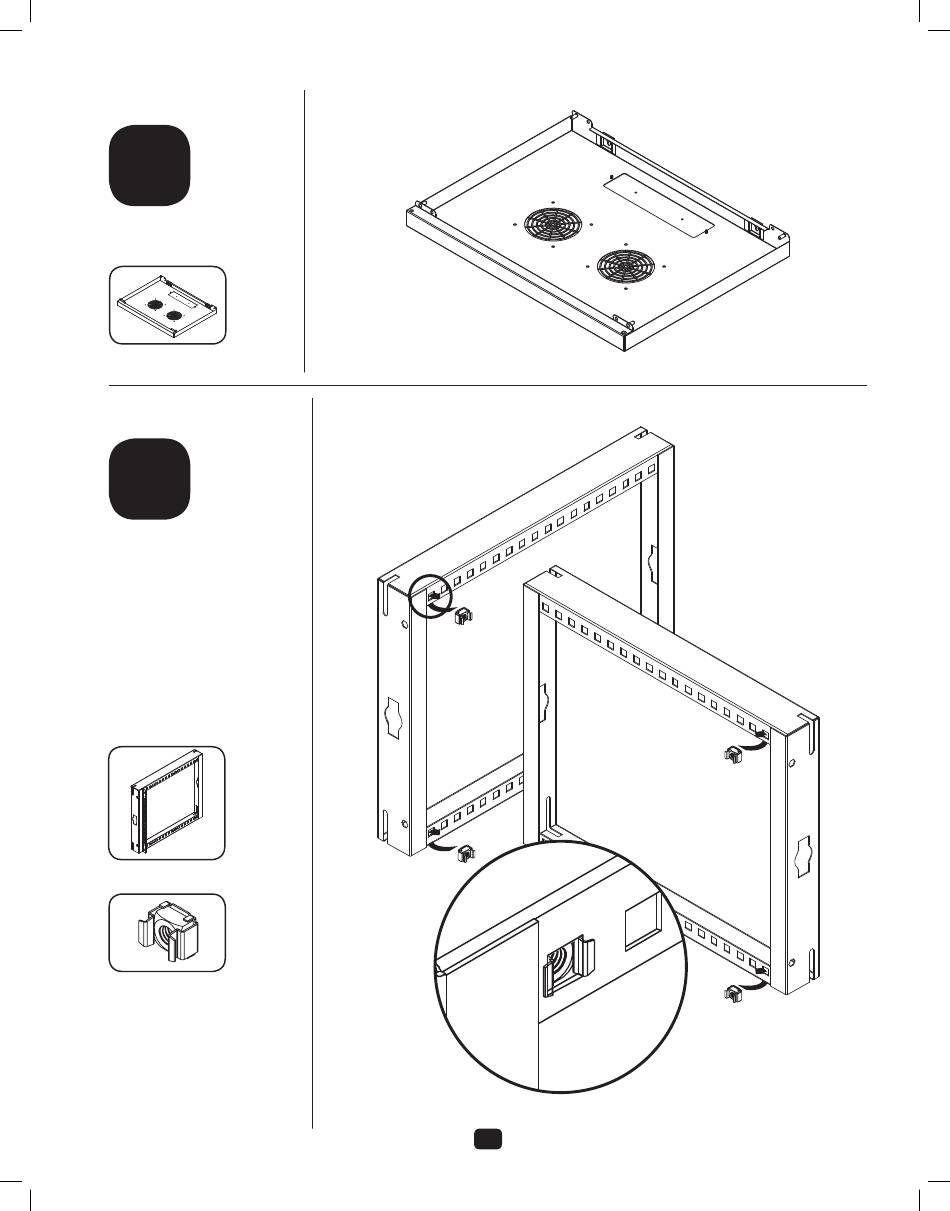

step
1
Place Bottom Panel
floor or a stable work surface.
A
1
step
2
Before attaching Vertical
D
Mounting Rails to Side
B
Panels , you must decide how
deep to install the rail using
the square holes along the
preinstalled horizontal rails at
the top and bottom of the Side
Panels. Place an M6 Cage Nut
through the square hole at the
top and bottom from behind
the rail. Make sure all Cage
Nuts are aligned.
B
2
F
4
