HAMPTON BAY 29402 Guía De Uso Y Mantenimiento

PACKAGE CONTENTS
PLANNING FOR A SUCCESSFUL ASSEMBLY
Read all instructions before assembly and installation.
Inspect each part for defects that may have occurred during shipping.
Keep your receipt and these instructions for proof of purchase.
CHOOSING THE RIGHT LOCATION
Install your solar panel in a location with full, direct sunlight. Do not install in
shaded areas as these areas will not allow the battery to fully charge and will
reduce the nighttime operating hours for your lights. Ensure that the installation
location is away from other nighttime light sources such as street or porch lamps.
These light sources may prevent your solar lights from automatically turning on.
HOW SOLAR WORKS
The solar panel converts sunlight into electricity. During the day, the converted electricity is stored in the rechargeable battery. At night, the solar lights are powered
by the battery using the electricity stored during the day. The operating time depends on geographical location, daily weather conditions, and season. For optimal
performance during the evening, allow the battery to charge for 6 to 7 hours in direct sunlight.
Assembly and Installation
1
Preparing for installation
□
FOR FIRST TIME USE: Open the battery cover (6) of the solar panel
head (D) to remove the pull tab (1) (first time use only).This will allow
the battery to make a connection and become active.
6
D
□
Connect the post (B) to the light head (A) by twisting clockwise until
it is tight, then insert the stake (C) into the bottom of the post (B).
Repeat for both lights.
□
Firmly slide the solar panel post (E) to the solar panel head (D), then
attach the solar panel stake (F) to the assembly.
A
B
C
Use and Care Guide

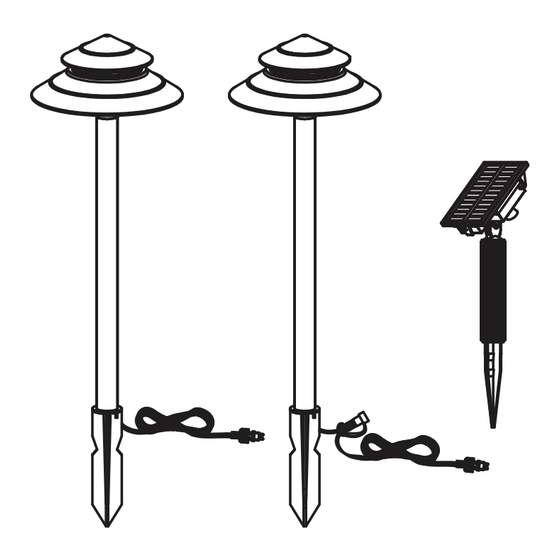

Solar Path Light
A
B C
1
D
E
F
D E
Part
A
B
C
D
E
F
G 600 mAh LiFePO4, 18500 rechargeable
battery (pre-installed)
2
Install the solar path lights into the ground
NOTE: Do not use a hammer. If the ground is hard, use water to soften or a
trowel to loosen the soil.
□
Remove the rubber cover (4) on the female light connector (3), insert the
male plug (2) from the other light into the connector (3), then twist the
ribbed connector nut (5) clockwise until it is tight.
□
Repeat the previous step to connect the other male plug (2) to the
underside of the solar panel head (D).
□
Insert the assemblies firmly into the ground.
5
2
1
Please contact
Item #xxxx xxx xxx
Model #29402
F G
Description
Light head
Post
Stake
Solar panel head
Solar panel post
Solar panel stake
3
4
D
HAMPTONBAY.COM
for further assistance.
1-855-HD-HAMPTON
Quantity
2
2
2
1
1
1
1
