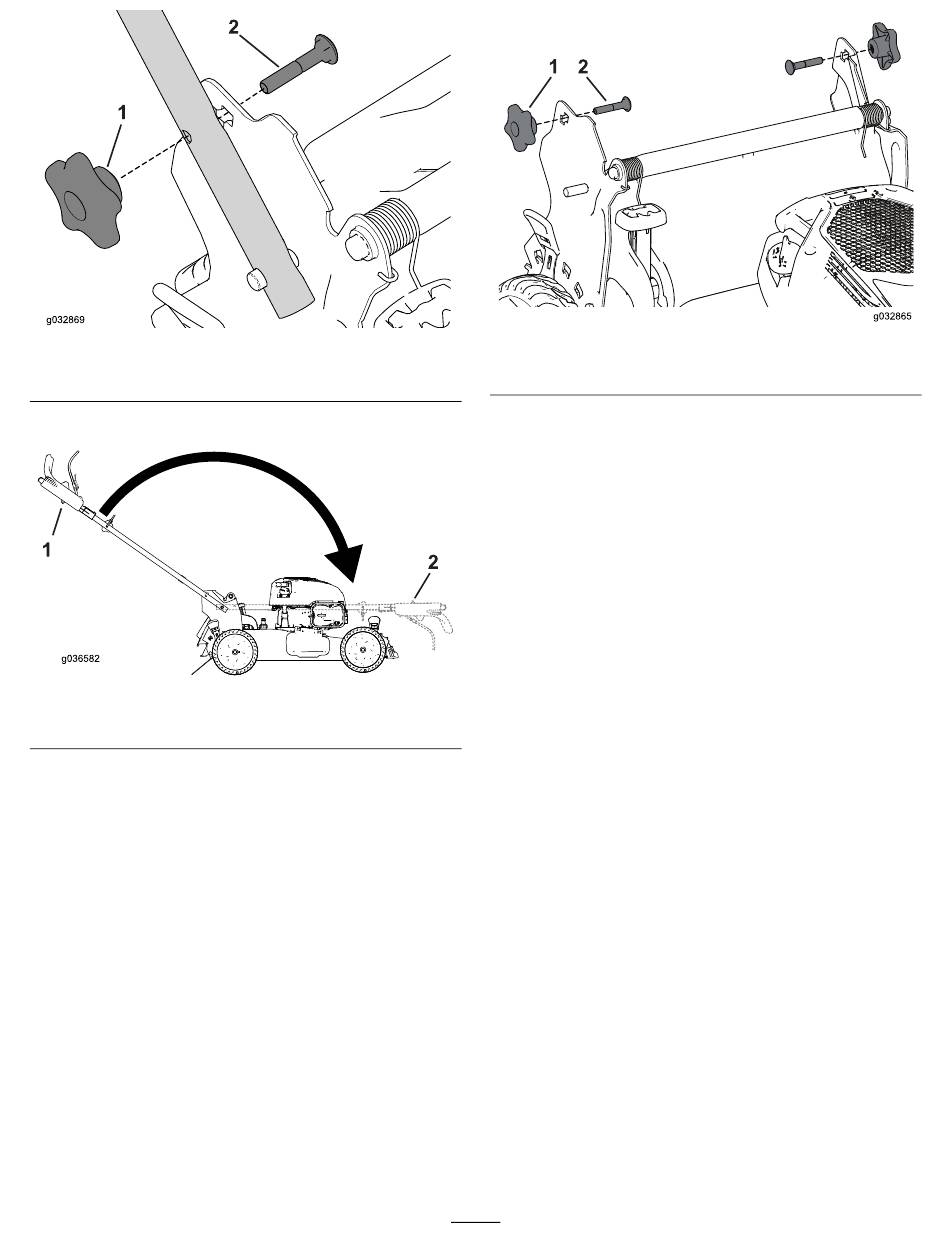

Figure 28
1. Handle knob
2. Fold the handle by rotating it forward
Figure 29
1. Operating position
3. Insert the carriage bolt (with the bolt head toward the
inside) through the handle bracket and the upper hole
in the handle end. Ensure that the square edges of each
carriage bolt fits into the upper or lower square hole in
its related handle bracket
2. Carriage bolt
(Figure 29).
2. Folded position
(Figure 30).
1. Handle knob
4. Loosely install the handle knobs and carriage bolts on
the handle brackets.
5. To unfold the handle, refer to
Unfolding the Handle (page
15
Figure 30
2. Carriage bolt
2 Assembling and
4).
