Contents of Carton
1 - Air Compressor
1 - Parts bag containing:
1 - Operator's Manual
1 - Parts Manual
4 - 5/8" Washers
Tools Required for Assembly
1 - 9/16" socket or open end wrench
Electric drill
Unpacking
1.
Remove all packaging.
HOW TO SET UP YOUR UNIT
Location of the Air Compressor
•
Locate the air compressor in a
clean, dry, and well ventilated
area.
•
Located the air compressor at
least 12" away from the wall
or other obstructions that will
interfere with the flow of air.
•
Locate the air compressor as
close to the main power supply
as possible to avoid using long
lengths of electrical wiring.
NOTE: Long lengths of electrical
wiring could cause power loss to
the motor.
•
The air filter must be kept
clear of obstructions which
could reduce air flow to the air
compressor.
Anchoring of the Air
Compressor
Risk of Unsafe
Bursting. Excessive
Vibration can weaken the air tank
and cause an explosion. The
compressor must be properly
mounted.
A13568
All manuals and user guides at all-guides.com
ASSEMBLY
may be necessary to brace or
support one side of the unit when
removing the pallet because the air
compressor will have a tendency
to tip.
2.
Remove and discard the (4)
screws and washers holding the
compressor to the pallet.
3.
With the help of another person
carefully remove air compressor
from pallet and place on a level
surface.

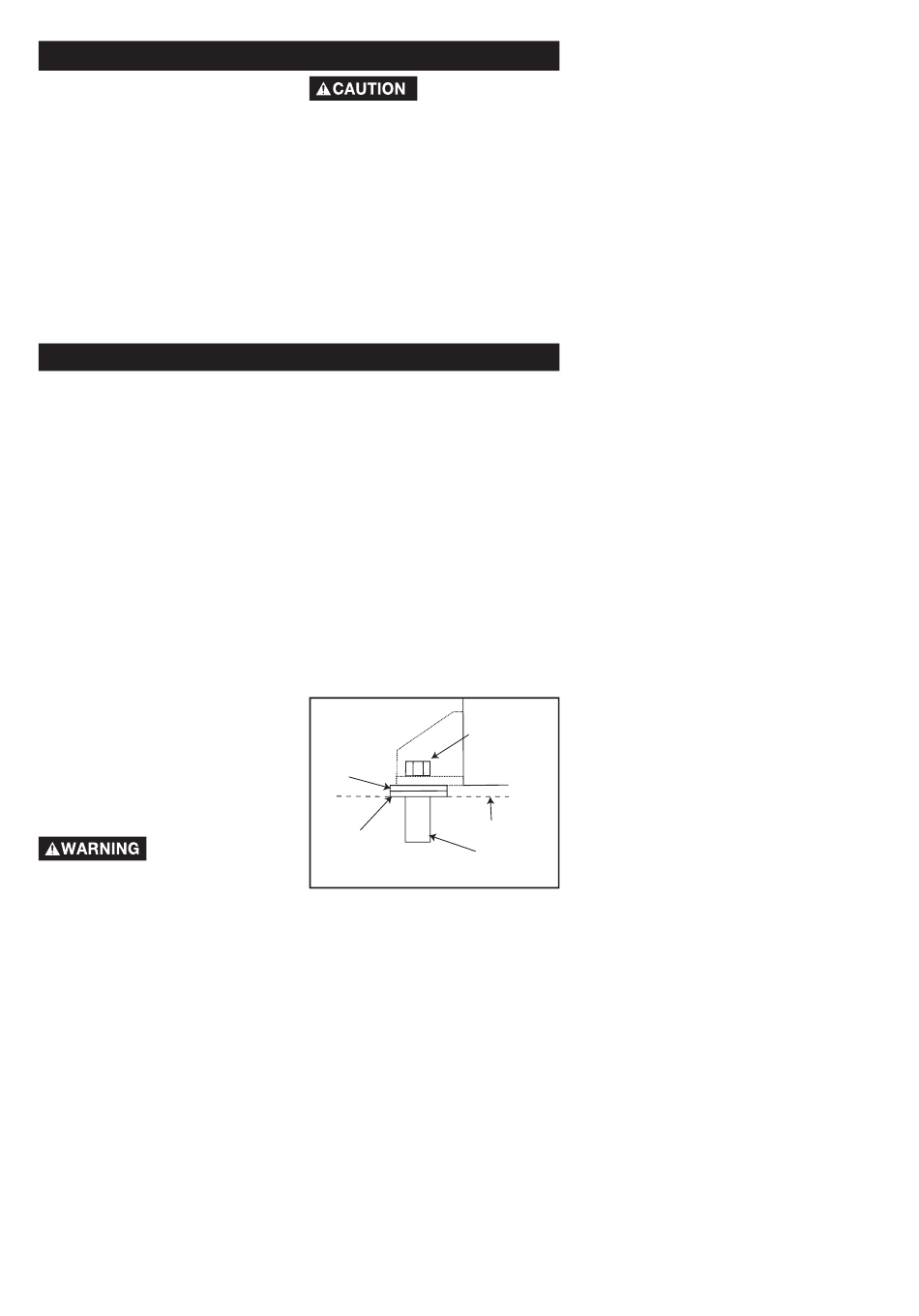

INSTALLATION
The air compressor MUST be bolted
to a solid, level surface.
Hardware needed:
4 - Concrete anchors
4 - 3/8" Lag screw to fit
concrete anchors (not
supplied)
4 - 5/8" Washer (found in parts
bag) shims (if needed)
1.
Place the air compressor on on a
solid, level surface.
2.
Mark the surface using the holes
in the air compressor feet as a
template.
3.
Drill holes in the surface for
the concrete anchors. Install
concrete anchors.
5/8" Washer
(supplied)
Shim Under
Washer
(not supplied)
4.
Line-up holes in surface with
holes in air compressor feet.
10- ENG
Risk of Unsafe
Opertation. It
3/8" Lag
Screw
(not supplied)
Surface Line
Concrete Anchor
(not supplied)
