HIKVISION DS-PWA32-HR Guia De Inicio Rapido

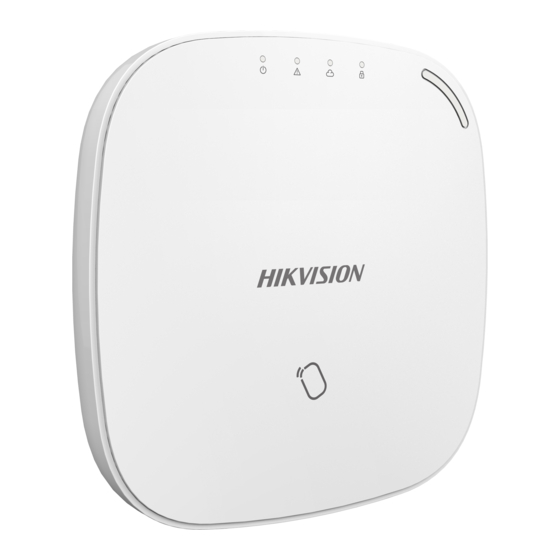

DS-PWA32-HR
Wireless Security Control Panel UD11754B
E N G L I S H
Diagram References
Appearance
1
Power On 2 SIM Card Slot
2 4 Arm Armed 6
2 1 AC Power
/Disarm Disarmed
Power Off
2 7 Tamper Spring
System Fault 2
8
2 2 Fault 2 Alarm Occurred
5
Alarm
No Fault Device Tampered 2 9
AP&STA Switch
No Alarm 10 2
Panel is added to
2 3 Link
11 2
Hik-connect account Network Interface
12 2
Panel is not added to Power Interface
Hik-connect account
Note: Remove the rear cover, and some of the components and interfaces are on the rear panel.
2
1. Loosen the screw on the rear cover. Slide down the rear cover and remove it from the
control panel.
2. Insert a SIM card into the SIM card slot.
4. Connect the power adapter to the control panel and a power outlet. The power indicator
turns green about 30s later, which means that the device is powered on.
5. Connect the Ethernet cable to an internet outlet. While the device is added to a Hik-Connect
account, the link indicator turns green.
Side Opening
opening.
TAMPER Screw
It is compulsory to secure the TAMPER screw.
3 Set Up
Set up via APP
1. Log into the App Store or Google Play and input Hik-Connect to search and install the
mobile client.
2. Log into the APP with Hi-Connect account.
3. Tap Add Device. Scan the device QR code on the rear panel(on the lable).
6. Tap Connect to Wi-Fi on the promt-up window. Select and connect to a stable Wi-Fi , and
click Next.
Set up via Web Client
Log Into the Web Client
Default IP Address when using mobile broswer in the AP mode:192.168.8.1. The device must be in the AP mode.
Input the device IP address in the address bar of the web browser. Create a password to
Add a Camera for the Zone
1. Click System-Network Camera, and you can add two cameras for the control panel.
with the zone.
You can also link a camera with the zone via APP, refer to the Wireless Security Control Panel
User Manual for details.
Configure Video-Push
You can view the alarm video via APP and email.
Control Panel User Manual.
Set up via 4200 Client
1. Download and install the iVMS-4200 client.
2. Enter Device Management page, select the device in the Online Device List, click Edit
4
Note: Add card or keyfob via the web client before adding peripheral device for clearing tampering alarm.
Add Peripheral Device
side of the control panel once and trigger a peripheral device.
Check RF Signal
and you can check the RF signal strength on the peripheral device .
Specification
Alarm Input 32
Alarm Output 32
Wireless Device
Siren 2
Connec on
Keyfob 8
Par on 1
Interac on Audio Output 1, 1.5W
RF Frequency 433MHz
RF RF Modula on 2GFSK
RF Distance 800m（Open Area）
Wired Network Ethernet 10M/100M Self-adap ve
Supports report push-no fica on to ARC & Cloud, text
Cellular Network GPRS, 3/4G
no fica on via SMS, and audio no fica on via phone call
Standard 802.11b/g/n
Wi-Fi Encryp on Supported
Channel 2.4G
Applica on & Applica on iVMS-4200, and mobile APP
Protocol Protocol SIA - Contact ID
IC Card 12
User
User 13 (1 Installer, 1 Administrator, and 11 General User)
Power 5 VDC，10W
Consump on (without HDD) <5.6W
Opera on Temperature –10℃ to 55℃
Others
Opera on Humidity 10% to 90%
Shell Material PC+ABS
Dimension(WxHxD) 155 x155x35mm
DS-PD2-P10P-W
Wireless 10m Pet Immune PIR Detector EN50131-2-2:2008
EN50131-1:2006+A1:2009
Environmental Class (EC) II
Security Grade (SG) 2
E N G L I S H
Diagram References
1 Wireless device control
2
Add Locally
Note: The distance between the security control panel and the detector
should be less than 50 cm.
3 (Check Signal Strength Before
4
Bracket Wiring
Specification
Detec on Range 10m
Detec on Angle 85°
Lens characteris cs Detec on Zones 56 zones and 6 planes
Detec on Speed 0.3–3.0 m/s
Moun ng Height 1.8-2.4m
Animal Immunity 24kg
Blue Wave Technology Supported
Digital Temperature
Supported
Key features
Compensa on
Front, rear, and bracket tamper
Tamper Protec on
signal input
Signal Strength Indicators (SSI) Supported
Frequency 433MHz
Wireless Modula on 2GFSK
Range in open space 800m
3V lithium ba ery included 1x CR123A
Electrical specifica ons
General ba ery life (years) 2
Opera ng | storage -10°C to +40°C (Cer fied)
Other details Weight 125g
Dimensions(H x W x D) 117 x 69 x 50mm
Ceiling Mounted Bracket Supported
Accessories
Wall Mounted Bracket Included Supported
Battery Information
This product and - if applicable - the supplied accessories too are
marked with "CE" and comply therefore with the applicable harmonized
European standards listed und
EU.
For electrical products sold within the European
Community. At the end of the electrical products
life, it should not be disposed of with household
with your local Authority or retailer for recycling
advice in your country.
