FIAP Aqua Active Magic

Electrical connection

The electrical connection has to be done by an authorized professional under the directives of the EVU
and VDE. All installations of the pump have to be done by the VDE 0100 part 702. For all power data
see specification plate. Disconnect all power when working on this device!
Starting up
Attention! Never use the device without filter-basket or filter-sieve and without water running
through it!

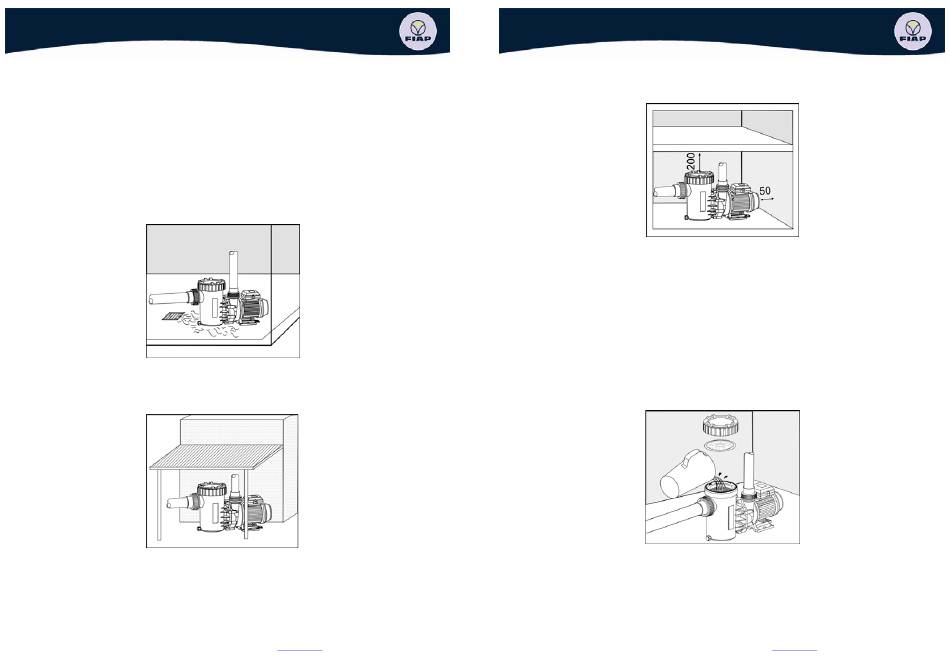

The device has a motor with protection category IP X4. The site of the pump must be dry and well
ventilated. The pump should be installed in a closed space; a water drain must be present. The size of
the floor drain depends mainly on the size of the pool, the circulation flow rate but also about the
possibility of possible leaks in the pool water circulating system. The ambient temperature must not
exceed 40 ° C.
If is installed outside always use a protection against rain, which will extend the lifetime of your device.
In a closed room, like a basement, you have to install a drain for the water. In a room with a high
humidity you have to take care for an effective air-circulation to prevent condensation. In a small room,
with little natural air-cooling, an additional aeration and deaeration is necessary to avoid a higher
ambient temperature than +40 °C. Make sure that structure-borne sound or airborne-sound of the
Technische Änderungen vorbehalten. Für Druckfehler übernehmen wir keine Haftung. WEEE-Reg. Nr.: DE78152045
FIAP GmbH, Jakob Oswald Str. 16, 92289 Ursensollen
Tel: 09628 9213 0; Fax: 09628 9213 30;
9
www.fiap.com
FIAP Aqua Active Magic
device will not illegally influence the environment. During installation make sure that you have enough
space for dismounting the motor-unit, at least 50 mm towards the motor-ventilator, and at least 200
mm upwards for the suction-sieve.
To mount the device in the fundament use only screws, threads and dowels to allow a dismounting of
the motor. Suction and pressure hoses have to be mounted with zero potential on the pump case.
Mechanical and hydraulic functions
The device must be set up horizontal and at a dry place. The pump can be mounted either under the
water level (inlet-function max. 2m) or above it (suction-function). The suction-height between water
level and pump (geodetic height) must be not higher than 2 m. To long or to small pipes will reduce the
suction-height because of the flow resistance extremely.
Make sure that the suction hose is tight. There is no or only low suction-capacity of the pump if
pipes are not tight.
Also the clear lid has to be screwed on tight. To reduce the suction period, which depends on the
volume of the air in the suction hose, the suction hose has to be as short as possible. The suction hose
should lay under the water level.
Loosen the threaded ring above the suction-sieve by turning and lift the clear lid off. Fill the pump
slowly with clean water up to the suction connection.
First make sure that the rounded gasket is inside of the clear lid, set the clear lid on and secure it with
the pinch screws. Otherwise the device will not draw with its full power. After a longer period of
downtime or storage check that the wheel is running lightly. Turn the device on and make sure that the
gaskets are tight.
Technische Änderungen vorbehalten. Für Druckfehler übernehmen wir keine Haftung. WEEE-Reg. Nr.: DE78152045
FIAP GmbH, Jakob Oswald Str. 16, 92289 Ursensollen
Tel: 09628 9213 0; Fax: 09628 9213 30;
10
www.fiap.com
