READ ME FIRST:
Thank you for purchasing a Front Runner Slimline II Load Bed Rack or Load Bar Kit.
Your Kit will contain the following items:
1.) A Slimline II Tray or Load Bar set
2.) Universal Load Bed Tracks

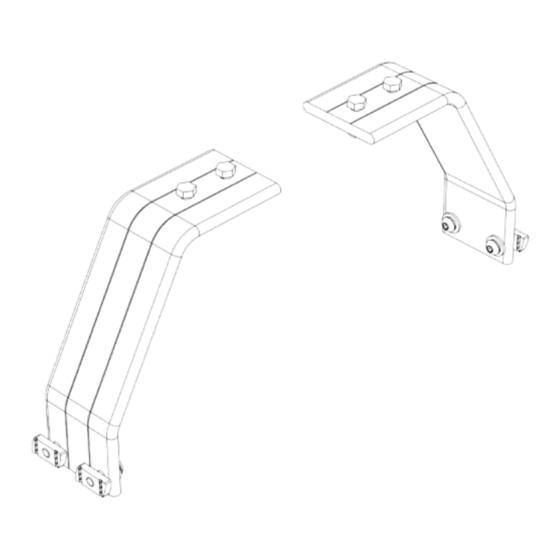

3.) Universal Load Bed Legs
This document will help you fit the Slimeline II Tray or Load Bars to your specific vehicle. If you are mounting
a Slimline II Tray, Please continue with Section 1. If you are fitting Load Bars, please refer to Section 2.
installation of slimline ii tray
Note: If you have not fitted the Universal Load Bed Tracks or Legs, fit them as per the Universal Load Bed
Track and Universal Load Bed Led Fitting Instructions (Documents TRBU001 & LASS026).
If your Slimline II Tray is not already assembled, assemble it as per the Slimline II Tray Universal
Assembly Instruction (Document RRSTUNI).
Adjust the two leg assemblies either side of the Midpoint of the Track so that they are 884 mm
A
(
)
apart-outside to outside as shown below.
B
(
)
With your Rack in the upside down position ( Product
Sticker should be upside down ) and working with the
second Slat in, both front and rear, slide two M8 x 25 Hex
Bolts supplied with the Universal Load Bed Legs into
each end of the Slat using the machined Slots as shown.
REV_A00
Universal LOAD BED
TRAY & Load BArs
1
KRLBUNI
INSTALL TIME: 15 mins

Publicidad

Tabla de contenido
loading

Resumen de contenidos para Front Runner LASS026

  • Página 1 TRAY & Load BArs KRLBUNI READ ME FIRST: Thank you for purchasing a Front Runner Slimline II Load Bed Rack or Load Bar Kit. Your Kit will contain the following items: 1.) A Slimline II Tray or Load Bar set 2.) Universal Load Bed Tracks...
  • Página 2 Note: If you have not fitted the Universal Load Bed Tracks or Legs, please fit them as per the Universal Load Bed Track and Universal Load Bed Led Fitting Instructions (Documents TRBU001 & LASS026). Slide two M8 x 25 Hex Bolts supplied with the Universal Load Bed Legs into each end of the Load Bars using the machined slots as shown.
  • Página 3: Important Warning

    TO YOUR VEHICLE. CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND DAMAGE. THEREFORE YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.
  • Página 4: Tools Needed

    M8 Spring Washer 13mm M8 x 19 x 2SS Flat Washer M8 Channel Nut M8 Nut Cap M8 Nyloc Nut M8 x 16 x 1.6SS Flat Washer M8 x 25 Hex Bolt FIGURE 1.1 LASS026_REV_A01 © COPYRIGHT 2017 FRONT RUNNER VEHICLE OUTFITTERS...
  • Página 5 The M8 Channel Nut will rotate at an angle in the Track when fastening. 13mm The remaining fasteners will be used when mounting your Load Bars or Tray to the Universal Load Bed Legs. 13mm LASS026_REV_A01 © COPYRIGHT 2017 FRONT RUNNER VEHICLE OUTFITTERS...
  • Página 6 Congratulations! You did it. Take a step back and admire your work! Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions. Please call us if you have any questions about the installation of this product.
  • Página 7 FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL. NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.
  • Página 8 M8 x45 Button Head Bolt Thick Joiner Piece Thin Joiner Piece Side Profile Corner Combined Slat 28 X M8 x 25 Button Head Bolt 12 X Standard Slat M6 x 10 Button Head Bolt FIGURE 1.1 RRSTUNI_REV_A04 © 2019 FRONT RUNNER VEHICLE OUTFITTERS...
  • Página 9 Slide the matching Side Profile over the two Joiner pieces, remembering to insert a Nyloc Nut, and fasten once again using a M8 x 45 Button Head Bolt. Repeat the above steps for the other side. RRSTUNI_REV_A04 © 2019 FRONT RUNNER VEHICLE OUTFITTERS...
  • Página 10 The end hole of the Side Profile should align with the hole in the Combined Slat. Use a M8 x 25 Button Head (item 8) and loosely tighten using a 5mm Allen Wrench. RRSTUNI_REV_A04 © 2019 FRONT RUNNER VEHICLE OUTFITTERS...
  • Página 11 RACK ASSEMBLY - FASTEN BOLTS Using your 5mm Allen Wrench, tighten all the Button Head Bolts. The recommended torque setting for the M8 Button Head Bolts is 20 Nm or 15 ft lb. RRSTUNI_REV_A04 © 2019 FRONT RUNNER VEHICLE OUTFITTERS...
  • Página 12 Corner in position. RACK ASSEMBLY - WIND DEFLECTOR IN THE BOX TOOLS NEEDED Slimline II Tray M8 Half Nut Wind Deflector (1LH + 1RH) Schnorr Washer M8 x 12 Button Head Bolt FIGURE 1.2 RRSTUNI_REV_A04 © 2019 FRONT RUNNER VEHICLE OUTFITTERS...
  • Página 13 Slide them to the center of the Combined Slat making sure that the Schnorr Washer is above the T-slot Channel. Assemble Items 2, 4 & 5 to both LH & RH Wind Deflectors (Item 3) as shown. RRSTUNI_REV_A04 © 2019 FRONT RUNNER VEHICLE OUTFITTERS...
  • Página 14 NOTE : Once the rack is fitted to the vehicle, take it for a test drive. Should there be excessive wind noise try moving the two Wind Deflectors slightly apart, leaving a gap of about 20 - 30mm. RRSTUNI_REV_A04 © 2019 FRONT RUNNER VEHICLE OUTFITTERS...
  • Página 15 It's easy! Take care of your Front Runner gear the same way you do the exterior of your vehicle: Rinse with clean water and wipe down with a soft dry cloth. For stubborn spots, use a soft brush and mild soap.
  • Página 16 BEFESTIGUNGEN VOR EINER VERWENDUNG REGELMÄßIG AUF EINSTELLUNG, ABNUTZUNG ODER SCHÄDEN ZU PRÜFEN. LIES DAHER UNBEDINGT VOR DER MONTAGE ODER DER VERWENDUNG ALLE MIT DEINEM FRONT RUNNER PRODUKT GELIEFERTEN ANWEISUNGEN UND HINWEISE. FALLS DU NICHT ALLE ANWEISUNGEN ODER HINWEISE VERSTEHST ODER DU KEINE TECHNISCHE ERFAHRUNG BESITZT UND MIT DEM ZUSAMENBAUEN NICHT VERTRAUT BIST, SOLLTEST DU DAS PRODUKT VON TECHNISCHEM FACHPERSONAL ODER EINER ANDERWEITIG QUALIFIZIERTEN PERSON VERBAUEN LASSEN.
  • Página 17 32 X M8 Selbstsichernde Mutter M8 x 45 Rundkopfschraube Dickes Verbindungsstück 4 MM 5 MM Dünnes Verbindungsstück Seitenprofil Eckstück Kombileiste 28 X M8 x 25 Rundkopfschraube 12 X Querleiste M6 x 10 Rundkopfschraube ABBILDUNG 1.1 RRSTUNI_REV_A04 © 2019 FRONT RUNNER OUTFITTERS...
  • Página 18 Schiebe das zugehörige Seitenprofil über die zwei Verbindungsstücke und denk daran, eine selbstsichernde Mutter einzusetzen. Befestige auch diese Verbindung mit einer m8 x 45 Rundkopfschraube. Wiederhole die oben beschriebenen Schritte für die andere Seite. RRSTUNI_REV_A04 © 2019 FRONT RUNNER OUTFITTERS...
  • Página 19 5 MM Kombileiste sein. Verwende eine M8 x 25 Rundkopfschraube (Teil 8) und ziehe sie mit einem 5 mm-Innensechskantschlüssel fest. Die Plattform bleibt mit der Unterseite nach oben gedreht, für die Montage der 7 Querleisten. RRSTUNI_REV_A04 © 2019 FRONT RUNNER OUTFITTERS...
  • Página 20 Schau Dir nochmal Schritt 3.1 an - Schiebe danach die zweite Kombileiste in die zwei Seitenprofile und befestige sie, wie in Schritt 3.2 beschrieben. FESTZIEHEN ALLER SCHRAUBEN Ziehe mit Deinem 5 mm-Innensechskantschlüssel alle Rundkopfschrauben fest. Das empfohlene Drehmoment für die M8 Rundkopfschrauben ist 20 Nm oder 15 ftlb. RRSTUNI_REV_A04 © 2019 FRONT RUNNER OUTFITTERS...
  • Página 21 Vergewissere Dich in der jeweiligen Montageanleitung, ob das der Fall ist. MONTAGE DES WINDABWEISERS INHALT DU BENÖTIGST Slimline II Dachträger M8 Halbmutter Windabweiser (1L + 1R) 5 MM Unterlegscheibe M8 x 12 Rundkopfschraube ABBILDUNG 1.2 RRSTUNI_REV_A04 © 2019 FRONT RUNNER OUTFITTERS...
  • Página 22 (Teil 2, 4 & 5) wie dargestellt in die Kombileiste. Schiebe sie bis zur Mitte der Kombileiste, wobei Du sicherstellen musst, dass die Unterlegscheibe über der T-Nut sitzt. Montiere Teil 2, 4 & 5 wie abgebildet an beiden Windabweisern. RRSTUNI_REV_A04 © 2019 FRONT RUNNER OUTFITTERS...
  • Página 23 HINWEIS: Sobald Du den Dachträger an Deinem Fahrzeug montiert hast, mach eine Probefahrt. Solltest Du laute Windgeräusche festellen, versuche die Position der Windabweiser leicht zu verändern, indem Du sie 20 - 30 mm auseinander ziehst. RRSTUNI_REV_A04 © 2019 FRONT RUNNER OUTFITTERS...
  • Página 24 Im salzigen Küstenklima oder verschneiten Regionen, in denen Streusalz auf den Straßen genutzt wird, verwende auf Silikonbasis beschaffenes Öl oder Spray, um die Muttern und Schrauben dauerhaft vor Korrosion zu schützen. HOL DIR NOCH MEHR AUSRÜSTUNG VON FRONT RUNNER Besuche uns Online auf www.FrontRunnerOutfitters.com Markiere uns immer und überall! #FrontRunnerOutfitters #BornToRoam...
  • Página 25: Advertencia Importante

    LOS PRODUCTOS PARA SU AJUSTE, DESGASTE Y DAÑOS. POR LO TANTO, DEBE LEER Y COMPRENDER TODAS LAS INSTRUCCIONES Y PRECAUCIONES SUMINISTRADAS CON SU PRODUCTO FRONT RUNNER ANTES DE LA INSTALACIÓN O EL USO. SI USTED NO ENTIENDE TODAS LAS INSTRUCCIONES Y PRECAUCIONES, O SI NO TIENE EXPERIENCIA MECÁNICA Y NO ESTÁ...
  • Página 26: Herramientas Necesarias

    Pieza de ensamble gruesa Pieza de ensamble delgada Perfil lateral Esquina Barra combinada 28 X M8 x 25 Tornillo cabeza de botón 12 X Barra estándar M6 x 10 Tornillo cabeza de botón FIGURA 1.1 RRSTUNI_REV_A04 © 2019 FRONT RUNNER VEHICLE OUTFITTERS...
  • Página 27: Montaje De Baca - Perfiles Laterales

    Deslice el perfil lateral coincidente sobre las dos piezas de ensamble, recordando insertar una tuerca nyloc, y apriete una vez más usando un tornillo cabeza de botón M8 x 45. Repite los pasos anteriores para el otro lado. RRSTUNI_REV_A04 © 2019 FRONT RUNNER VEHICLE OUTFITTERS...
  • Página 28: Montaje De Baca - Barras Combinadas

    El orificio final del perfil lateral debe alinearse con el orificio en la barra combinada. Utilice un cabeza de botón M8 x 25 (artículo 8) y apriete ligeramente con una llave Allen de 5mm. RRSTUNI_REV_A04 © 2019 FRONT RUNNER VEHICLE OUTFITTERS...
  • Página 29: Montaje De Baca - Barras Estándar

    Con su llave Allen de 5mm, apriete todos los tornillos cabeza de botón. El ajuste de par recomendado para los tornillos cabeza de botón M8 es de 20 Nm o 15 ft lb. © 2019 FRONT RUNNER VEHICLE OUTFITTERS RRSTUNI_REV_A04...
  • Página 30: Montaje De Baca - Deflector De Viento

    Schnorr está por encima del canal ranura en T. Ensamble los elementos 2, 4 y 5 a ambos deflectores de viento LH & RH (artículo 3) como se muestra. RRSTUNI_REV_A04 © 2019 FRONT RUNNER VEHICLE OUTFITTERS...
  • Página 31: Montaje De Baca -Esquinas

    MONTAJE DE BACA - DEFLECTOR DE VIENTO EN LA CAJA HERRAMIENTAS NECESARIAS Baca portaequipaje Slimline II M8 Tornillo medio Deflector de viento (1LH + 1RH) Arandela de seguridad Schnorr M8 x 12 Tornillo cabeza de botón FIGURA 1.2 RRSTUNI_REV_A04 © 2019 FRONT RUNNER VEHICLE OUTFITTERS...
  • Página 32 Nota: Una vez que el bastidor está montado en el vehículo, se recomienda hacer una prueba de manejo. En el supuesto de que haya ruido excesivo del viento intente mover los dos deflectores ligeramente separados, dejando un hueco de unos 20-30mm. © 2019 FRONT RUNNER VEHICLE OUTFITTERS RRSTUNI_REV_A04...
  • Página 33: Consulte La Guía De Instalación De Su Vehículo

    ¡Es fácil! Cuida tu equipo Front Runner de la misma manera que haces con el exterior de tu vehículo: Enjuague con agua limpia y limpie con un paño suave y seco. Para manchas persistentes, usa un cepillo suave y un jabón suave.
  • Página 34 TRBU001 / KRLBUNI1 INSTALL TIME: 2.5 Hours READ ME FIRST: Thank you for purchasing a Front Runner Slimline II Load Bed Rack or Load Bar Kit. Your Kit will contain the following items: 1.) A Slimline II Tray or Load Bar Set 2.) Universal Load Bed Tracks...
  • Página 35 INSTALL LOAD BED TRACKS Looking inside the load bin of the vehicle, measure the length of the load bin from the back of the cabin below the rear window to the start of the tail gate. Using a marking Mark Midpoint of pen, mark the midpoint.
  • Página 36 Note: If you have not fitted the Universal Load Bed Legs, You will need: fit them according to the Universal Load Bed Leg Fitting 13 mm Flat or Socket Wrench Instruction - Document LASS026. Measuring tape Friend If your Slimline II Tray is not already assembled, assemble it as per the Slimline II Tray Universal Assembly Instruction - Document RRSTUNI.
  • Página 37 installation of slimline ii tray cont... Slide an End Cap (Item 3) into the ends of Track and secure in position using the M3 x 6 Self Tapping Screw (Item 1). Grab your friend and with one of you on each side of the Rack, flip it end over end so that the bolts are facing down.
  • Página 38 Note: If you have not fitted the Universal Load Bed Tracks or Legs, please fit them as per the Universal Load Bed Track and Universal Load Bed Led Fitting Instructions (Documents TRBU001 & LASS026). Slide an End Cap (Item 3) into the ends of Track and secure in position using the M3 x 6 Self Tapping Screw (Item 1).
  • Página 39 M8 Nyloc Nuts. Congratulations, you have completed your installation. Take a step back and admire your work. Good Job! INSTALL OTHER VEHICLE AND RACK ACCESSORIES Now's the time to visit your favorite Front Runner dealer in person or online. TRBU001 / KRLBUNI1_REV_A01...
