Chain Warnings:
Caution: It must be recognized that certain factors in the usage of chain and attachments can be
abusive and lessen the load that the chain or attachments can withstand. Some examples are twisting
of the chain, disfigurement, deterioration by straining, usage, weathering and corrosion, rapid applica-
tion of load or jerking applying excessive loads, and sharp corners cutting action.
Due to the crushing effect Grab Hooks have upon chain, the design factor of all assemblies must be
reduced by 20% for Grab Hook applications.
Use the following chart to determine when the chain must be replaced. Replacement of the
entire chain is necessary if any of the previous page problems are found or the maximum
dimensions on the charts that follow are reached.

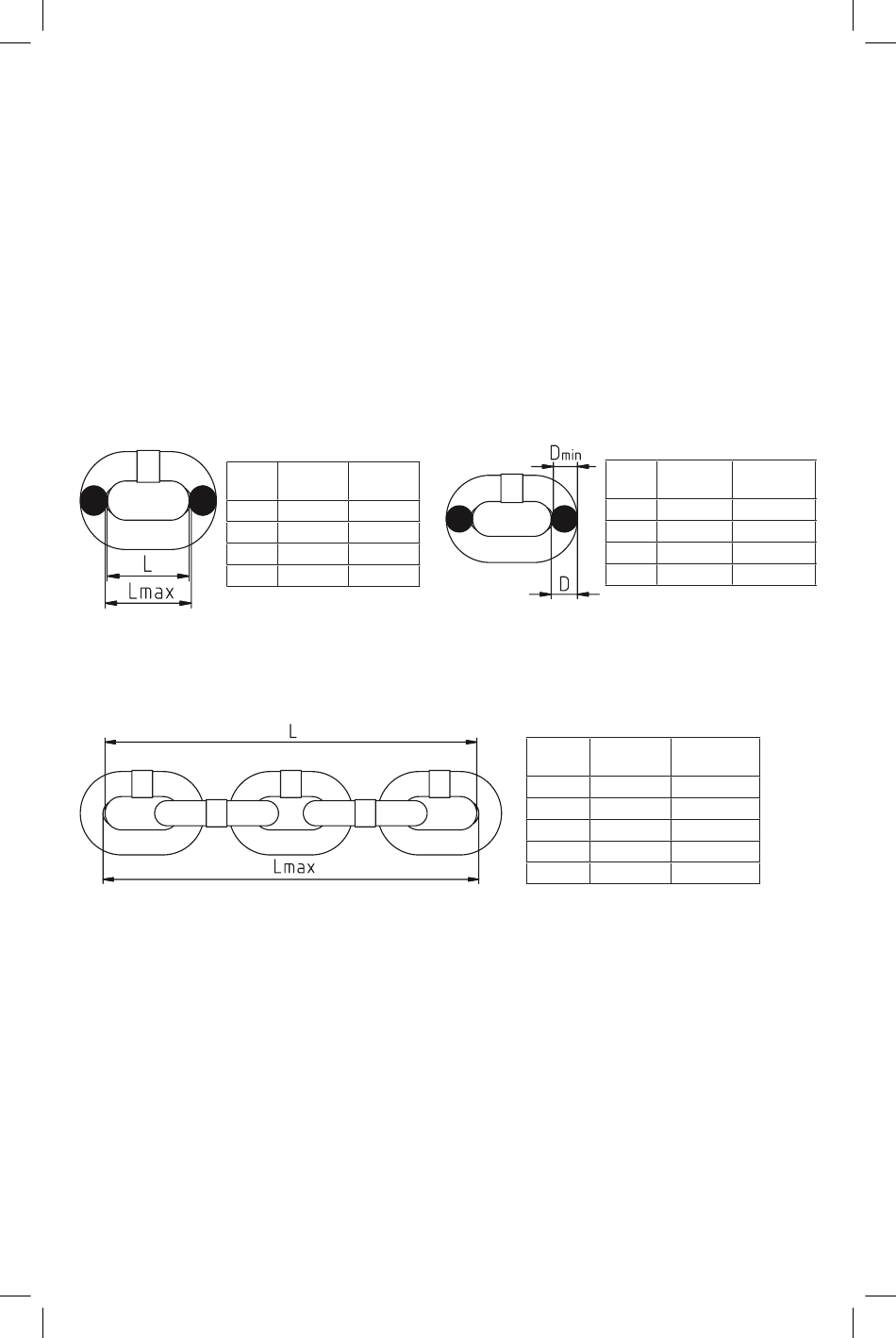

Load Chain - One link length
Dia
4mm
6mm
8mm
10mm
Load Chain - Five link length
Load Chain - Diameter
Standard L Max L
(mm) (in) (mm) (in)
12 (.47") 12.26 (.48")
18 (.74") 18.9 (.74")
24 (.94") 25.2 (.99")
30 (1.18") 31.5 (1.24")
EN pg.13
Dia Standard D
(mm) (in)
4mm 4 (.16")
6mm 6 (.23")
8mm 8 (.31")
10mm 10 (.39")
Dia Standard L Max L
(mm) (in) (mm) (in)
4mm 60 (2.36") 61.3 (2.41")
5mm 75 (2.95") 77.5 (3.05")
6mm 90 (3.54") 92.7 (3.64")
8mm 120 (4.72") 123.6 (4.86")
10mm 150 (5.90") 154.5 (6.08")
Min D
(mm) (in)
3.8 (.15")
5.4 (.21")
7.2 (.28")
9 (.35")
