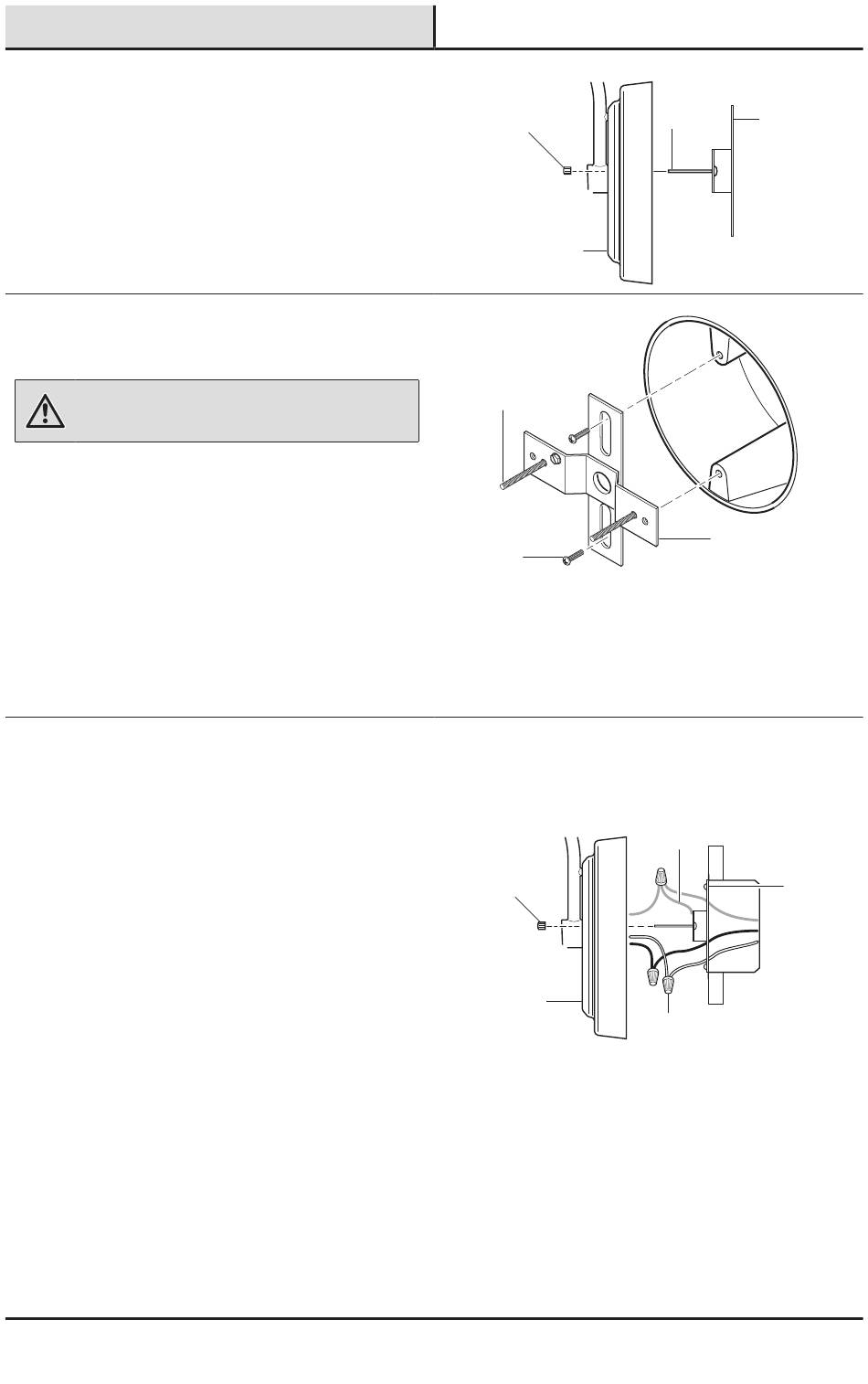

Installation

1
Removing the mounting
bracket
□
Remove the two decorative fixture nuts (CC)
from the light fixture (A).
□
Remove the mounting bracket (EE) from the
light fixture (A).
2
Installing the mounting bracket
WARNING: Turn the power off at the circuit breaker or
fuse. Place tape over the circuit breaker switch and verify
power is off at the light fixture.
□
Remove the existing light fixture.
□
Tighten the two large mounting screws (DD)
finger tight into the mounting bracket (EE).
□
Attach the mounting bracket (EE) to the
junction box (not included) securely with the
two mounting bracket screws (AA).
□
Firmly pull on the mounting bracket (EE) to
verify it is securely mounted to the junction
box. If necessary, use the screws that were
removed from the existing light fixture.
3
Wiring the light fixture
□
Connect the junction box wires to the wires on
the light fixture (A).
□
Using the wire connectors (BB):
□
Connect all white wires together.
□
Connect all black wires together.
□
Recommended grounding method: Attach
a copper wire pigtail (1) (not included) to
the green ground screw on the mounting
bracket (EE).
CC
A
DD
AA
□
Connect all ground wires to the pigtail
wire (1) attached to the green ground
screw.
CC
A
5 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
DD
EE
EE
1
EE
BB
