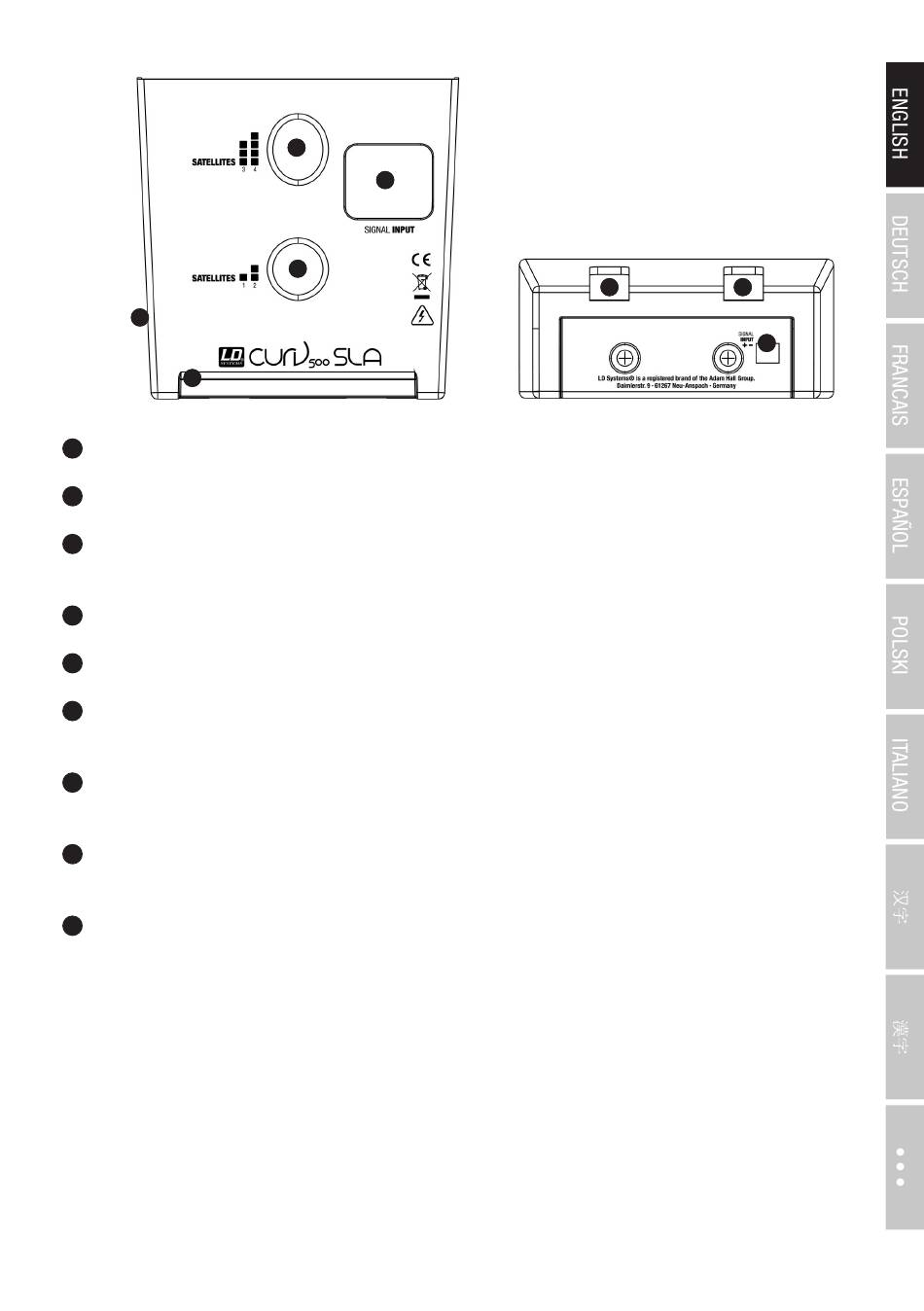

GUIDE RAIL LD CURV 500 SATELLITE
41
GROOVES SMARTLINK ADAPTER OR LD CURV 500 SATELLITE
®
42
M3 THREAD
M3 thread to secure the LD CURV 500
43
LOCKING SYSTEM
44
CONTACTS
45
SATELLITE 1 / 2
Flange for 1 to 2 satellites (upright position).
46
SATELLITE 3 / 4
Flange for 3 to 4 satellites (forward tilt position).
47
INPUT SIGNAL
Speakon-compatible speaker input. The speaker input INPUT SIGNAL (47) is parallel wired with the terminal block connector (48).
48
TERMINAL BLOCK CONNECTION
Terminal block connection for permanent installation and desktop application (terminal block included). The speaker input INPUT SIGNAL
(47) is parallel wired with the terminal block connector (48).
