IR WINDOW
1
Sends infrared signals to the transmitter for
frequency synchronisation.
POWER
2
On/Off switch and volume control.
ASC
3
Select the frequency for the transmission on the
receiver and then press the ASC-button to synchronise
transmitter and receiver. Align the IR window (infrared
interface) of the microphone with the IR window of the
receiver. (Synchronisation with Belt Pack Transmitter:
Press the "ASC" button on the transmitter and the
receiver in order to enable the synchronisation.)
MUTE LEVEL
4
Squelch setting on the receiver:
The squelch function is used for noise reduction, if the
transmitter is turned off or the receiver does not receive
a sufficiently strong signal from the transmitter.
The squelch value (mute level) of the receiver is
already correctly adjusted at the factory. Normally,
no further adjustment is required.
However, should a readjustment be necessary, set
the squelch value to a level that does not generate
any noise in the receiver when the transmitter is
switched off.
8
7 7 6 5

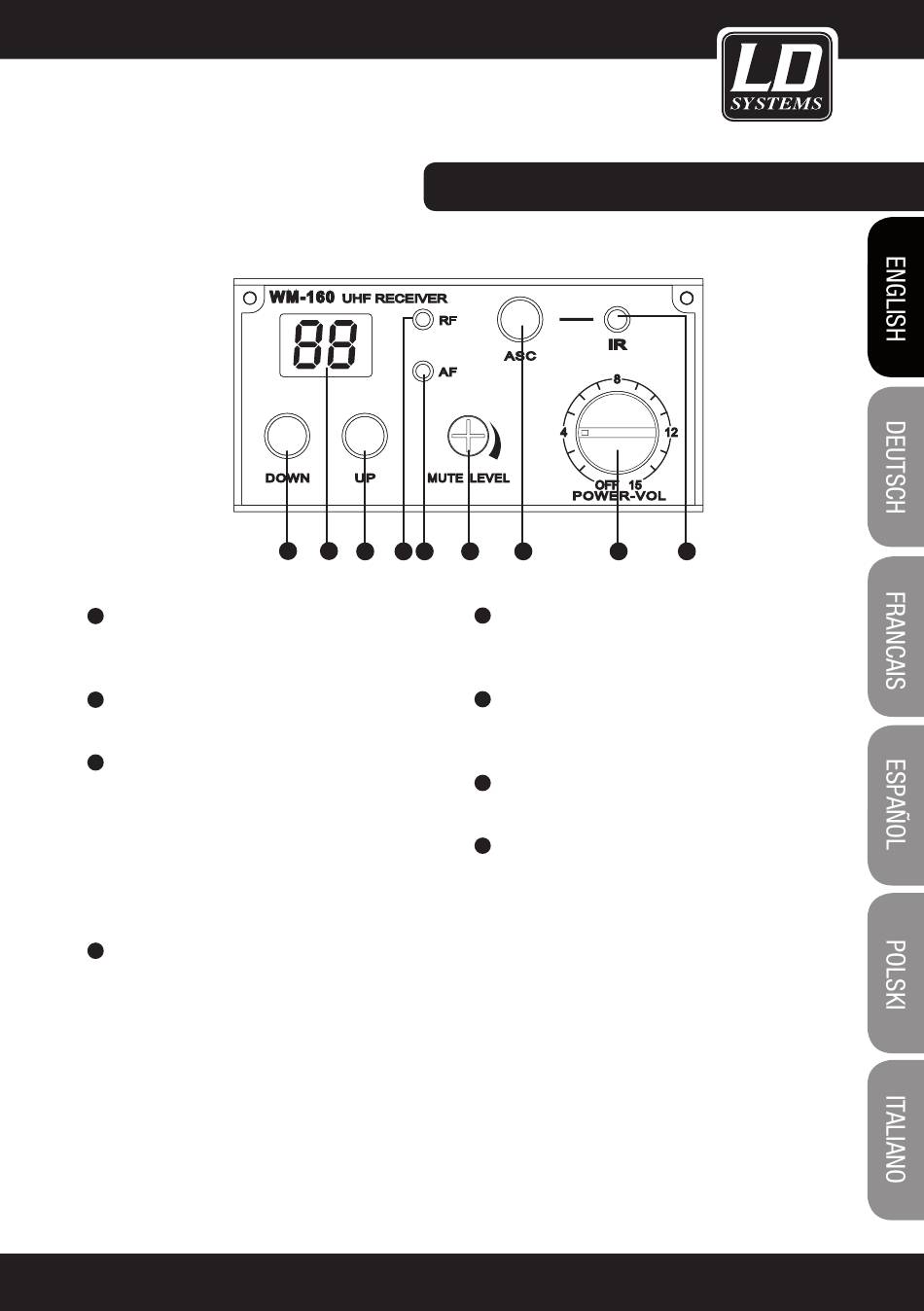

RADIO RECEIVER MODULE:
4 3 2
AF LED
5
Indicates whether or not the module receives an
audio signal.
RF LED
6
Indicates whether or not the module receives a
radio frequency signal (RF signal).
UP/DOWN
7
Select channel 1 - 16

LED DISPLAY

8
Channel number display
