Connecting the monitor to a computer

Digital connection

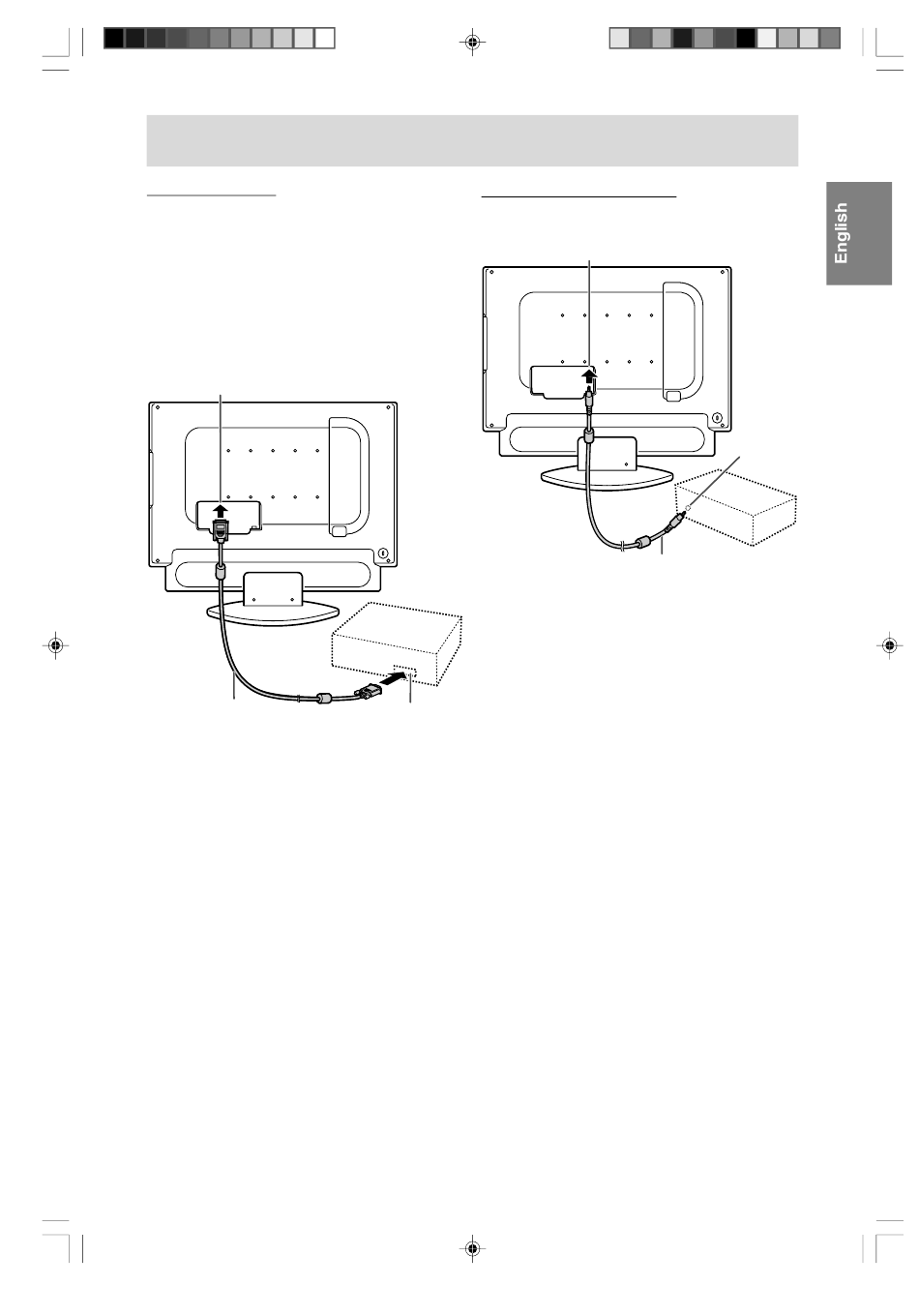

Connect the separately-sold digital signal cable
(model name: NL-C04J) to the digital RGB output
terminal of the computer.
See page E8 for information on removing/
replacing the terminal cover.
- The monitor has an input terminal for connecting
to a computer with a DVI-compatible output
terminal (DVI-D 24 pin or DVI-I 29 pin).
(Depending on the type of computer to be
connected, the display may not work correctly.)
PC digital RGB input terminal
Digital signal cable
(separately-sold)
- Paying attention to the connector direction, firmly
insert the signal cable straight into the
connector, and then tighten the screws at both
ends.
IT-23M1U_gb_01.P65
All manuals and user guides at all-guides.com
Digital RGB
output terminal
E15
15
Connecting the audio cable
Connect the supplied PC audio cable to the audio
output terminal of the computer.
PC audio input terminal
PC audio cable
(supplied)
2004/08/20, 10:41
Audio
output
terminal
