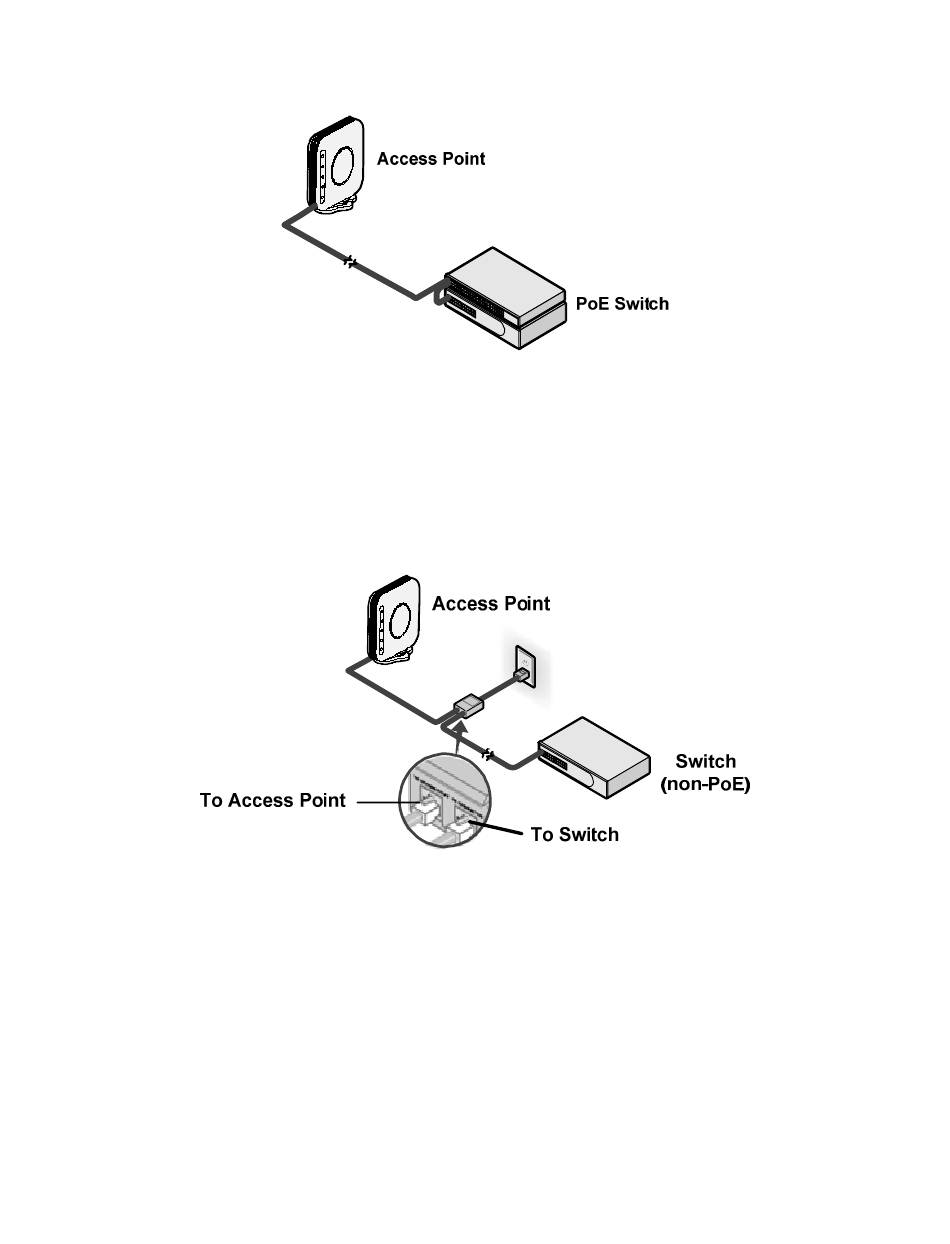

Power over Ethernet from a PoE Injector

To power the AP using a PoE injector or midspan (not included), follow these steps:
1) Connect the LAN cable from a switch to the Switch port on the PoE injector.
2) Connect a LAN cable from the Ethernet port on the AP to the other LAN port
on the PoE injector.
3) Plug the PoE injector into a properly grounded electric outlet. See the
illustration.

Checking the LED Indicators

When the AP is connected to power, LEDs indicate activity as follows:
