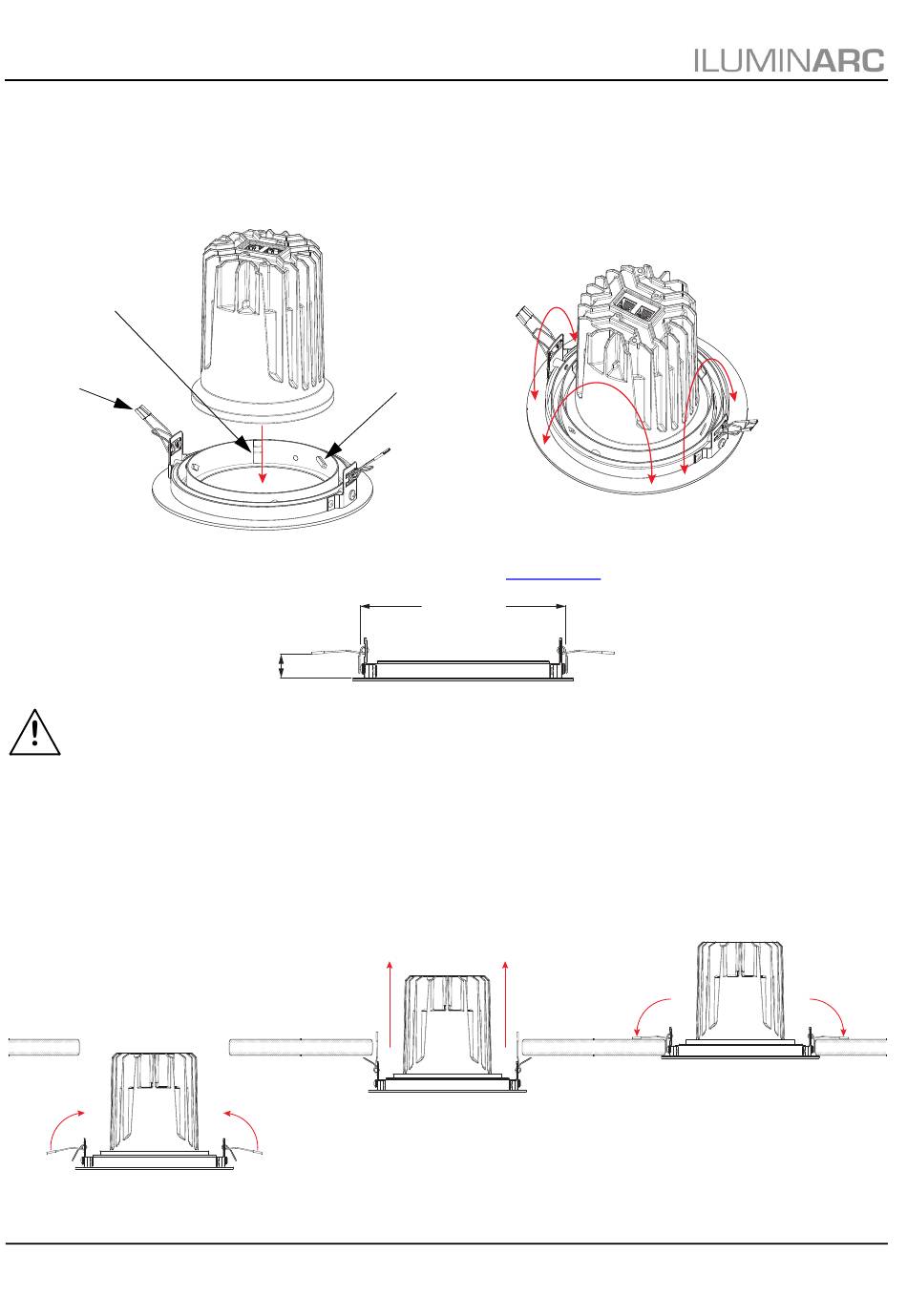

LΩGIC AR111 TRIM Installation
The LΩGIC AR111 TRIM (sold separately by Iluminarc) can be used to mount the LΩGIC AR111 Downlight S flush to a
ceiling or overhead surface. To attach the LΩGIC AR111 TRIM to the LΩGIC AR111 Downlight S, insert the
LΩGIC AR111 Downlight S into the top opening of the LΩGIC AR111 TRIM until it snaps into place. Bend the tabs inward
after installing to secure.
To remove the LΩGIC AR111 TRIM, bend the tabs to their original positions, push down on one of the clips, and pull the
LΩGIC AR111 Downlight S in the opposite direction until it comes free.
Clip (x3)
Spring arm (x2)
LΩGIC AR111 TRIM Mounting
Before mounting this product with the LΩGIC AR111 TRIM, read the
• The maximum ceiling thickness which the LΩGIC AR111 TRIM can support is 0.866 in (22 mm).
• The LΩGIC AR111 TRIM fits into a hole with a diameter of 6.23 in (158.14 mm).
To mount the LΩGIC AR111 Downlight S with the LΩGIC AR111 TRIM attached, do the following:
1. Cut a 6.23 in (158.14 mm) hole in the ceiling or overhead surface to be used.
2. Route all cables necessary to that hole and plug into the LΩGIC AR111 Downlight S before mounting.
3. Push and hold the spring arms on the LΩGIC AR111 TRIM up and in.
4. Insert the LΩGIC AR111 Downlight S into the hole until the edges of the hole are between the limbs of the spring
arms.
5. Push the product the rest up the way up until it snaps into place. The tension of the spring arms will hold the
product flush to the ceiling or overhead surface until it is intentionally removed.
5
QUICK REFERENCE GUIDE
0.866 in
22 mm
Bend tabs (x3)
inward after
installing to
secure
Safety Notes.
6.23 in
158.14 mm
Angle as desired
LΩGIC AR111 Downlight S QRG Rev. 7
on 2 axes
