Interface
16: EPO logic setting

Interface
17: Site fault detection enable/disable

Interface
18: Display setting for autonomy time

Interface
19: Acceptable input voltage range setting

Interface
00: Exit setting

Interface
Setting

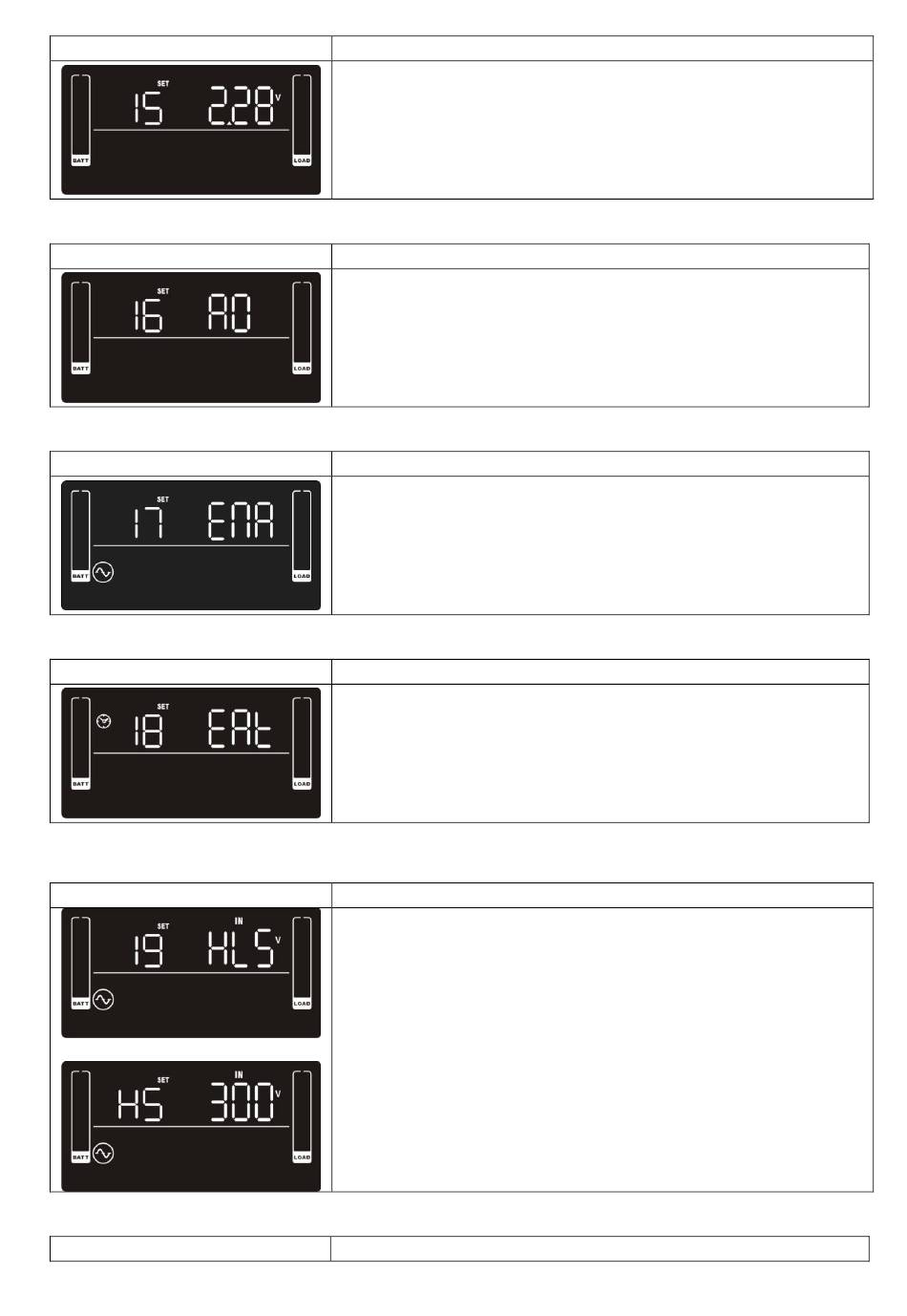

Parameter 2: Set the charger float voltage.
2.20-2.33: Set the charger float voltage from 2.20 V/cell to
2.33V/cell. (Default: 2.28V/cell)
Setting
Parameter 2: Set up the EPO function control logic.
AO: Active Open (Default). When AO is selected as EPO logic,
it will activate EPO function with Pin 1 and Pin 2 in open status.
AC: Active Closed. When AC is selected as EPO logic, it will
activate EPO function with Pin 1 and Pin 2 in closed status.
Setting
Parameter 2: Enable or disable site fault detection. You may
choose the following two options:
ENA: Site fault detection enable (Default)
DIS: Site fault detection disable
Setting
Parameter 2: Set the display setting for autonomy time
EAT: If EAT is selected, it will display the remaining autonomy
time. (Default)
RAT: If RAT is selected, it will show accumulated autonomy
time so far.
Setting
Parameter 2: Set the acceptable high voltage point and
acceptable low voltage point for input voltage range by
pressing the Down key or Up key.
HLS: Input high voltage point
For 200/208/220/230/240 VAC models:
280/290/300: setting the high voltage point in parameter
2. (Default: 300Vac)
LLS: Bypass low voltage point
For 200/208/220/230/240 VAC models:
110/120/130/140/150/160: setting the low voltage
point in parameter 2. (Default: 110Vac)
Setting
