Power supply
+24 V DC
FE
0 V
U
= 24 V DC
e
(12 - 32 V DC
SELV/PELV
& NEC Class 2 / LPS / Limited Energy)
I
= ...
e
0.5 - 0.6 Nm
(4.4 - 5.3 lb-in)
0 V +24 V DC

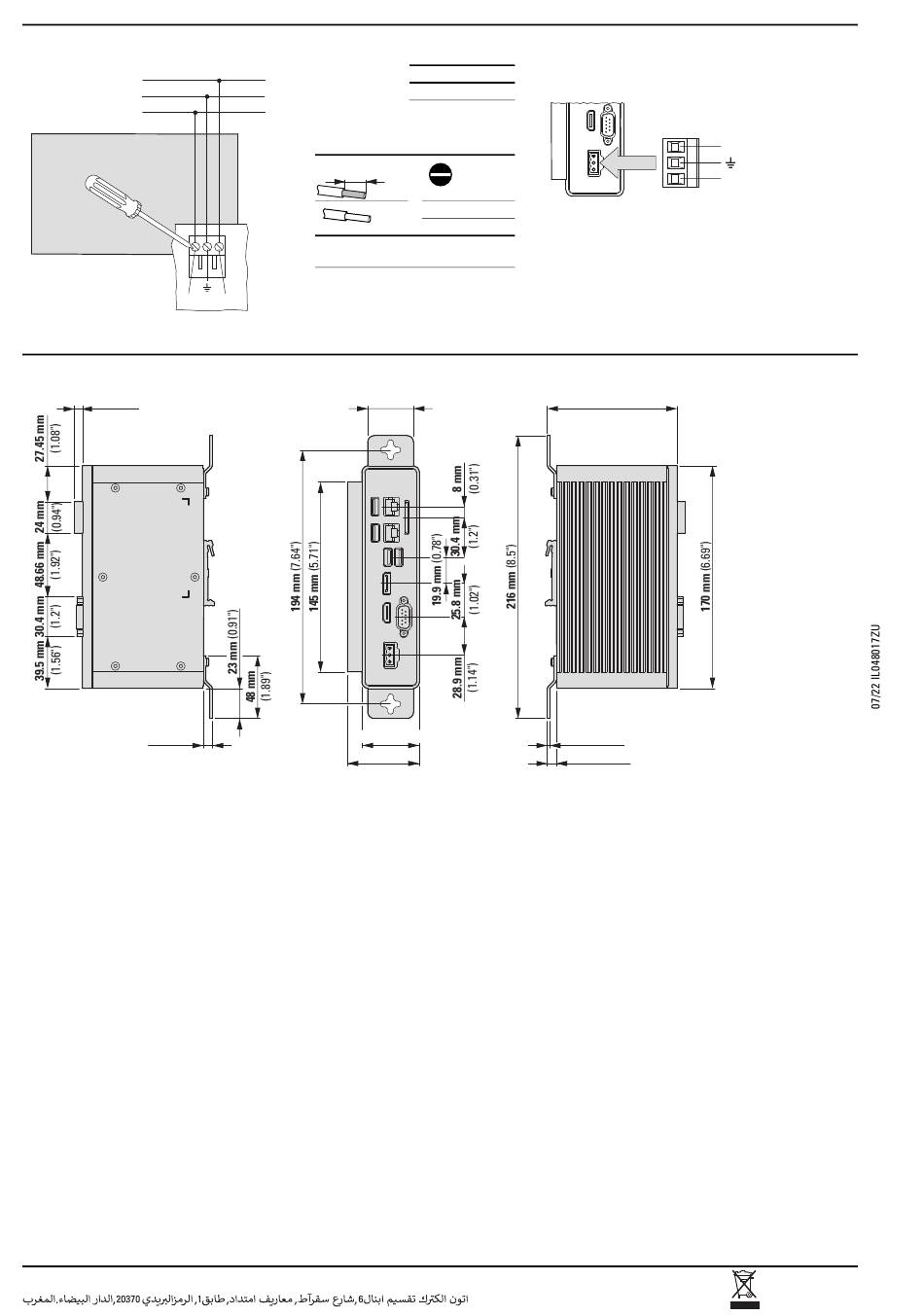

Dimensions
6.22 mm
(0.24")
7.25 mm
(0.29")
4/4
EU: Eaton Industries GmbH, Hein-Moeller-Straße 7-11, 53115 Bonn, Germany
UK: Eaton Electric Ltd., P.O. Box 554, Abbey Park, Southampton Road, Titchfield, PO14 4QA, United Kingdom
XP-504-BOXPC-...
I
[A]
≦ 1.3
e
7.0 mm (0.28")
2
0.75-2.5 mm
AWG19-AWG14
use copper conductors only,
min 65°C rated
35 mm
(1.38")
44 mm (1.73")
55 mm (2.17")
:MA
99.25 mm (3.91")
2 mm (0.08")
7 mm (0.28")
USA:
Eaton.com/contacts
Eaton.com/eatoncare
Eaton.com/aftersales
+1 877-386-2273
Eaton.com/documentation
+24 V DC
0 V
© 2021 Eaton Industries GmbH
07/22 IL048017ZU
Eaton.com/recycling
