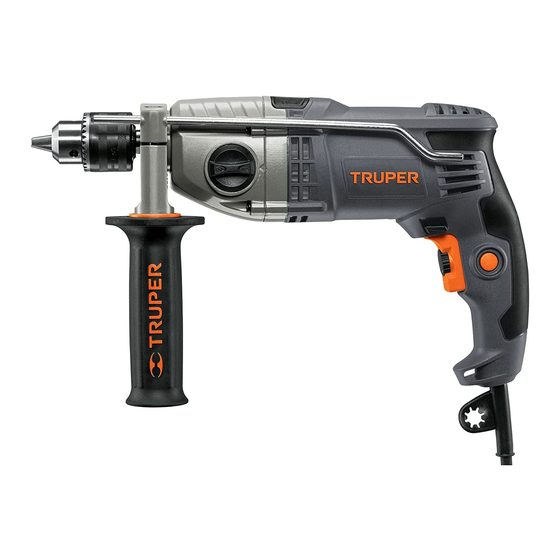

- Página 1 Manual Hammer Drill 1.2 Hp 1/2” Power Chuck Applies for: Code Model 19324 ROTO-1/2N7 ROTO-1/2N7 Read the user’s manual thoroughly CAUTION before operating this tool.
- Página 2 Contents CAUTION Technical Data Power Requirements To gain the best performance of the tool, prolong the duty life, General Power Tool Safety Warnings make the Warranty valid if necessary, and to avoid hazards Safety Warnings for of fatal injuries please read and Drills and Hammer Drills understand this Manual before using the tool.
- Página 3 Technical Data ROTO-1/2N7 Code 19324 Description Hammer Drill Chuck 1/2” Voltage Frequency 127 V 60 Hz Current Power 1.2 Hp Functions Drill - Hammer drill Drilling Capacity Steel: 1/2” | Concrete: 1/2” | Wood: 1” Speed 1: 0 - 1 200 RPM...
- Página 4 General power tool safety warnings WARNING! Read carefully all safety warnings and instruction listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references.
- Página 5 Safety Warnings for Drills and Hammer Drills Select the Right Bit While Operating the Hammer Drill CAUTION • Select the right bit for the material. • Hold the tool using both the main handle and the This reduces the risk of severe injuries and makes the auxiliary handle if supplied with the tool.
- Página 6 Parts Depth Mechanical Impact-Rotation Control Rod Speed Selector Selector Chuck Continuous Rotation Speed Operation Button Selection Auxiliary Control Button Handle Handle Switch Power Cable Power Cord Protector Chuck Chuck Key Holder Preparation Auxiliary Handle and Depth Control Rod Assembly Depth 1.
- Página 7 Preparation Bit Fitting Chuck • Put the bit into the chuck until it stops. Fasten with the chuck key and tighten the chuck alternatively into each of the orifices. WARNING • Clean burr and any other foreign object from the bit and the chuck. Otherwise, the bit cannot be tight and could cause personal injuries.
- Página 8 Start Up Start Up and Operation Control • Intermittent operation: Connect the plug into the power inlet. Press the switch (A) to start the hammer drill. To stop, just release the switch. • Continuous Operation: Connect the plug into the power inlet. Press the switch (A) and block it pressing the continuous use button (B).
- Página 9 Maintenance Chuck Replacement • Remove the auxiliary handle and pen the chuck jaws all the way. • Using a screwdriver remove the left-threaded safety screw with a clockwise movement. Phillips Screwdriver • Fit the long side of an “L” Allen key (not included) in a vise and insert the short side of the “L”...
- Página 10 Notes ENGLISH...
- Página 11 Authorized Service Centers In the event of any problem contacting a Truper Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800 018-7873 to get information about the nearest Service Center.
- Página 12 06060, where you can also purchase parts, components, consumables and accessories. The costs of transportation of the product that derive from its fulfillment of its service network are included. Truper will not require any proof of purchase to make the warranty effective. Phone number 800-018-7873. Made in China.
