Warning
The factory-set working pressure is adjusted to the maximum nominal load. The pressure
2
relief valve must not be tampered with.
Changing the setting can lead to serious damage.
Note
If the specified nominal load cannot be raised, please contact our service team.
1.6

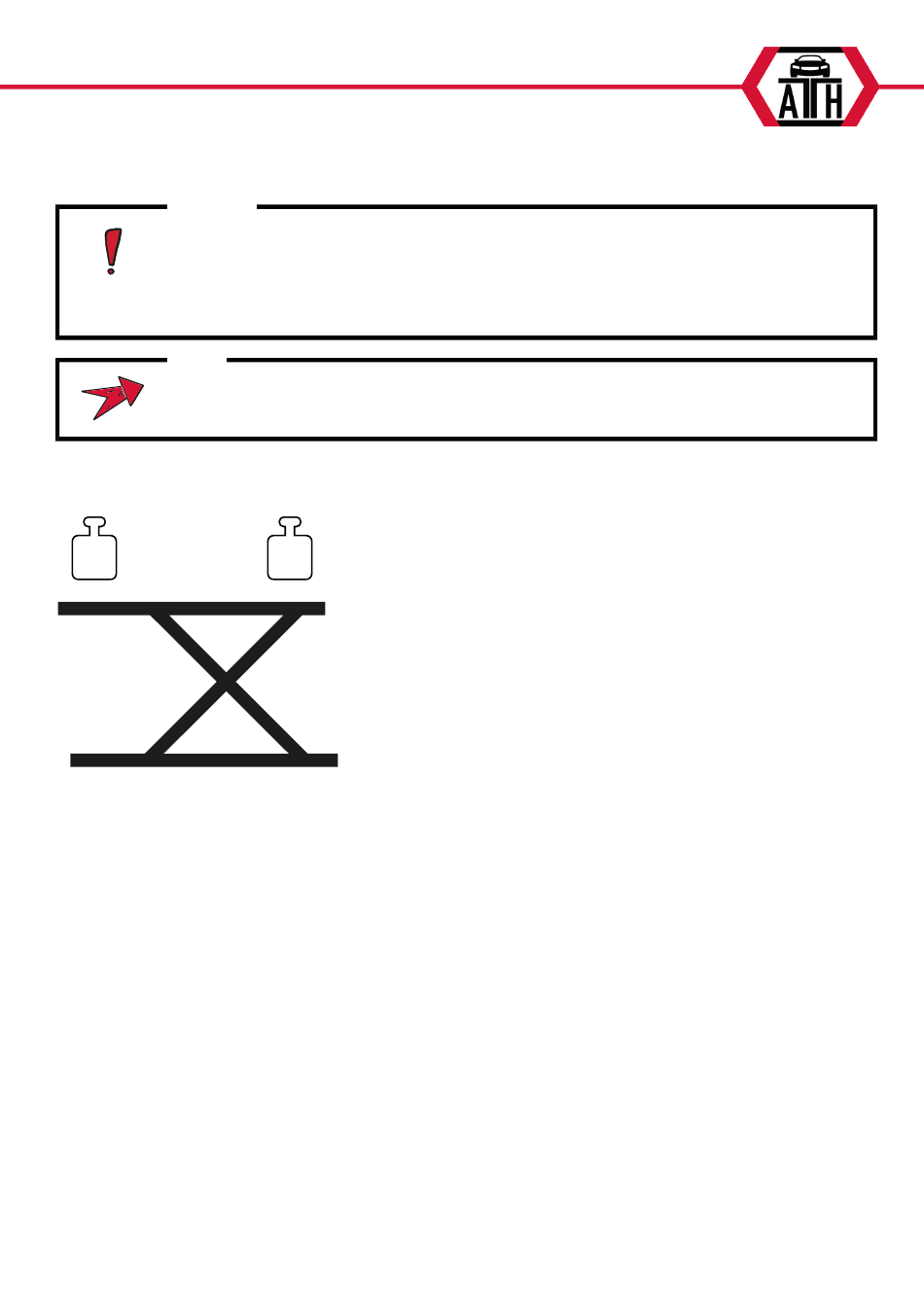

Load distribution

P2
Total weight of the vehicle
Q
Max 3/5 x Q
P1
Max 2/5 x Q
P2
3/2 Load distribution
