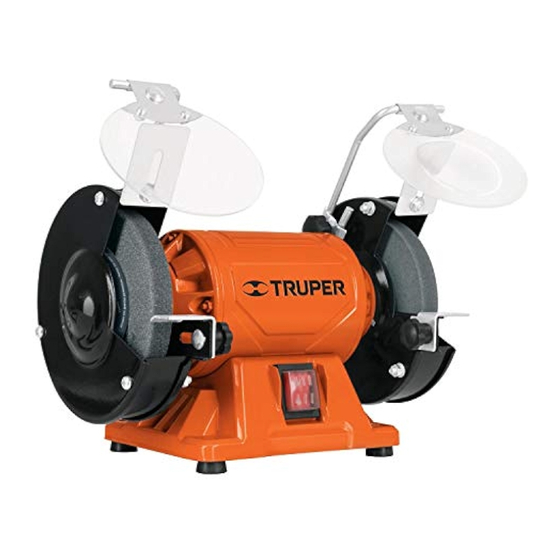

- Página 1 Manual Bench Grinder 6” Grinding Wheel Applies for: Code Model 12785 EBA-6 EBA-6 Read this manual thoroughly CAUTION before using the tool.
- Página 2 Manual before Parts using the tool. Assembly Keep this manual for future references. Start Up The illustrations in this manual are for reference Maintenance only. They might be different from the real tool. Notes Authorized Service Centers Warranty Policy EBA-6 ENGLISH...
- Página 3 Technical Data EBA-6 Code 12785 Description Bench Grinder Grinding Wheels 6” Voltage 127 V Frequency 60 Hz Current Power 1/2 Hp Speed 3 450 RPM Duty cycle 50 minutes work per 20 minutes idle. Maximum 6 hours per day Conductors 18 AWG X 3 C with insulating temperature of 221 °F...
- Página 4 General Safety Warnings for Power Tools WARNING! Read carefully all safety warnings and instructions listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references.
- Página 5 Safety Warnings for the Use of Bench Grinders Choose the Right Grinding Wheel While Operating the Bench Grinder CAUTION • Never try to use wheels with diameters • Keep your fingers in a safe distance away from the bigger than the size appropriate for the tool. grinding disc.
- Página 6 Parts Guards Grinding wheel Motor Base Switch Mounting brackets. Grinding wheel Adjusting Knobs for the Spark Tool Rest Arrester Guards Protectors Tool Rest Eye Protectors Fixing Clamps ENGLISH...
- Página 7 Assembly • Mount the tool on a bench or work table. Fix the base with bolts (not included).. • The place you determine to set the tool shall be perfectly leveled and with enough space around it to adequately handle and support the work piece. Mount the Accessories •...
- Página 8 Start Up Turning On To turn on the tool press the switch on the “ON” side. To stop the tool, press the switch on the “OFF” side. Wait a few seconds for the engine to reach its rated speed before operating. Operation •...
- Página 9 Maintenance Grinding Wheels Replacement Grinding Wheel Care • Replace wheels only with other wheels with a speed • Due to usage the wheel may crack, striate, get range at least as high as the r/min indicated on the round-edged, chip, get unbalanced or get stuck with machine label and with a 1/2”...
- Página 10 Notes ENGLISH...
- Página 11 Authorized Service Centers In the event of any problem contacting a Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800-018-7873 to get information about the nearest Service Center. AGUASCALIENTES DE TODO PARA LA CONSTRUCCIÓN...
- Página 12 It includes the costs of transportation of the product that derive from its fulfillment of its service network. Phone number 800-018-7873. Made in China. Imported by Truper, S.A. de C.V. Parque Industrial 1, Parque Industrial Jilotepec, Jilotepec, Edo. de Méx. C.P. 54257, Phone number 761 782 9100.
