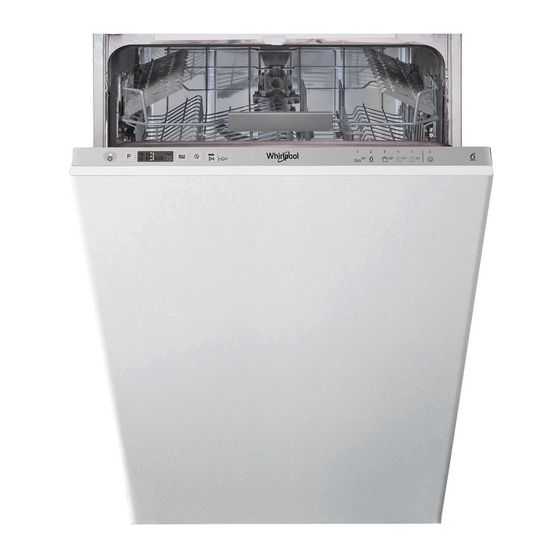

Whirlpool WSIC 3M17 Guía Rápida

Quick Guide
THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.
In order to receive a more complete assistance, please register
your appliance on: www.whirlpool.eu/register
Before using the appliance carefully read Safety Instructions
guide.
CONTROL PANEL
1. ON-OFF/Reset button with indicator light
2. Program selection button
3. Salt refill indicator light
4. Rinse Aid refill indicator light
5. Program number and delay time indicator
6. Tablet indicator light
7. Display
8. Multizone indicator lights
FIRST TIME USE
FILLING THE SALT RESERVOIR
The use of salt prevents the formation of LIMESCALE on the dishes and on
the machine's functional components.
• It is mandatory that the salt reservoir never be empty.
• It is important to set the water hardness.
The salt reservoir is located in the lower part of the dishwasher and must be
filled when the SALT REFILL indicator light
1. Remove the lower rack and unscrew the reservoir cap
(anticlockwise).
2. Position the funnel (see figure) and fill the salt reservoir
right up to its edge (approximately 1 kg); it is not unu-
sual for a little water to leak out.
3. Only the first time you do this: fill the salt reservoir
with water.
4. Remove the funnel and wipe any salt residue away from the opening.
Make sure the cap is screwed on tightly, so that no detergent can get into
the container during the wash program (this could damage the water
softener beyond repair).
Whenever you need to add salt, it is mandatory to complete the proce-
dure before the beginning of the washing cycle to avoid corrosion.
FILLING THE RINSE AID DISPENSER
Rinse aid makes dish DRYING easier. The rinse
aid dispenser A should be filled when the
RINSE AID REFILL indicator light
D
trol panel is lit.
C
NEVER pour the rinse aid directly into the
appliance tub.
A
PROGRAMS TABLE
Program
Eco 50°- Eco program is suitable to clean normally soiled tableware.
that for this use. it is the most efficient program in terms of its com-
1.
bined energy and water consumption. and that it is used to assess
compliance with the EU Ecodesign legislation.
6 Sense 50°- 60°- For normally soiled dishes with dried food
th
residues. Senses the level of soiling on the dishes and adjusts the
2.
program accordingly. When the sensor is detecting the soil level an
animation appears in the display and the cycle duration is updated.
-
Intensive 65°
Program recommended for heavily soiled crockery. espe-
3.
cially suitable for pans and saucepans (not to be used for delicate items).
Crystals 45° - Program for delicate items. which are more sensitive
4.
to high temperatures. for example glasses and cups.
Rapid 30' 50°
5.
dishes with no dried food residues. Does not have drying phase.
Prewash - Use to refresh crockery planned to be washed later. No
6.
detergent to be used with this program.
ECO program data is measured under laboratory conditions according to European Standard EN 60436:2020.
Note for Test Laboratories:
For information on comparative EN testing conditions, please send an email to the following address: dw_test_support@whirlpool.com
Pre-treatment of the dishes is not needed before any of the programs.
*) Not all options can be used simultaneously.
**) Values given for programs other than the program Eco are indicative only. The actual time may vary depending on many factors such as temperature and
pressure of the incoming water, room temperature, amount of detergent, quantity and type of load, load balancing, additional selected options and sensor cali-
bration. The sensor calibration can increase program duration up to 20 min.
in the control panel is lit.
Programs description
-
Program to be used for half load of lightly-soiled
PLEASE SCAN THE QR CODE ON YOUR
APPLIANCE IN ORDER TO HAVE MORE
DETAILED INFORMATION
1 2 3 4 5
9. Multizone button
10. Delay button
11. START/Pause button with indicator light / Tablet (Tab)
FILLING THE DETERGENT DISPENSER
To open the detergent dispenser use the opening device C. Introduce the
detergent into the dry dispenser D only. Place the amount of detergent for
pre-washing directly inside the tub.
If all-in-one detergents are used, we recommend using the TABLET button,
because it adjusts the program so that the best washing and drying results
are always achieved.
Usage of detergent not designed for dishwashers may cause
malfunction or damage to the appliance.
WATER SOFTENING SYSTEM
Water softener automatically reduces water hardness, consequently pre-
venting scale buildup on heater, contributing also to better cleaning effi-
ciency. This system regenerates itself with salt, therefore it is required
to refill salt container when empty.
Frequency of regeneration depends on water hardness level setting - regen-
eration takes place once per 6 Eco cycles with water hardness level set to 3.
Regeneration process starts in final rinse and finishes in drying phase, be-
fore cycle ends.
• Single regeneration consumes: ~3.5L of water;
• Takes up to 5 additional minutes for the cycle;
• Consumes below 0.005kWh of energy.
in the con-
Available
options
-
-
6 7 8 9 10 11
Duration
of wash
consumption
program
*)
(litres/cycle)
(h:min)
**)
4:00
1:20 - 3:00 7.0 - 14.0
2:40
1:40
0:30
0:10
EN
Water Energy
consumption
(kWh/cycle)
9.0 0.84
0.70 - 1.10
17.0 1.30
12.0 1.00
9.0 0.50
4.5 0.01
