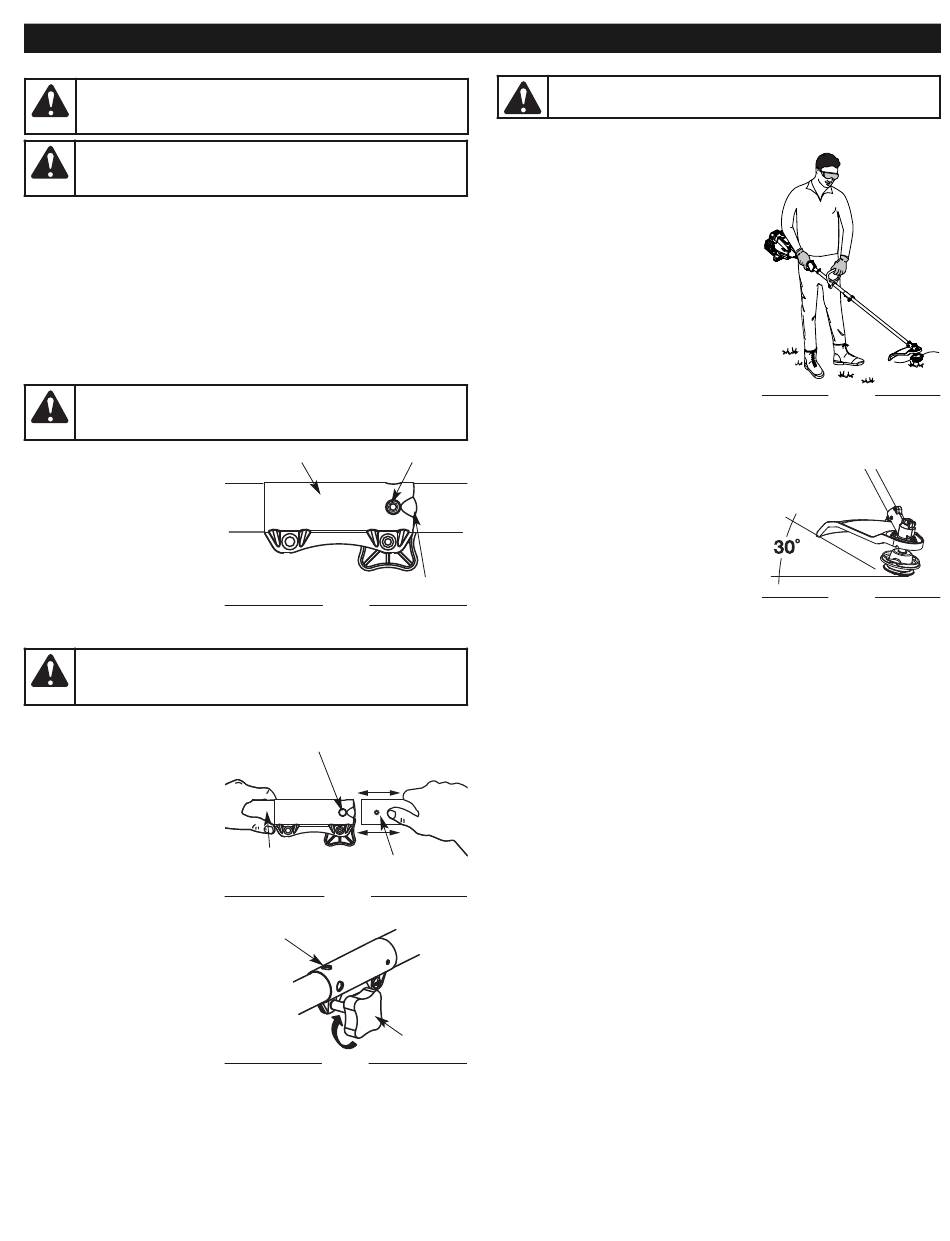

Operating Instructions - Craftsman Incredi-pull WEEDWACKER 316.791860 Manual Del Operador

OPERATING THE CONVERTIBLE™ COUPLER SYSTEM
WARNING:
Before you begin using any attachment, read
and understand the manual that came with the add-on.
Follow all safety information contained within.
CAUTION:
These add-on attachments are to be
snapped into the primary hole only. Using the wrong hole
could lead to personal injury or damage to the unit.
The Convertible™ coupler system enables the use of these optional
Add-Ons.
• Edger
• Cultivator
• Turbo Blower
• Brushcutter
• Pole Saw
• Blade Pruner
• Hedge Trimmer
REMOVING THE TRIMMER ATTACHMENT OR ADD-ONS
WARNING:
To avoid serious personal injury and
damage to the unit, shut the unit off before removing or
installing add-ons.
1. Turn the knob
counterclockwise to
loosen (Fig. 7).
2. Press and hold the
release button (Fig. 5).
3. While firmly holding the
upper shaft housing, pull
the trimmer attachment or
add-on straight out of the
Convertible™ coupler
(Fig. 6).
INSTALLING THE TRIMMER ATTACHMENT OR ADD-ONS
CAUTION:
Before operating this unit, be sure that the
release button is fully snapped into the primary hole (Fig. 6),
and that the knob (Fig. 7) is securely tightened.
NOTE: To make installing or removing the add-on easier, place the
unit on the ground or
on a work bench.
1. Turn knob
counterclockwise to
loosen (Fig. 7).
2. While firmly holding the
add-on, push it straight
into the Convertible™
coupler until the release
button snaps firmly into
the primary hole (Fig. 6).
NOTE: Aligning the release
button with the guide
recess will help
installation (Fig. 5).
3. Turn the knob clockwise
to tighten (Fig. 7).
For decorative edging with the
line head trimmer attachment,
lock the release button of the
trimmer attachment into the
90° hole (Fig. 7).

OPERATING INSTRUCTIONS

Convertible™ Release Button
Coupler
Guide Recess
Fig. 5
Primary Hole
Upper Shaft
Lower Shaft
Housing
Housing
Fig. 6
90˚ Edging Hole
(Trimmer Only)
Fig. 7
HOLDING THE TRIMMER
WARNING:
protection to reduce the risk of injury when operating this unit.
Before operating the unit, stand in the operating position (Fig. 8).
Check for the following:
• The operator is wearing eye
protection and proper clothing
• With a slightly-bent right arm, the
operator's hand is holding the shaft grip
• The operator's left arm is slightly bent,
the left hand holding the D-handle
• The unit is at waist level
• The trimmer attachment is parallel to
the ground and easily contacts the
grass without the need to bend over
TIPS FOR BEST TRIMMING RESULTS
• Keep the trimmer attachment parallel
to the ground.
• Cut from left to right whenever possible.
Trimmer to the right improves the unit's
trimmer efficiency. Clippings are thrown away from the operator.
• Trim only when grass and weeds are dry.
• The life of your trimmer line is dependent upon:
- Following the trimming tips
- What vegetation is being cut
- Where vegetation is being cut
DECORATIVE TRIMMING
Decorative trimming is accomplished by
removing all vegetation around trees,
posts, fences and more. Rotate the
whole unit so that the trimmer
attachment is at a 30° angle to the ground (Fig. 9).
Knob
Always wear eye, hearing, foot and body
Fig. 8
Fig. 9
