CONTACT US FIRST
CONTACT US FIRST
sauder.com
sauder.com
sauder.com
BEFORE MAKING ANY RETURNS TO THE STORE.
BEFORE MAKING ANY RETURNS TO THE STORE.
sauder.com/service
Visit
Prefer the phone? Give us a ring at
Customer Service is available Monday-Friday - 9 a.m. to 5:30 p.m. EST (except holidays)

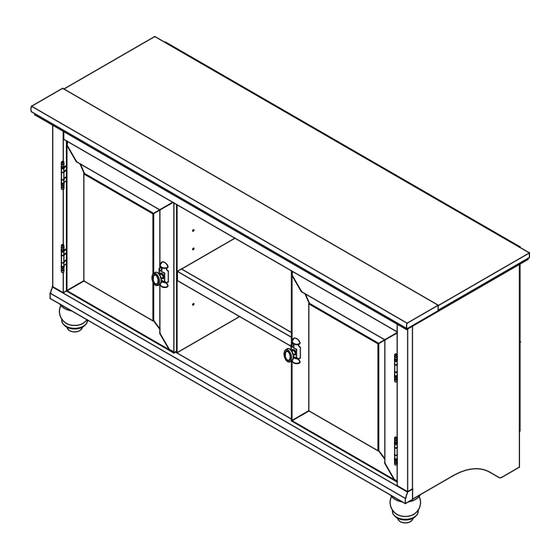

Entertainment
Credenza
Model 415979
Share your journey!
to order replacement parts, view video assembly tips, or chat with a live rep.
1-800-523-3987
.
Your center of
attention.
NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-22
Français pg 23-25
Español pg 26-28
Lot # 530052
Purchased: __________________
05/24/19

Publicidad

loading

Resumen de contenidos para Sauder Entertainment Credenza 415979

  • Página 1 CONTACT US FIRST CONTACT US FIRST sauder.com sauder.com sauder.com BEFORE MAKING ANY RETURNS TO THE STORE. BEFORE MAKING ANY RETURNS TO THE STORE. sauder.com/service Visit to order replacement parts, view video assembly tips, or chat with a live rep. 1-800-523-3987 Prefer the phone? Give us a ring at Customer Service is available Monday-Friday - 9 a.m.
  • Página 2 • Check the size and weight of your TV. Compare it to the diagram below – before you begin assembly! • This Sauder unit is designed for use with televisions weighing less than 70 pounds. Never use with a TV that weighs more.
  • Página 3 FRONT MOLDING (1) STOP MOLDING (1) TOP (1) RIGHT MOLDING (1) FOOT MOLDING (4) BOTTOM (1) LEFT MOLDING (1) RIGHT END MOLDING (1) BACK (1) VALANCE (1) W FOOT (2) BRACE (1) ADJUSTABLE SHELF MOLDING (2) www.sauder.com/service 415979 Page 3...
  • Página 4 BLACK 9/16" LARGE HEAD SCREW - 30 BLACK 1-1/4" FLAT HEAD SCREW - 3 BLACK 1/2" FLAT HEAD SCREW - 2 SILVER 2" FLAT HEAD SCREW - 14 SILVER 1-1/2" MACHINE SCREW - 2 Page 4 415979 www.sauder.com/service...
  • Página 5 Look for this icon. It means a Step 1 video assembly tip is available at www.sauder.com/service/tips Assemble your unit on a carpeted fl oor or on the empty å carton to avoid scratching your unit or the fl oor. Push twelve HIDDEN CAMS (1F) into the exact holes å...
  • Página 6 Push fi fteen HIDDEN CAMS (1F) into the ENDS (A and B), å TOP (E), BRACE (H), and VALANCE (O). Arrow (15 used) Arrow Arrow Hole The arrow in the HIDDEN CAM must point toward the hole in the edge of the board. Page 6 415979 www.sauder.com/service...
  • Página 7 Tap two MOLDING CONNECTORS (16F) into the notches å in the MOLDINGS (L, M, and N). Use your hammer to tap the MOLDING CONNECTORS (16F) into the notches in the MOLDINGS . Flat end Flat end www.sauder.com/service 415979 Page 7...
  • Página 8 Carefully turn your MOLDINGS (L, M, and N) over. å Turn fi fteen CAM SCREWS (8F) into the FRONT å MOLDING (L), BOTTOM MOLDING (Q), END MOLDINGS (R and V), and STOP MOLDING (T). (15 used) Page 8 415979 www.sauder.com/service...
  • Página 9 Step 5 Fasten the STOP MOLDING (T) to the TOP (E). Tighten å four HIDDEN CAMS. The STOP MOLDING (T) overhangs the TOP (E). The STOP MOLDING (T) overhangs the TOP (E). www.sauder.com/service 415979 Page 9...
  • Página 10 STOP MOLDING. Then, fasten the VALANCE (O) to the FRONT å MOLDING (L). Tighten three HIDDEN CAMS. Surface without HIDDEN CAMS SILVER 2" FLAT HEAD SCREW (10 used in this step) Surface with CAM SCREWS Page 10 415979 www.sauder.com/service...
  • Página 11 Tighten Risk of damage or Arrow injury. HIDDEN CAMS must be completely Arrow Maximum tightened. HIDDEN 210 degrees CAMS that are not completely tightened may loosen, and parts may separate. To Minimum completely tighten: 190 degrees www.sauder.com/service 415979 Page 11...
  • Página 12 SILVER 2" FLAT HEAD SCREWS (57S). These holes must be here. SILVER 2" FLAT HEAD SCREW (4 used in this step) Unfi nished edge BLACK 9/16" LARGE HEAD SCREW (4 used for the ANGLE BRACKETS) Page 12 415979 www.sauder.com/service...
  • Página 13 190 degrees Long edge Long edge i t h f a c S u r D E N H I D i t h o f a c S u r D E N H I D www.sauder.com/service 415979 Page 13...
  • Página 14 LARGE HEAD SCREWS (1S). BLACK 9/16" LARGE HEAD SCREW (8 used in this step) The dark "U" part of the hinge fastens to the MOLDING. The dark "U" part of the hinge fastens to the MOLDING. Page 14 415979 www.sauder.com/service...
  • Página 15 NOTE: Be sure the WOOD DOWELS in the END å MOLDINGS insert into the holes in the ENDS. Minimum 190 degrees These surfaces must be even. The end of the MOLDING must be against the FRONT MOLDING (L). These surfaces must be even. www.sauder.com/service 415979 Page 15...
  • Página 16 å BLACK 1-1/4" FLAT HEAD SCREWS (7S). Fasten the BOTTOM MOLDING (Q) to the BRACE (H). å Tighten four HIDDEN CAMS. Edge with holes BLACK 1-1/4" FLAT HEAD SCREW (3 used in this step) Flat edge Page 16 415979 www.sauder.com/service...
  • Página 17 FEET clockwise until the FOOT SCREW is tight in the BRACE (H) and each FOOT. NOTE: Do not overtighten the FOOT SCREWS. å Insert the MAGNETIC CATCHES (2I) into the holes in the UPRIGHTS (C and D). å www.sauder.com/service 415979 Page 17...
  • Página 18 Fasten the FOOT BRACKETS (6E) to the FOOT MOLDINGS (U). Use four BLACK 9/16" LARGE HEAD SCREWS (1S). å NOTE: The SCREWS will tighten into the groove of the FOOT MOLDINGS (U). å BLACK 9/16" LARGE HEAD SCREW (10 used in this step) Page 18 415979 www.sauder.com/service...
  • Página 19 (44 used in this step) NOTE: Perforations have been provided for access through the å BACK. Carefully cut out the holes needed. These holes must line up over Perforations should be the UPRIGHTS (C and D). located near this edge. www.sauder.com/service 415979 Page 19...
  • Página 20 BLACK 9/16" LARGE HEAD SCREW (8 used for the HINGES) Indented holes BLACK 1/2" FLAT HEAD SCREW SILVER 1-1/2" MACHINE SCREW Indented holes (2 used for the STRIKE PLATES) (2 used for the KNOB and BACKPLATES) Page 20 415979 www.sauder.com/service...
  • Página 21 Repeat this step for the ADJUSTABLE SHELVES (J2) using å the ADJUSTABLE SHELF MOLDINGS (P). *U.S. Patent No. 5,499,886 å Notched edge Slide the CENTER SHELF MOLDING (S) onto the notched edge. The groove is closer to this edge. www.sauder.com/service 415979 Page 21...
  • Página 22 - The TV must weigh less than 70 lbs. - The base of the TV must be able to sit completely on this shelf. 70 lbs. 25 lbs. 30 lbs. 60 lbs. total 25 lbs. (12 used) Page 22 415979 www.sauder.com/service...
  • Página 23 EXTRÉMITÉ DROITE ..........1 COUVERCLE DE COIN ...........2 pour future référence. CONSOLE DE PIED ...........2 EXTRÉMITÉ GAUCHE ..........1 Pour contacter Sauder en ce qui concerne cet EXCENTRIQUE ESCAMOTABLE ....27 MONTANT DROIT ............1 élément, faire référence CHEVILLE D'EXCENTRIQUE ......12 MONTANT GAUCHE ..........1...
  • Página 24 ! D’ARRÊT (T). Utiliser dix VIS TÊTE PLATE 51 mm ARGENTÉES (57S). • Cette unité Sauder est conçue pour les téléviseurs pesant moins REMARQUE : Ne pas trop serrer les VIS dans le DESSUS et de 43 kg.
  • Página 25 REMARQUE : S'assurer de bien enfoncer les CLOUS dans les trous qui sont alignés sur les MONTANTS (C et D). REMARQUE : Des lignes perforées ont été prévues pour accéder facilement à l'ARRIÈRE. Découper avec précaution les trous nécessaires. www.sauder.com/service 415979 Page 25...
  • Página 26 Si EXTREMO IZQUIERDO ..........1 EXCÉNTRICO ESCONDIDO ......27 necesita ponerse en PARAL DERECHO ............1 contacto con Sauder en PASADOR DE EXCÉNTRICO ......12 PARAL IZQUIERDO .............1 cuanto a esta unidad, BIELA DE EXCÉNTRICO ........15 refi érase al número 15F PASADOR DE MADERA .........4...
  • Página 27 - antes de comenzar el ensamblaje! MOLDURA DE TOPE (T). Utilice diez TORNILLOS PLATEADOS DE • Esta unidad Sauder está diseñada para ser usada con CABEZA PERDIDA de 51 mm (57S). televisores cuyo peso sea inferior a 43 Kg. Nunca la use para un NOTA: No apriete en exceso los TORNILLOS en el PANEL SUPERIOR televisor de mayor peso.
  • Página 28 NOTA: Asegúrese de clavar ligeramente los CLAVOS dentro de los agujeros que se alinean sobre los PARALES (C y D). NOTA: Hay perforaciones provistas para el acceso a través del DORSO. Cuidadosamente corte los agujeros necesarios. Page 28 415979 www.sauder.com/service...
  • Página 29 TOUJOURS décharger les tablettes et les tiroirs, en commençant par les surface supérieures, avant de déplacer le meuble. NE JAMAIS pousser ou tirer un meuble sur de la moquette. Demander à une autre personne de le soulever correctement pour le déplacer et/ou le repositionner. www.sauder.com/service 415979 Page 29...
  • Página 30 SIEMPRE descargue los estantes y cajones, empezando con las superfi cies superiores, antes de moverlo. NUNCA empuje ni tire de los muebles sobre una alfombra. Obtenga que un amigo le ayude a levantarlo correctamente para moverlo y/o reposicionarlo. Page 30 415979 www.sauder.com/service...
  • Página 31 à compter de la date d'achat la première fois et qui sont signalés à Sauder dans les limites de couverture de la contre tout défaut de matériaux ou de fabrication des composantes de mobilier Sauder.
  • Página 32 Walmart.com in the product detail page. General Conformity Certifi cate 1. This certifi cate applies to the Sauder Woodworking Product identifi ed by this Instruction Book. 2. This certifi cate applies to compliance of this product with the CPSC Ban on Lead-Containing Paint (16 CFR 1303).
