2. Remove the cover on the back of the speed
dome. Insert the SD card to the SD card slot and
install the cover back.

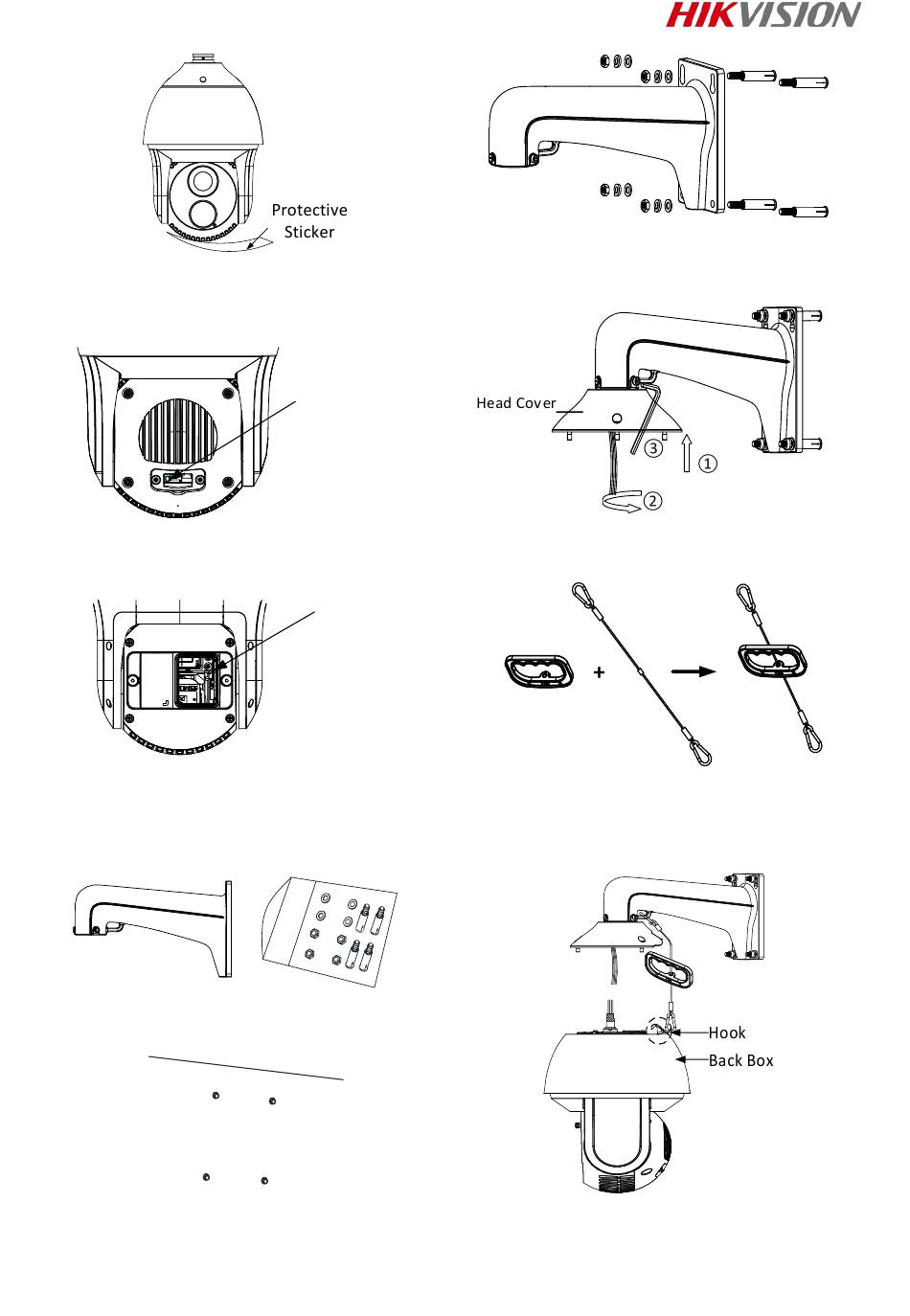

2.3 Install Speed Dome
Steps:
1. Install the bracket.
1) Take out the bracket and all accessories.
2) Drill four Φ12 expansion screw holed on the
wall and insert the delivered screws into the
holes.
3) Secure the wall mounting bracket with 4 hex
nuts and washers.
2. Stick thread tape to the thread of the head
MicroSD
Card Slot
3. Install the dome body to the head cover for
MicroSD
Card Slot
2
cover and rotate the head cover. Secure the
head cover to the bracket with delivered set
screws.
camera type I.
1) Buckle the handle to the safety rope.
2) Hook the two ends of the safety rope to the
back box of the speed dome and the bracket
respectively.
3) Hitch the speed dome onto the head cover
with the hook on the back box.
4) Route the cables through the head cover and
bracket.
