Directional Tube; Stainless Steel Hoop; Drainage Method - branatech PAC17-12-412 Manual Del Usuario

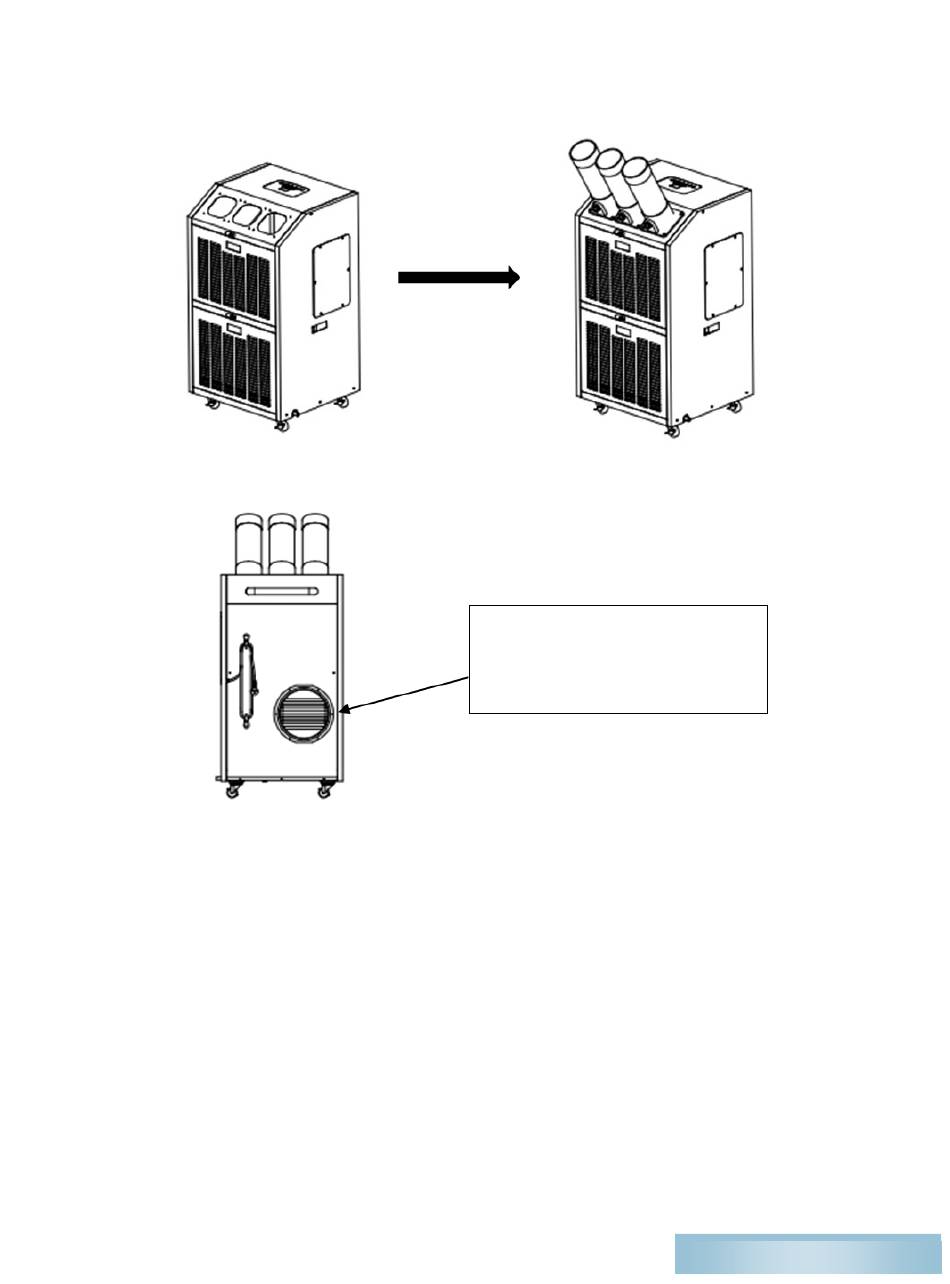

Three directional tubes installed on the air outlet of mobile air conditioning.
In extreme high temperature, high humidity or heating mode, water tank will be full and ma-
nual drainage or continuous drainage is necessary.
When the water full indicator light and display "E4", remind you to drain.
•
Manual drainage: Turn off the power, move the machine to the proper position, remove
the bottom stopper, and clean the water.
•
Drainage by pipe: Connect the drain pipe to the bottom drain for continuous drainage.
Please use the bottom drain to drain.

DIRECTIONAL TUBE

STAINLESS STEEL HOOP

This is the flange. According to
the need to configure 250mm
exhaust pipe

DRAINAGE METHOD
