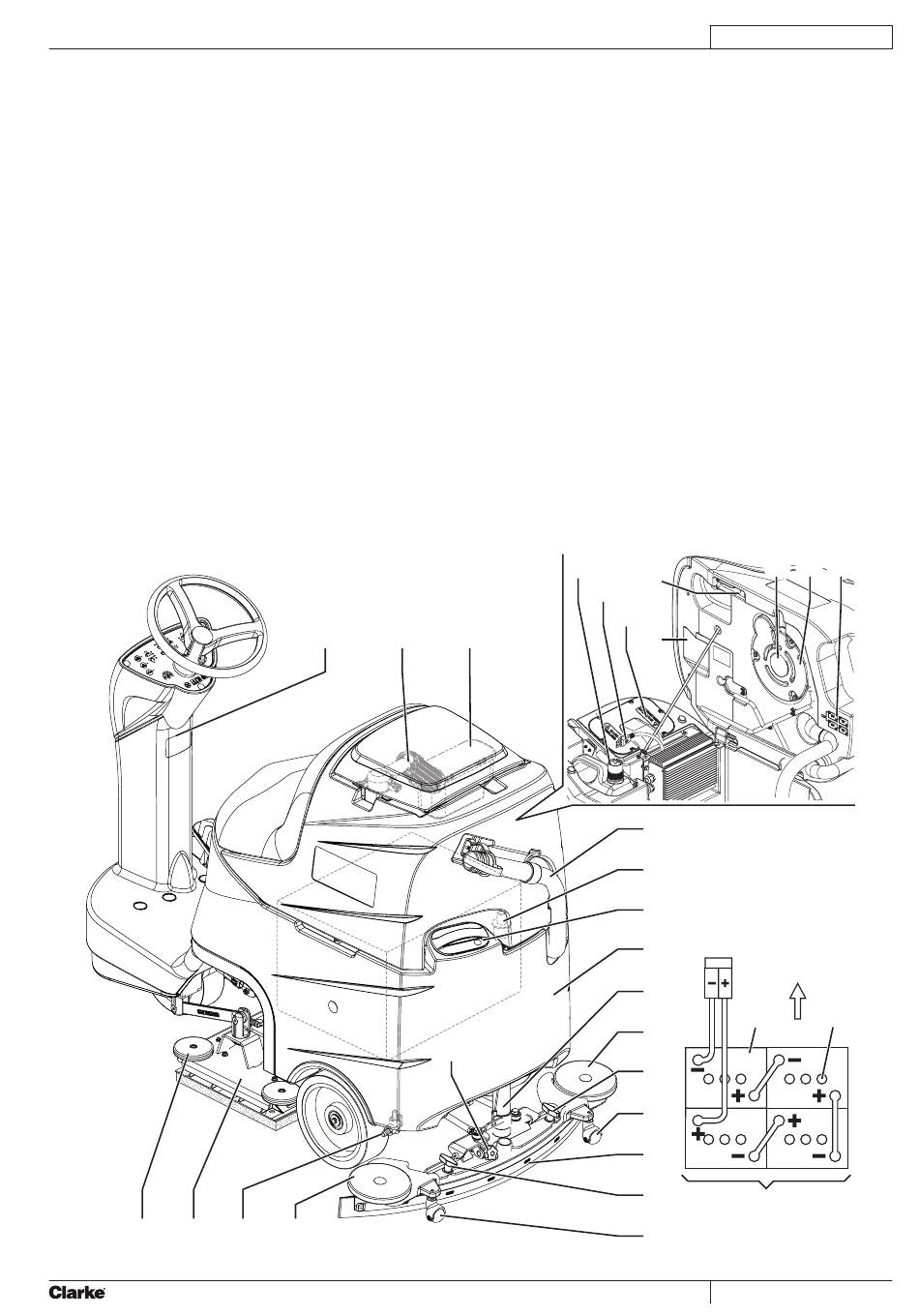

MACHINE STRUCTURE (Continues)
Serial number plate/technical data/conformity certification
21.
22. Solution/clean water tank
Solution/clean water tank filler neck
23.
24. Recovery water drain hose
25. Tank assembly stand
26. Container with debris collection grid
Vacuum grid with automatic shut-off float
27.
®
28. BOOST vibrating deck
29. Bumper wheel
30. Squeegee
31. Squeegee vacuum hose
32. Squeegee bumper wheels
29 28
Operator's Manual - FOCUS II Micro Rider
21 27
46 32
33. Squeegee support wheels
34. Squeegee mounting handwheels
35. Squeegee pitch adjusting handwheel
36. Vacuum system motor
Vacuum system motor filter
37.
38. Battery connection diagram
39. Batteries
40. Battery caps
41. Battery charger cable
42. Detergent tank (*)
43. Electronic component compartment cover
44. (Lifted) recovery tank assembly and driver's seat
45. Solution/clean water draining adapter
46. Solution/clean water drain tap
(*) Only for machines with Chemical Mixing System (optional)
42
41
43
26
35
ENGLISH
37 36 38
25
44
24
45
23
24V
22
Front
31
39
32
34
33
30
34
38
33
7
40
P100432
