Product Overview

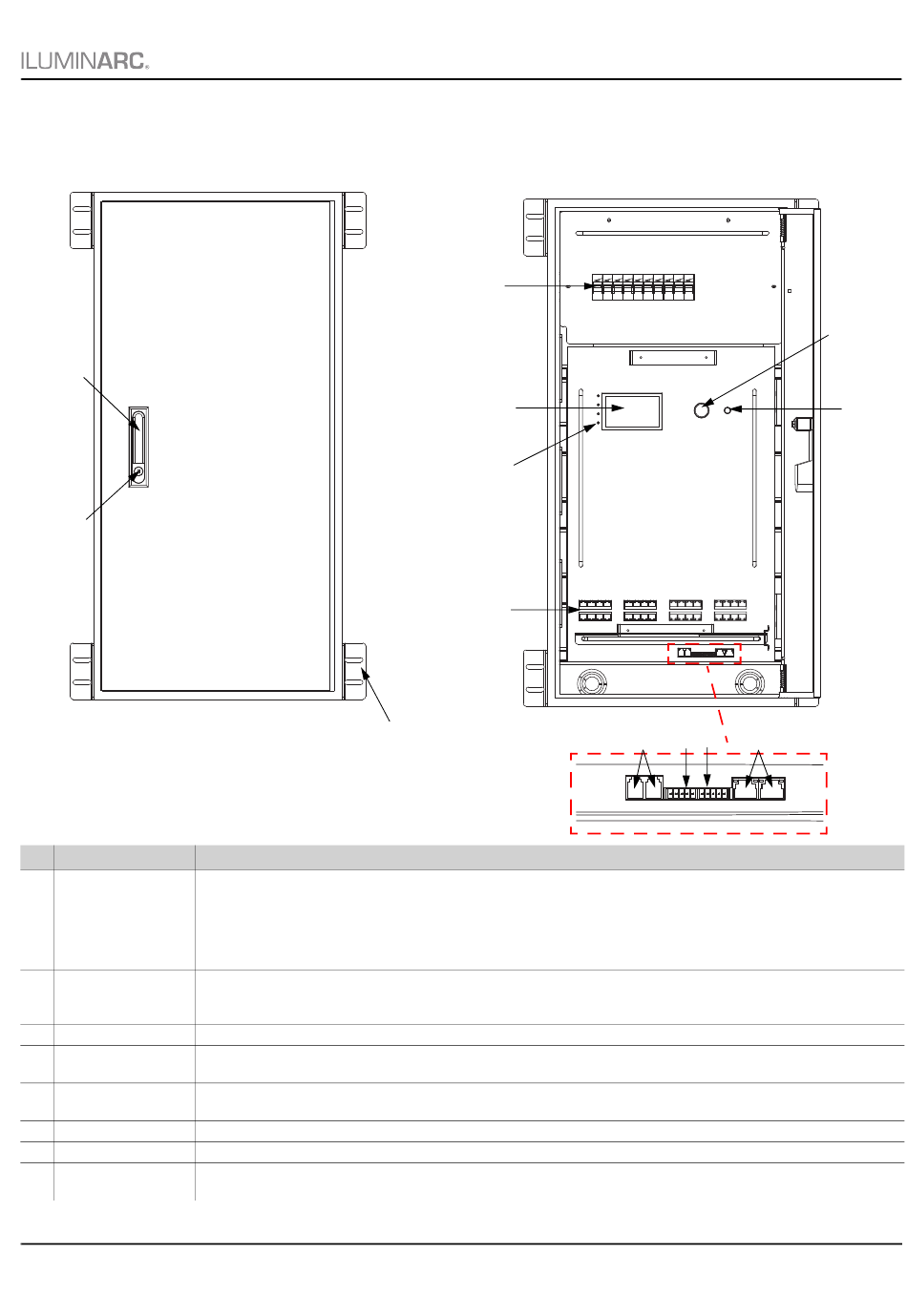

Front Overview

Door closed
Door
handle
Lock
# Name
1 LED indicators
2 MENU/ENTER
3 <BACK> button Exits the current menu or function
LOGIC FIXTURE
4
OUTPUTS
WALL CON
5
OUTPUT 1/2
6 DMX IN
7 DMX THRU
NETWORK IN/
8
THRU
LΩGIC Wall Panel 16- Port QRG Rev. 2
QUICK REFERENCE GUIDE
Rack/ mounting ears
Function
POWER: green, indicates power connection
ETHERNET: yellow, indicates ethernet connection
ACTIVITY (control): white, indicates controller signal
ERROR/ALERT: disconnected fixtures cause this LED to light, among other alerts. Red,
indicates an error (see Warning Messages in the menu)
Rotate to navigate upwards or downwards through the menu list, and increase or decrease a
selected numeric value. Push to enable the currently displayed menu option or set the currently
selected value into the selected function.
IEEE 802.3bt POE RJ45 connector for output LΩGIC products
RJ12 connectors for LΩGIC Wall Controller
5-pin phoenix connector for DMX input
5-pin phoenix connector for DMX output
RJ45 connectors for Ethernet input and through
Breakers
LCD Display
1
4
Door open
6 7
5
8
EN
2
3
