CARACTERÍSTICAS DE LA MÁQUINA
3.3.-Electronic section
The machine is fitthed with an electronical control consisting in a power unit a microprocessor board..

3.3.1.- Power unit

The power unit is equipped with differential protecctions:
-"Power" unit. General fuse of 6A
-"Timer" fuse. Fuse for the sound-timer. Value 2A
-"Light" fuse. Fuse for the lights. Value 6A
- Motor termic.
The incorporated net transformer has a duble isolation between the first and the second for guarantie
isolation between the working voltage and the electronical voltage 12 A. In the power unit we find also a solid relay
motor.
3.3.2.- Electronic circuit (sound-timer)
The machine is equipped with electronical control based on a microprocessor (sound-timer) which is
responsable for the whole functions of the machine: Time for a ride, program coin mechanism, sound, moto
General caracteristics sound-timer:
- Digital level control.
- Adjuntement nivel for the audio call.
- Incorporated audio amplifier (8 to 18W).
- Modification parameters through incorporated switches.
- 2 coin mechanisms.
- Digital money counters
- Optionals electromechanicals counters.
- 2 lights channels.
1

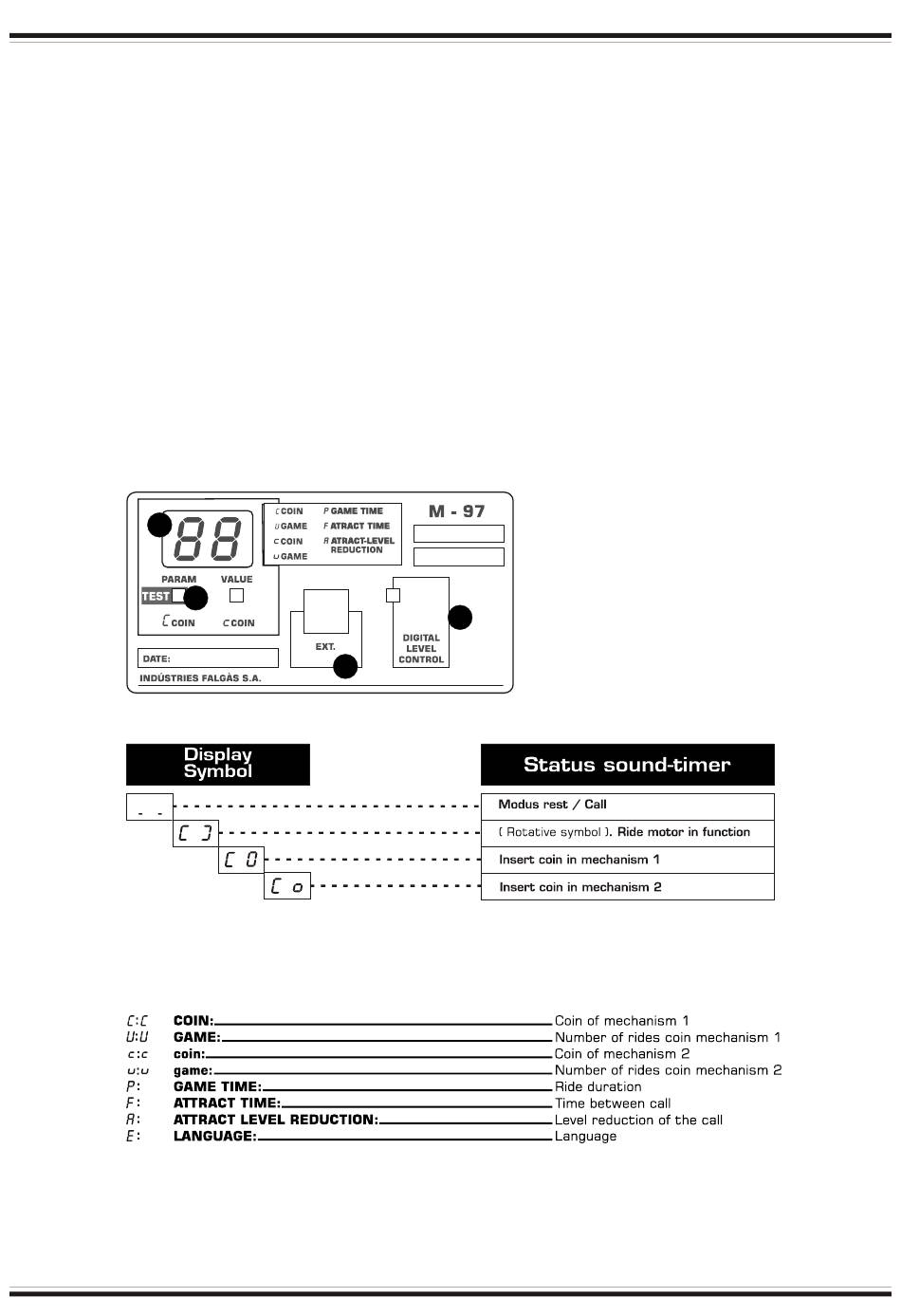

The display shows different informations depending the status of the sound-timer.
4.- PROGRAMING INSTRUCTIONS.
4.1.- Parameters variables for the user:
2
3
1.- Display istatus indicate.
Collection and parameters.
2.- Push buttons for collecion
and change of parameters.
3.- EXTERN Connection.
4
4.-DIGITAL LEVEL CONTROL
Press to change volume
of ride and call
FALGÀS
the
which activates the
activity, etc...
