Cleaning The Flail Screen
If the discharge area becomes clogged, remove the flail screen and clean area as
follows:
1. Stop the engine. Make certain the chipper/shredder vacuum has come to a
complete stop.
2. Before unclogging the discharge chute, disconnect and ground the spark
plug wire.
3. Remove the vacuum bag or blower chute from the unit as instructed in the
OPERATION section to obtain access to flail screen.
4. Remove the three self tapping screws securing the belt cover, and remove
belt cover. See Figure 16.
5. Remove self tapping screw on right side of unit that attaches to the flail
screen. See Figure 17.
SERVICE AND MAINTENANCE

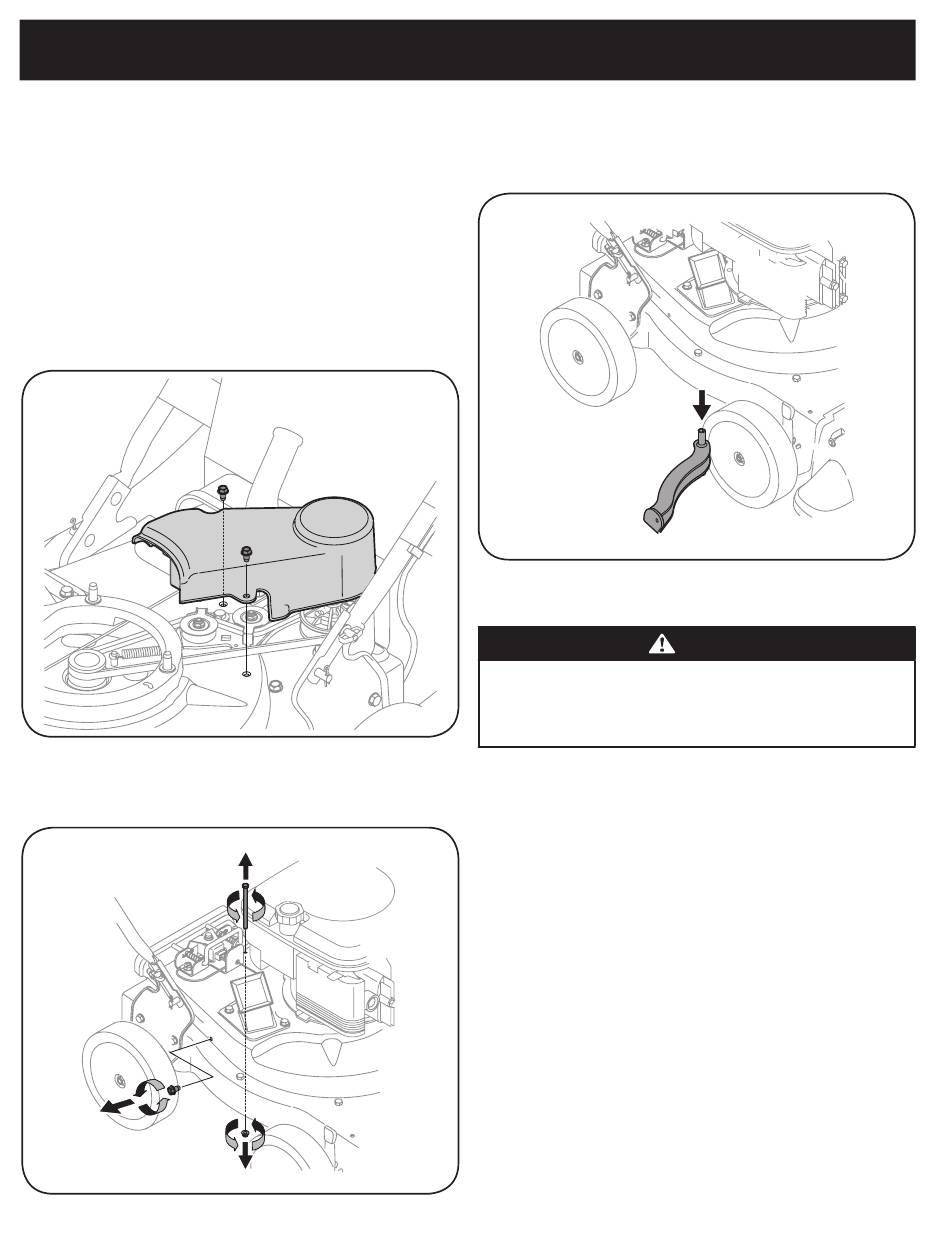

Figure 16
Figure 17
6. Remove hex screw on top of rear housing near mounting bracket and the
flange lock nut that secures flail screen. See Figure 17.
7. Remove and clean the screen by scraping or washing with water. See Figure
18.
8. Reinstall the screen.
Before performing any type of maintenance on the machine, wait for
all parts to stop moving and disconnect and ground the spark plug wire.
Failure to follow this instruction could result in personal injury or property
damage.
Sharpening Or Replacing Chipper Blade
NOTE: Before tipping the unit, empty the fuel tank by running engine until tank is
dry, and empty the oil reservoir as described in To Drain Oil.
1. Disconnect and ground the spark plug wire.
2. Remove bag assembly or blower chute.
14
Figure 18
WARNING
