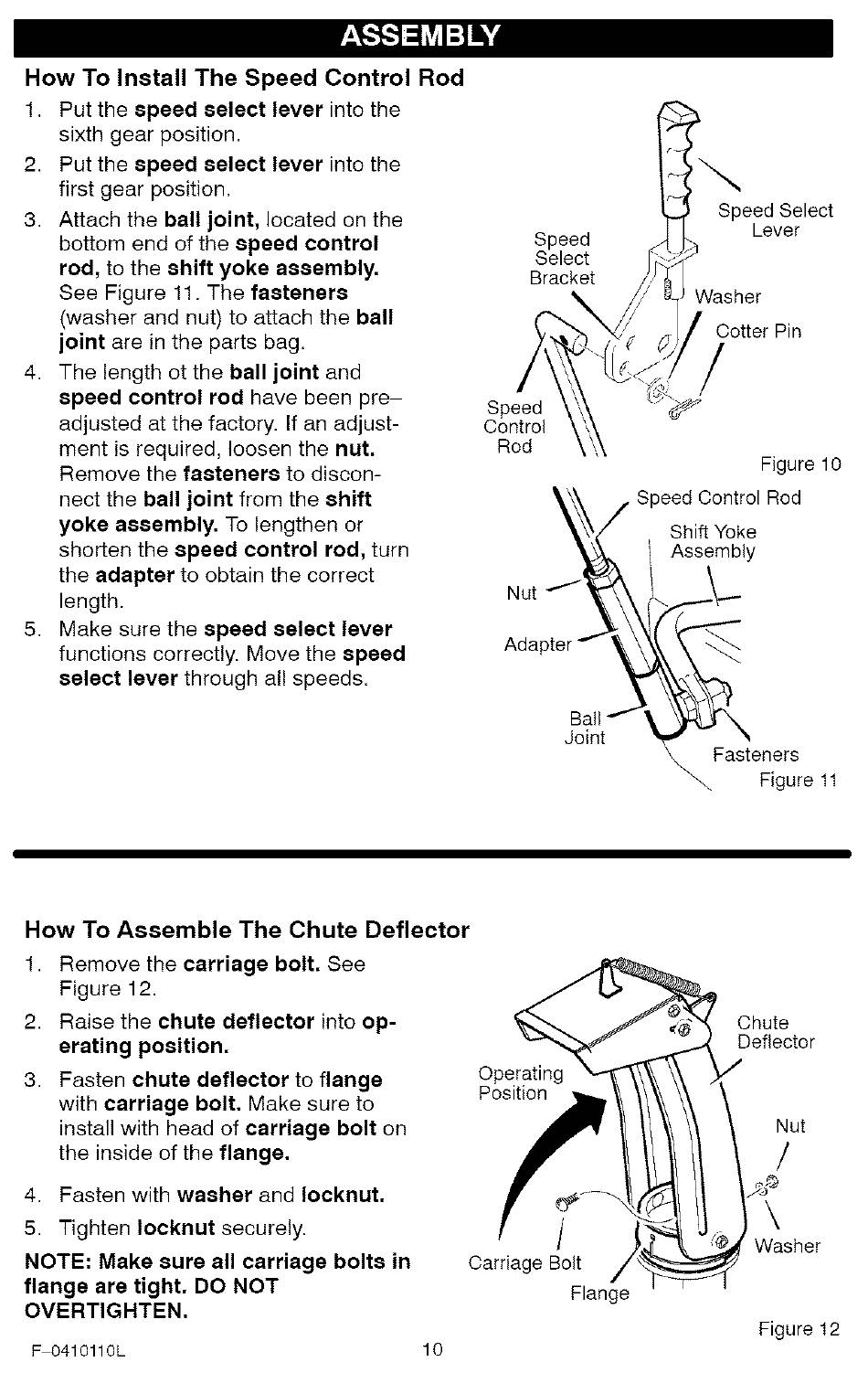

How To Install The Speed Control Rod
1 Put the speed select lever into the
sixth gear position.
2. Put the speed select lever into the
first gear position.
3. Attach the ball joint, located on the
bottom end of the speed control
rod, to the shift yoke assembly.
See Figure 11. The fasteners
(washer and nut) to attach the ball
joint are in the parts bag.
4. The length ot the ball joint and
speed control rod have been pro-
adjusted at the factory. If an adjust-
ment is required, loosen the nut.
Remove the fasteners to discon-
nect the ball joint from the shift
yoke assembly. To lengthen or
shorten the speed control rod, turn
the adapter to obtain the correct
length.
5. Make sure the speed select lever
functions correctly. Move the speed
select lever through all speeds.
Speed
Select
Bracket
_SsPhi_-r dvSeelect
Cotter Pin
Speed
Control
Rod
Figure 10
k%_ Speed.Oontrol Rod
Nut_ _ y
Adapter 4_ ,
Bo?lnlt"1 _X
Fasteners
Figure 11
How To Assemble The Chute Deflector
1. Remove the carriage bolt. See
Figure 12.
2. Raise the chute deflector into op-
erating position.
3 Fasten chute deflector to flange
with carriage bolt. Make sure to
install with head of carriage bolt on
the inside of the flange.
Operating
Position
4. Fasten with washer and Iocknut.
5. Tighten Iocknut securely.
NOTE: Make sure all carriage bolts in
flange are tight. DO NOT
OVERTIGHTEN.
/
Carriage Bolt
Flange
F 0410110L
10
Chute
Deflector
Nut
/
\
Washer
Figure 12
