Spare Parts Diagram - DGFLOW STEADYPRES M/M 8.5 Manual De Uso Y Mantenimiento

- WARNING: PAY ATTENTION TO PROPERLY FIT THE CONNECTOR
- Block the expansion board with 4 screws
- Connect signals (see
- Close the back cover
N°
KIT 1 Cover Kit with keyboard
KIT 2 Pressure sensor Kit
KIT 3 Non-return valve / flow sensor Kit
KIT 4 Cable bushing cover Kit
KIT 5 Expansion board cover Kit
KIT 6
7 GAS three-piece joint 1" GAS M Kit
7 NPT three-piece joint 1" NPT M Kit
8 Fuse (only for single phase versions)
10 RS485 expansion board + alarms
KIT 2
6
KIT 1
SIGNALS CONNECTION.)

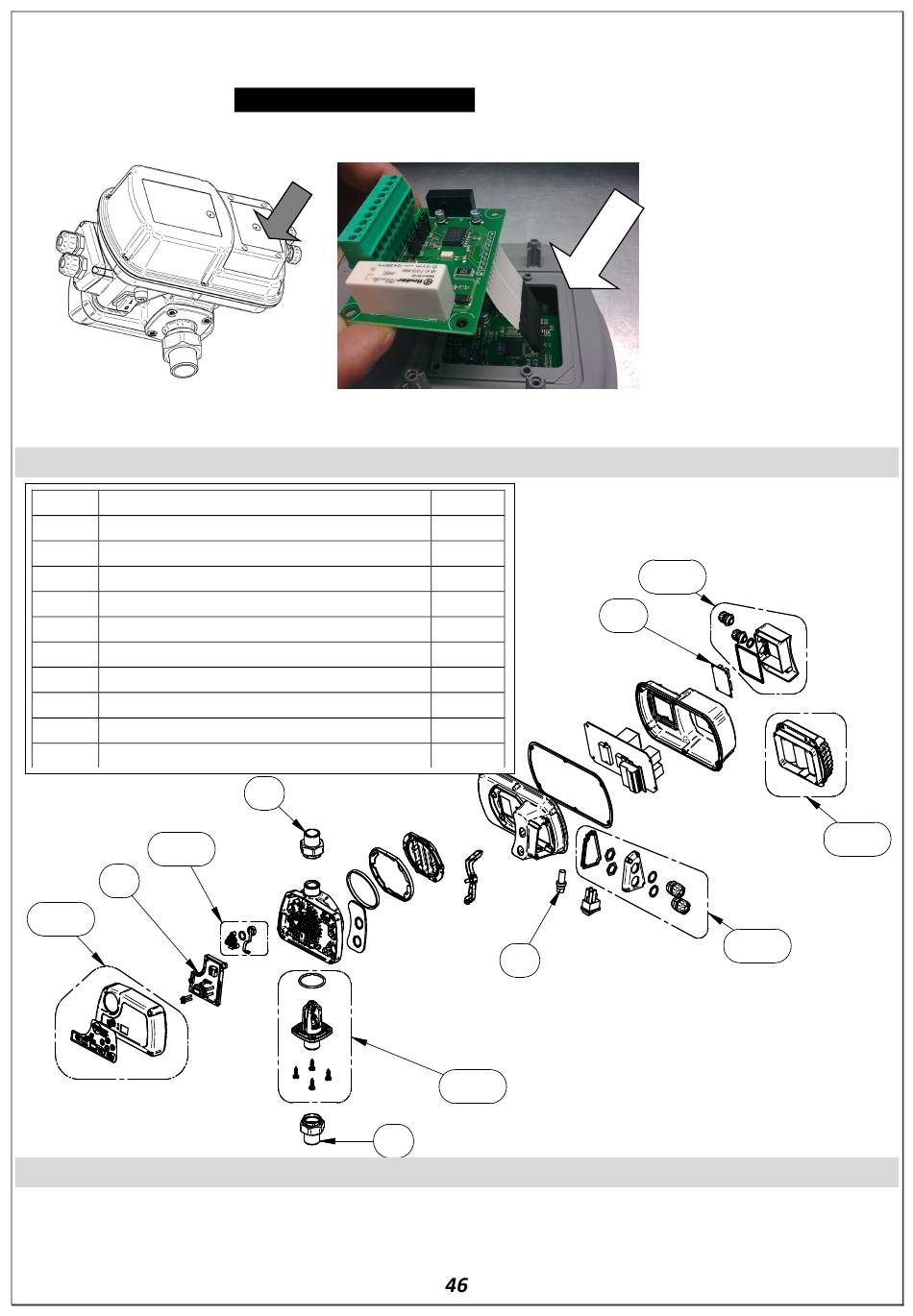

SPARE PARTS DIAGRAM

Description
Capacitor box Kit
7
Q.ty
1
1
1
1
1
1
2
2
1
1
8
KIT 3
7
KIT 5
10
KIT 4
KIT 6
