BTL5-P/I1-M_ _ _ _-H/W-S32/K_ _/KA_ _
Micropulse Linear Transducer - Rod Style
4
Wiring (cont.)
Control and data signals
Pin Cable
BTL5-P1...
1
YE yellow
INIT
2
GY grey
START/STOP
(2nd edge)
3
PK pink
INIT
4
not used
5
GN green
START/STOP
(2nd edge)
Supply voltage (external)
Pin Cable
BTL5-P/I1...
6
BU blue
GND
7
BN brown
+24 V
8
WH white
not used

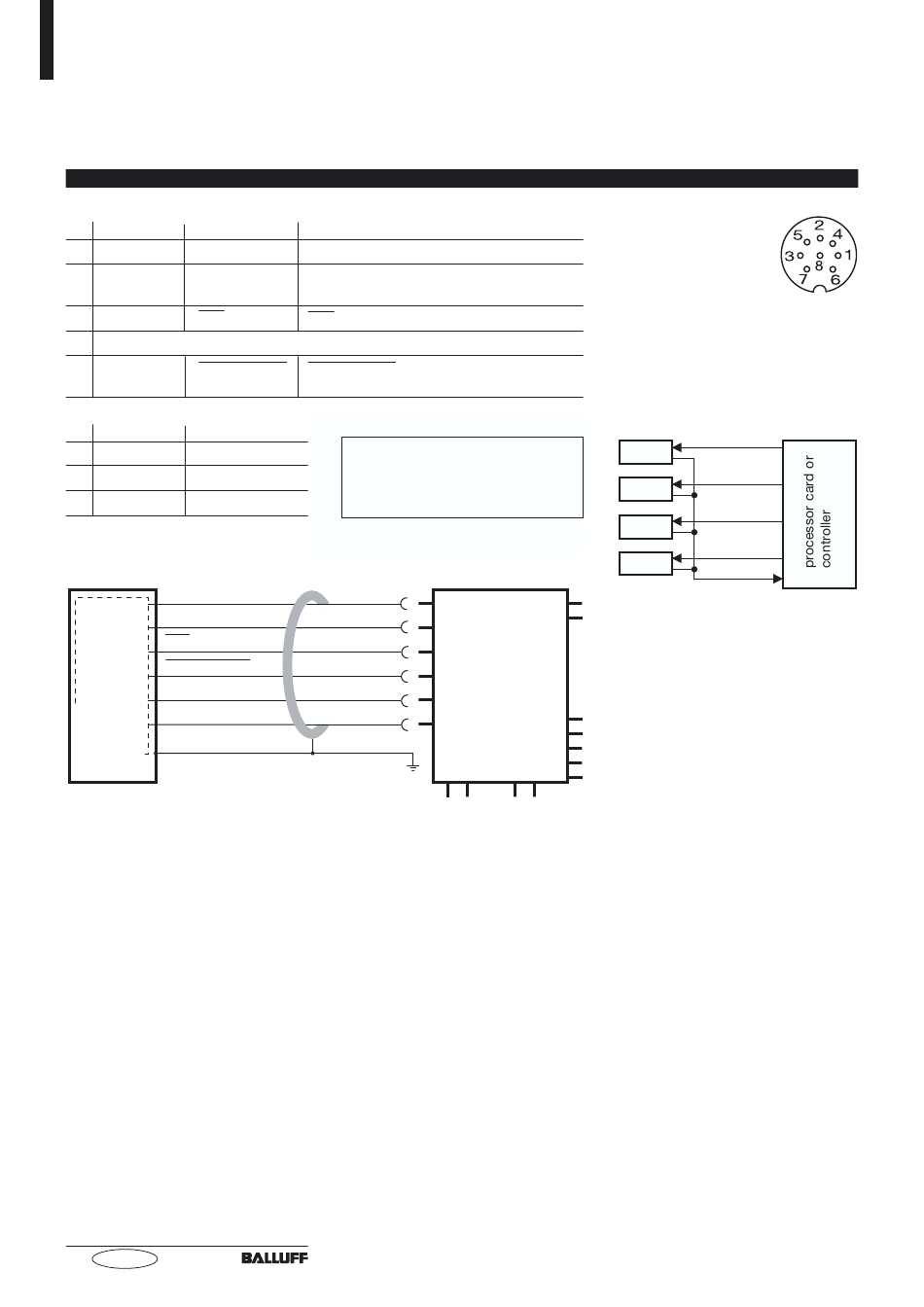

Table 4-1: Wiring assignment
INIT
1
START/STOP
2
INIT
3
START/STOP
5
GND
6
+24 V
7
BTL5-P1-
...
Fig. 4-2: BTL5-P1...H/W with processor card/controller, wiring example
6
english
BTL5-I1...
INIT
START/STOP
(tri-state, edge 2)
INIT
START/STOP
(tri-state, edge 2)
Unused leads can be tied to
GND on the control side, but they
must never be connected to the
shield.
YE
GY
PK
GN
BU
BN
BKS connector, view
towards solder side of
female BKS-S 32M-00
or BKS-S 33M-00
Fig. 4-3: Pin assignments BKS,
connector type BTL
BTL5-I...
Fig. 4-4: Wiring, bus operation
processor card or
controller
INIT pulse
No. 1
INIT pulse
No. 2
INIT pulse
No. 3
INIT pulse
No. 4
output signal
START/STOP
