HULL
HOOD
THROTTLE CABLE AND CHOKE CABLE

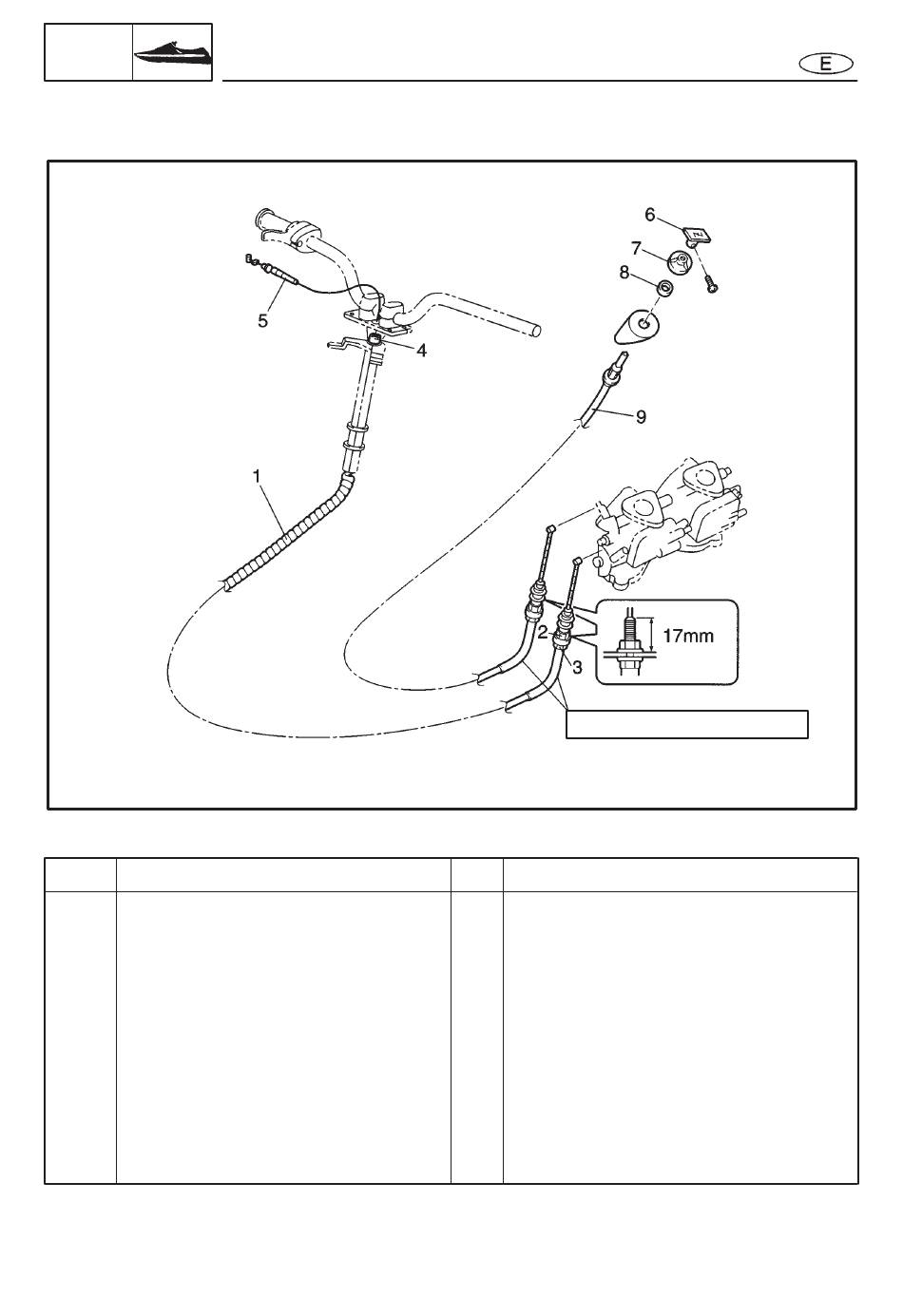

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step
Procedure/Part name
THROTTLE CABLE REMOVAL
1
Spiral tube
2
Throttle cable lock nut
3
Throttle cable adjusting
4
Seal packing
5
Throttle cable
6
Choke knob
7
Choke cable lock nut
8
Choke cable adjusting nut
9
Choke cable
THORTTLE CABLE AND CHOKE CABLE
8 Nm (0.8 mSkg, 6.0 ftSlb)
Q'ty
Follow the left "Step" fot removal.
1
1
1
1
1
1
1
1
1
Reverse the removal steps for
installation.
51
Service points
