COMPACT 3.0

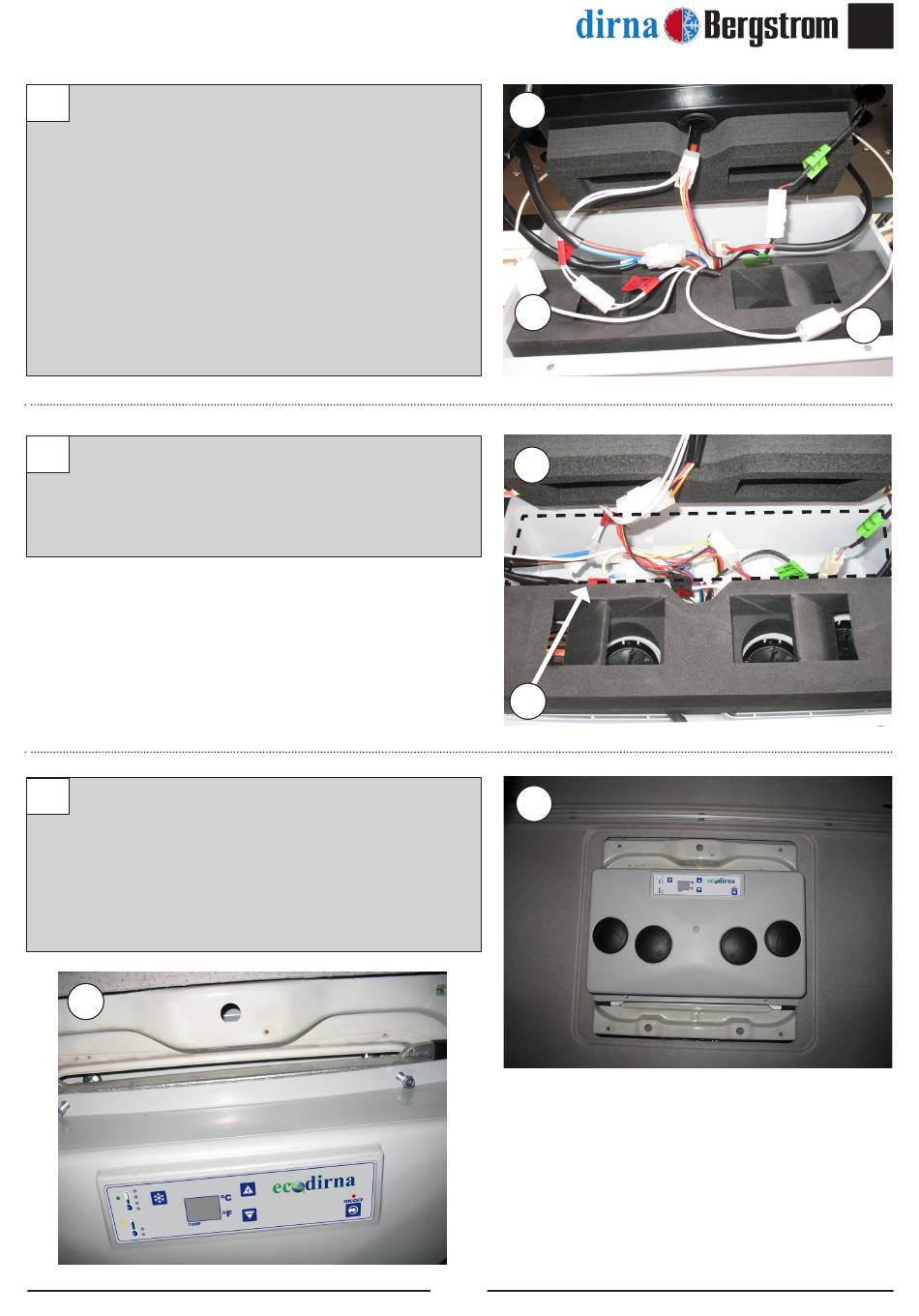

7 Connect (2) communication cables (A), the (2)
4-way boxes and (4) 2-way boxes of the interior
air distribution panel to those of the Compact.
Bear in mind that the two-way box marked with
white cables is joined to the connector with white
cables that comes out of the central part of the
equipment.
NOTE: It is very important not to invert the
colours of the condenser fan 2-way box (box
with R and N wires).
7a Introduce the cabling in the gap (H) in the interior
air distribution panel in order not to interfere in
the adjustment of the ducts with the base of the
unit.
7b
Place the interior air distribution panel on the
attachment supports with (4) 6 mm flat washers,
attaching with (4) M6 self-blocking nuts, and
screw without tightening.
Important: Air ducts must touch foam gasket to
avoid air leaks
7b
7
A
7a
H
7b
