"rE" - History Reset
Press the Eco/Comfort button for 3 seconds to delete all the faults stored in the History
Menu: the card will automatically exit the Service Menu, in order to confirm the operation.
Press the Reset button for 20 seconds to exit the card Service Menu, or exiting occurs
automatically after 15 minutes.
4.2 Startup
Before lighting the boiler
• Check the seal of the gas system.
• Check correct prefilling of the expansion tank.
• Fill the water system and make sure all air contained in the boiler and the system
has been vented.
• Make sure there are no water leaks in the system, DHW circuits, connections or boil-
er.
• Check correct connection of the electrical system and efficiency of the earthing sys-
tem.
• Make sure the gas pressure for heating is that required.
• Make sure there are no flammable liquids or materials in the immediate vicinity of
the boiler
Checks during operation
• Switch the unit on.
• Check the tightness of the fuel circuit and water systems.
• Check the efficiency of the flue and air/fume ducts while the boiler is working.
• Make sure the water is circulating properly between the boiler and the systems.
• Make sure the gas valve modulates correctly in the heating and domestic hot water
production stages.
• Check correct boiler lighting by performing various tests, turning it on and off with
the room thermostat or remote control.
• Make sure the fuel consumption indicated on the meter matches that given in the
technical data table in cap. 5.
• Make sure that with no demand for heating, the burner lights correctly on opening a
hot water tap. Check that in heating mode, on opening a hot water tap, the heating
circulating pump stops and there is regular production of hot water.
• Make sure the parameters are programmed correctly and carry out any required
customisation (compensation curve, power, temperatures, etc.).
4.3 Maintenance
Periodical check
To ensure correct operation of the unit over time, have qualified personnel carry out a
yearly check, providing for the following:
• The control and safety devices (gas valve, flow meter, thermostats, etc.) must func-
tion correctly.
• The fume exhaust circuit must be perfectly efficient.
(Sealed chamber boiler: fan, pressure switch, etc. -The sealed chamber must be
tight: seals, cable glands, etc.)
(Open chamber boiler: anti-backflow device, fume thermostat, etc.)
• The air-fume end piece and ducts must be free of obstructions and leaks
• The burner and exchanger must be clean and free of deposits. For possible cleaning
do not use chemical products or wire brushes.
• The electrode must be properly positioned and free of scale.
= =

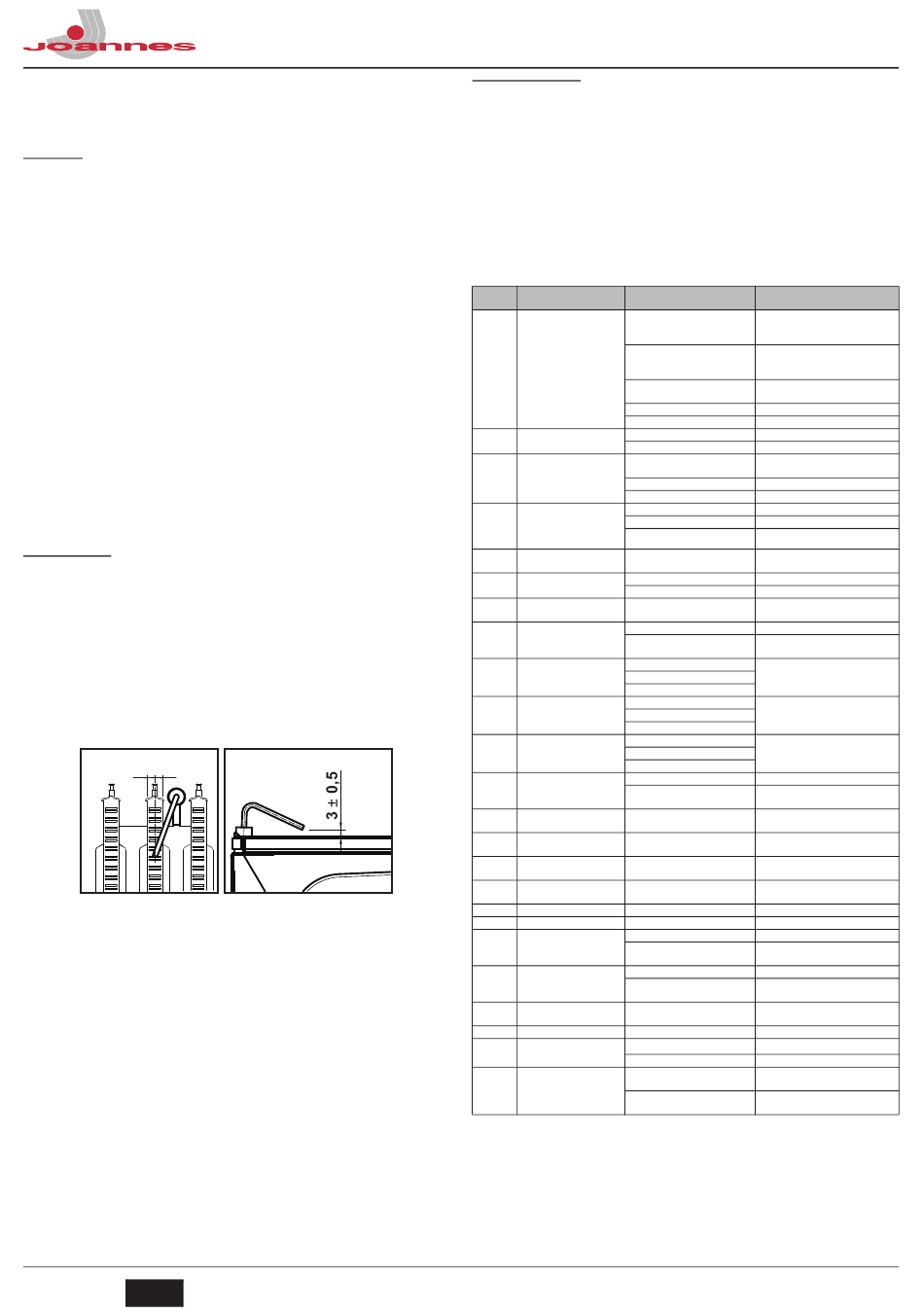

fig. 12 - Electrode positioning
• The gas and water systems must be airtight.
• The water pressure in the cold water system must be about 1 bar; otherwise, bring
it to that value.
• The circulating pump must not be blocked.
• The expansion tank must be filled.
• The gas flow and pressure must correspond to that given in the respective tables.
16
EN

4.4 Troubleshooting

Diagnostics
The boiler is equipped with an advanced self-diagnosis system. In case of a boiler fault,
the display will flash together with the fault symbol (detail 11 - fig. 1) indicating the fault
code.
There are faults that cause permanent shutdown (marked with the letter "A"): to restore
operation, press the RESET button (detail 6 - fig. 1) for 1 second or RESET on the op-
tional remote timer control if installed; if the boiler fails to start, it is necessary to eliminate
the fault.
Faults marked with the letter "F" cause temporary shutdowns that are automatically reset
as soon as the value returns within the boiler's normal working range.

List of faults

Table. 2
Fault
Fault
code
A01 No burner ignition
Flame present signal with
A02
burner off
Overtemperature protection
A03
activation
Fume thermostat activated
(after activation of the fume
F04
thermostat, boiler operation is
prevented for 20 minutes)
F05 Card parameter fault
No flame after the ignition
A06
phase
F07 Card parameter fault
A09 Gas valve fault
F10 Delivery sensor 1 fault
F11 DHW sensor fault
F14 Delivery sensor 2 fault
A16 Gas valve fault
F20 Card parameter fault
A21 Card parameter fault
A23 Card parameter fault
A24 Card parameter fault
F34 Supply voltage under 180V.
F35 Faulty mains frequency
Incorrect system water pres-
F37
sure
F39 External probe fault
A41 Sensor positioning
F42 Heating sensor fault
F43 Exchanger protection trips.
F50 Gas valve fault
cod. 3541C840 - Rev. 00 - 09/2012
CLIZIA D 32 A
Possible cause Cure
Check the regular gas flow to the boiler
No gas and that the air has been eliminated from
the pipes
Check the wiring of the electrode and that
Ignition/detection electrode fault it is correctly positioned and free of any
deposits
Check the gas valve and replace it if nec-
Faulty gas valve
essary
Gas valve wiring disconnected Check the wiring
Ignition power too low Adjust the ignition power
Electrode fault Check the ionisation electrode wiring
Card fault Check the card
Check the correct positioning and opera-
Heating sensor damaged
tion of the heating sensor
No water circulation in the system Check the circulating pump
Air in the system Vent the system
Fume thermostat contact open Check the thermostat
Wiring disconnected Check the wiring
Flue obstructed or not correctly sized Check the flue
Check the card parameter and modify it if
Wrong card parameter setting
necessary
Low pressure in the gas system Check the gas pressure
Burner minimum pressure setting Check the pressures
Check the card parameter and modify it if
Wrong card parameter setting
necessary
Wiring disconnected Check the wiring
Check the gas valve and replace it if nec-
Faulty gas valve
essary
Sensor damaged
Wiring shorted Check the wiring or replace the sensor
Wiring disconnected
Sensor damaged
Wiring shorted Check the wiring or replace the sensor
Wiring disconnected
Sensor damaged
Wiring shorted Check the wiring or replace the sensor
Wiring disconnected
Wiring disconnected Check the wiring
Check the gas valve and replace it if nec-
Faulty gas valve
essary
Check the card parameter and modify it if
Wrong card parameter setting
necessary
Check the card parameter and modify it if
Wrong card parameter setting
necessary
Check the card parameter and modify it if
Wrong card parameter setting
necessary
Check the card parameter and modify it if
Wrong card parameter setting
necessary
Electric mains trouble Check the electrical system
Electric mains trouble Check the electrical system
Pressure too low Fill the system
Water pressure switch damaged or
Check the sensor
not connected
Probe damaged or wiring shorted Check the wiring or replace the sensor
Probe disconnected after activating Reconnect the external sensor or disable
the sliding temperature the sliding temperature
Delivery sensor or DHW sensor Check the correct positioning and opera-
detached from the pipe tion of the sensors
Sensor damaged Replace the sensor
No system H O circulation
Check the circulating pump
2
Air in the system Vent the system
Modulating Operator wiring discon-
Check the wiring
nected
Check the gas valve and replace it if nec-
Faulty gas valve
essary
