Component description
The engine RPM signal can be read directly from the coil negative or from the tachometer.
It is essential that this input is connected for the "GALILEO" to work correctly.
SETTING TYPE
COIL NEGATIVE
Ignition type or number of cylinders
OR RPM SIGNAL
BROWN WIRE
Type of RPM signal

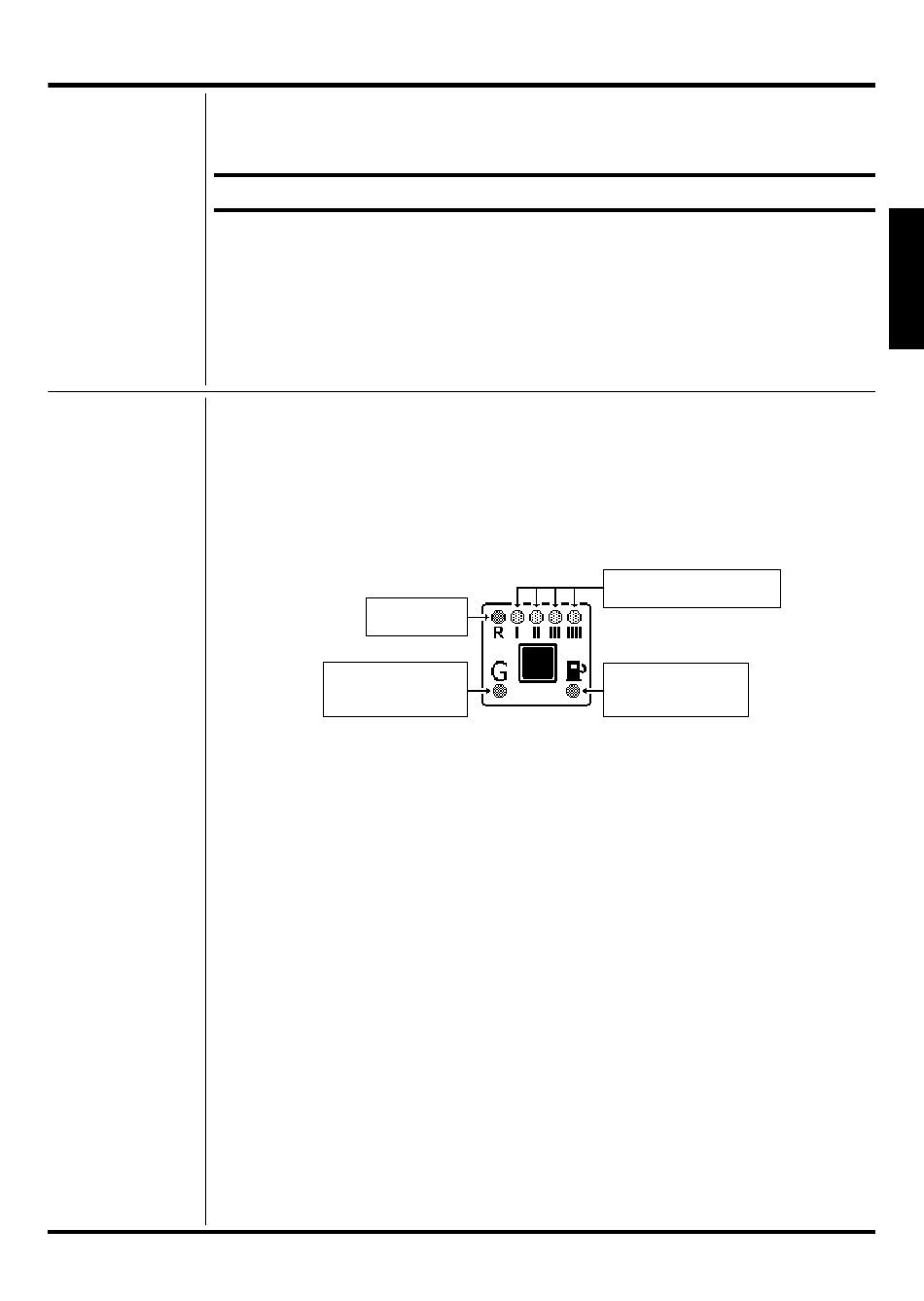

The "GALILEO" is supplied complete with fuel switch. The fuel switch is provided with the
following functions:
• level indicator;
• button to select GASOLINE or GAS;
• each pressing of the button produces the passage from GASOLINE to GAS and vice versa.
Quick flashing - The unit is set for PETROL and automatic GAS switchover.
SWITCH
Steady on - GAS operation.
Fuel level indicator - The RED led indicates low fuel, while the 4 GREEN led's indicate the
fuel level (1/4, 2/4, 3/4, 4/4).
Steady on - PETROL operation.
If you have set start-up with PETROL and the vehicle does not manage to start with
PETROL, it is possible to start it up directly with GAS. To do so, carry out the following
instructions:
• turn the ignition key on (the lights on the switch is on);
• pressed the button for 5 seconds;
• the GREEN led stays steady on;
• start the engine without turning the ignition key off. This causes the engine to start
directly on GAS;
• each time the engine is turned on it is necessary to repeat the above procedure to start
the engine in EMERGENCY mode.
The EMERGENCY function can be activated only if the RED wire of the "GALILEO"
is connected to +12 V ignition, not timed.
Is170TC-0 Rev. 211004-0
VEHICLE CONFIGURATION MENU
RED LED
RESERVE
GREEN LED
GAS
OPERATION
GREEN LED
RED LED + 4 GREEN LED's
YELLOW LED
EMERGENCY
WARNING!
ACTIVE SETTING
4 cylinders
5 cylinders
6 cylinders
8 cylinders
Dual coil
Single coil for cylinder
Standard
Weak
4 GREEN LED's
LEVEL INDICATOR
YELLOW LED
GASOLINE
OPERATION
