Using the Monitor
Selecting the Correct Cuff Size
Using the correct cuff size is important for an accurate reading. If the cuff is not the proper size, the reading may yield
an incorrect blood pressure value.
q The arm size is printed on each cuff.
q The index
and proper fit range, on the cuff, tell you if you are applying the correct cuff. (Refer to "Symbols that
are printed on the cuff" on the next page)
q If the index
points outside of the range, contact your local dealer to purchase a replacement cuff. The arm cuff is
a consumable. If it becomes worn, purchase a new one.
Arm Size
8.6"-16.5" (22-42 cm)
6.3"-9.4" (16-24cm)
9.0"-14.6" (23-37cm)
12.2"-17.7" (31-45cm)
Arm size: The circumference at the biceps.
Note: UA-767F and UA-767FAC can work with optional medium cuff and large cuff but cannot work with a small cuff. UA-767FS and UA-767FSAC
only work with the small cuff.

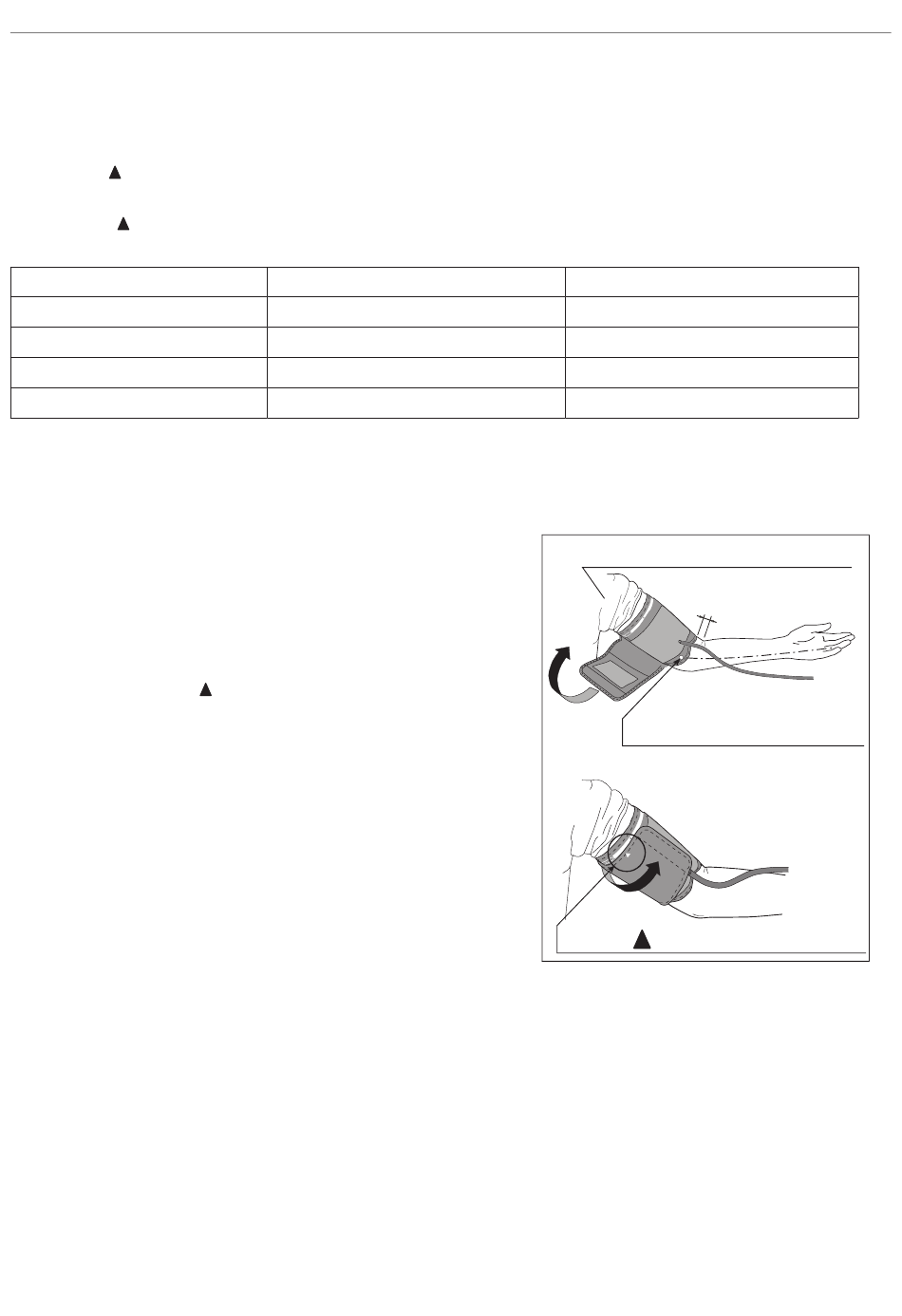

Applying the Arm Cuff
1. Wrap the cuff around the upper arm, about 1-2 cm above
the inside of the elbow, as shown.
Place the cuff directly against the skin, as clothing may
cause a faint pulse, and result in a measurement error.
2. Constriction of the upper arm, caused by tightly rolling up a
shirtsleeve, may prevent accurate readings.
3. Confirm that the index
Recommended Cuff Size
AccuFit™ Plus
Small Cuff
Medium Cuff
Large Cuff
points within the proper fit range.
Catalog Number
UA-420
UA-289
UA-290
UA-291
Do not roll up shirtsleeve tightly
Cuff
1-2 cm
Artery position mark
Secure the fabric
fastener firmly
Index
and proper fit range
Air Hose
