SERVICE MANUAL
EN
The following instructions provide the necessary
information for the proper operation and preventive
maintenance of the Binks AA1600M Air-Assist
Airless Spray Gun. Please read and understand all
information in this document in order to get the
maximum performance from your new AA1600M
spray gun.
In the AA1600M spray gun, the paint or other
material to be sprayed is pre-atomized and forced
through the carbide tip by the typical 400-800 psi
fluid pressure (with capabilities up to 1,600 psi/110
bar). As a result of the pre-atomizing, the final
shaping air supplied by the air cap produces an
exceptionally fine and even spray pattern. The result
of this spray pattern is an even finish that lends itself
to products that need an exceptionally fine finish
with reduced overspray and VOC emissions.
SPECIFICATIONS:
Maximum
Fluid Pressure: 1600 psi/110 bar
Maximum
Air Pressure: 100 psi / 6.8 bar
Gun Body: Forged Aluminum
Fluid Path: Stainless Steel
Fluid Seat: UHMW (Tungsten Carbide optional)
Fluid Inlet Size: 1/4" NPS(m) Thread
Air Inlet Size: 1/4" NPS(m) Thread
Gun Weight: 17.28 oz./ 490 g
(without Tip, Aircap, Guard)
15 psi [1 bar] is the maximum inlet air pressure for
HVLP (15 psi [1 bar] max. for HVLP twist tip cap),
or use 20-40 psi [1.4-2.8 bar] inlet air pressure for
LVMP. The HVLP flat tip and twist tip air caps
consume 8.3 SCFM [230 L/m] air at their respective
maximum inlet air pressures. The LVMP flat tip and
twist tip air caps consume 13 SCFM [368 L/m] at
30 psi [2.1 bar] inlet air pressure.
READ ALL INSTRUCTIONS BEFORE OPERATING THIS BINKS PRODUCT
77-2921-R10.5 (6/2017)

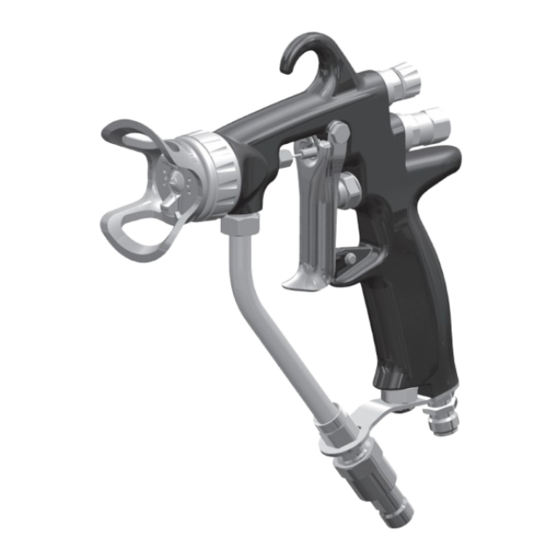

AA1600M AIR-ASSIST
AIRLESS SPRAY GUN
(0909-1600-XXXXXX)
(WITH FLAT TIP/TWIST TIP OPTION,
FAN SIZE ADJUSTMENT FEATURE
AND HVLP/LVMP TECHNOLOGY)
II 2 G X
PROP 65 WARNING
WARNING: This product
contains chemicals known
to the State of California
to cause cancer and birth
defects or other
reproductive harm.
IMPORTANT!
DO NOT DESTROY
It is the customer's responsibility to have
all operators and service personnel read
and understand this manual.
Contact your local Binks representative
for additional copies of this manual.
1 / 14 www.carlisleft.com
