DISPLAY MODE

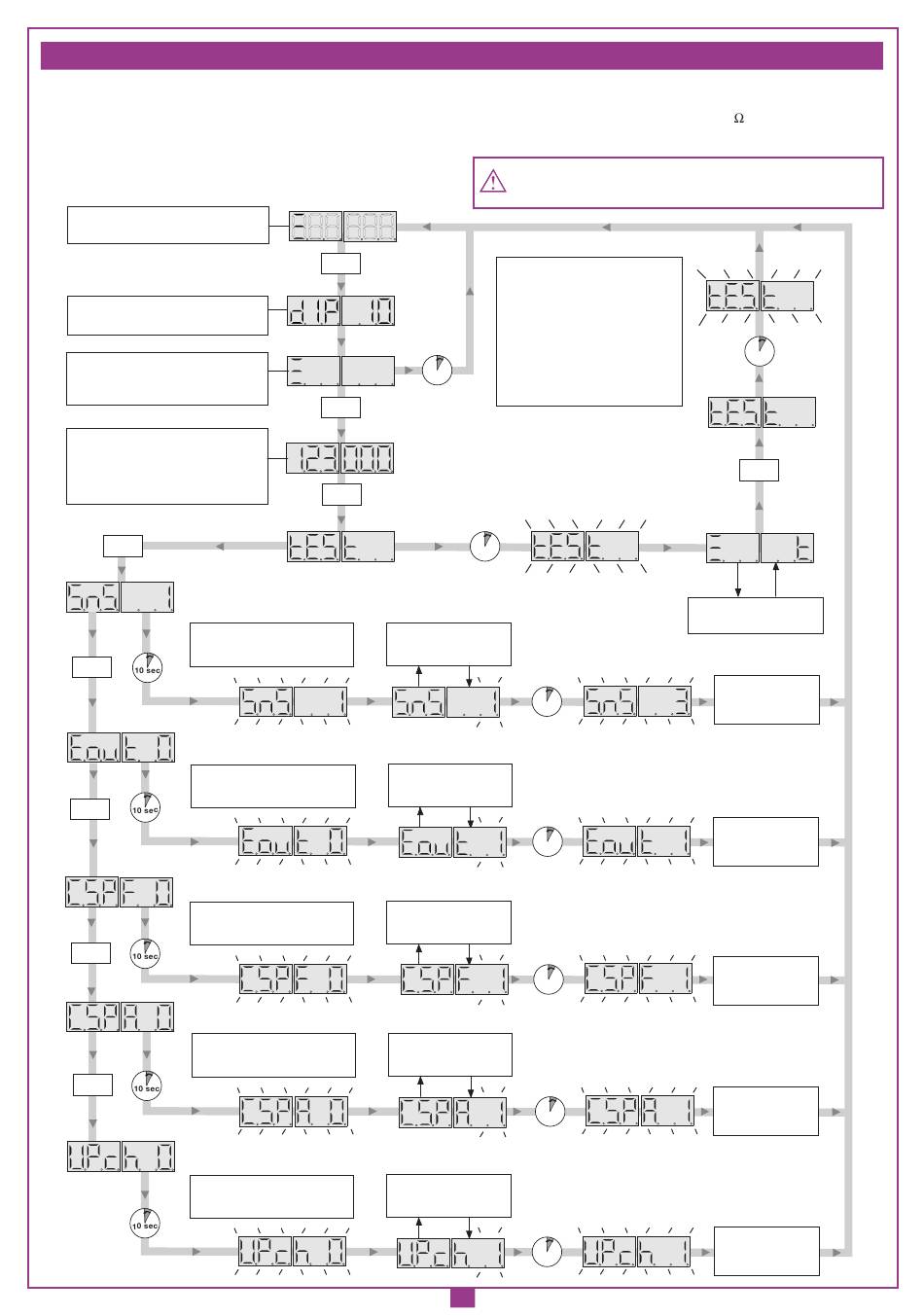

Using the PROG button you can access the following functions in
sequence:
- memorising the status of the dip-switches;
- display the status of the command and safety devices;
- display the number of manoeuvres;
- access the "test" mode;
- setting the current sensor sensitivity level;
The status of the security devices TB, FTCI,
FTCS/CSP is always shown on the display.
Memorising the DIP-SWITCH settings and
displaying the firmware version (e.g. "_10")
The segments regarding the command status
(LED "ON" = command active) and safety
status (LED "ON" = safety device at rest) light
up.
The number of manoeuvres appears on the
display. This number always remains visible
until you change the setting. Once 999999
has been exceeded the lighting up of the
decimal point on the display equals 1 million
+ the six figure number.
PRESS
PROG
Setting the current sensor.
1 = motor consumption + 0,9 amp
2 = motor consumption + 1,5 amps
3 = motor consumption + 2,2 amps
PRESS
PROG
Traffic light signals
0 = disabled
1 = enabled
PRESS
PROG
Special safety edge (SCL card).
0 = disabled
1 = enabled
PRESS
PROG
Analogical safety edge 8.2 kOhm.
0 = disabled
1 = enabled
PRESS
PROG
Manual mode closing enabled.
0 = disabled
1 = enabled
- enabling the traffic light functions (SCL card);
- enabling the special safety edge (SCL card);
- enabling the analogical safety edge 8.2 k ;
- enabling closing in the manual mode.
PRESS
In the "test" mode (only activated when
PROG
the motor has stopped) it is possible to
check the status of the command and
safety devices and carry out eventual
maintenance. The warning lights will
activate once, each time a
"TA-TC-TD-TB-FTCI-FTCS" command is
received. To return to the normal
operating mode press the "prog" button
10 sec
again "test" will appear, then wait for 10
seconds.
PRESS
PROG
PRESS
PROG
10 sec
PRESS PROG
Each time "PROG" is pressed
the number will increase (from
1 to 3).
PRESS PROG
Each time "PROG" is pressed
the number will alternate
(between 0 and 1).
PRESS PROG
Each time "PROG" is pressed
the number will alternate
(between 0 and 1).
PRESS PROG
Each time "PROG" is pressed
the number will alternate
(between 0 and 1).
PRESS PROG
Each time "PROG" is pressed
the number will alternate
(between 0 and 1).
20
If you are unable to modify a setting it means that another
function with greater priority is impeding it.
