INSTALL CANOPY COVER

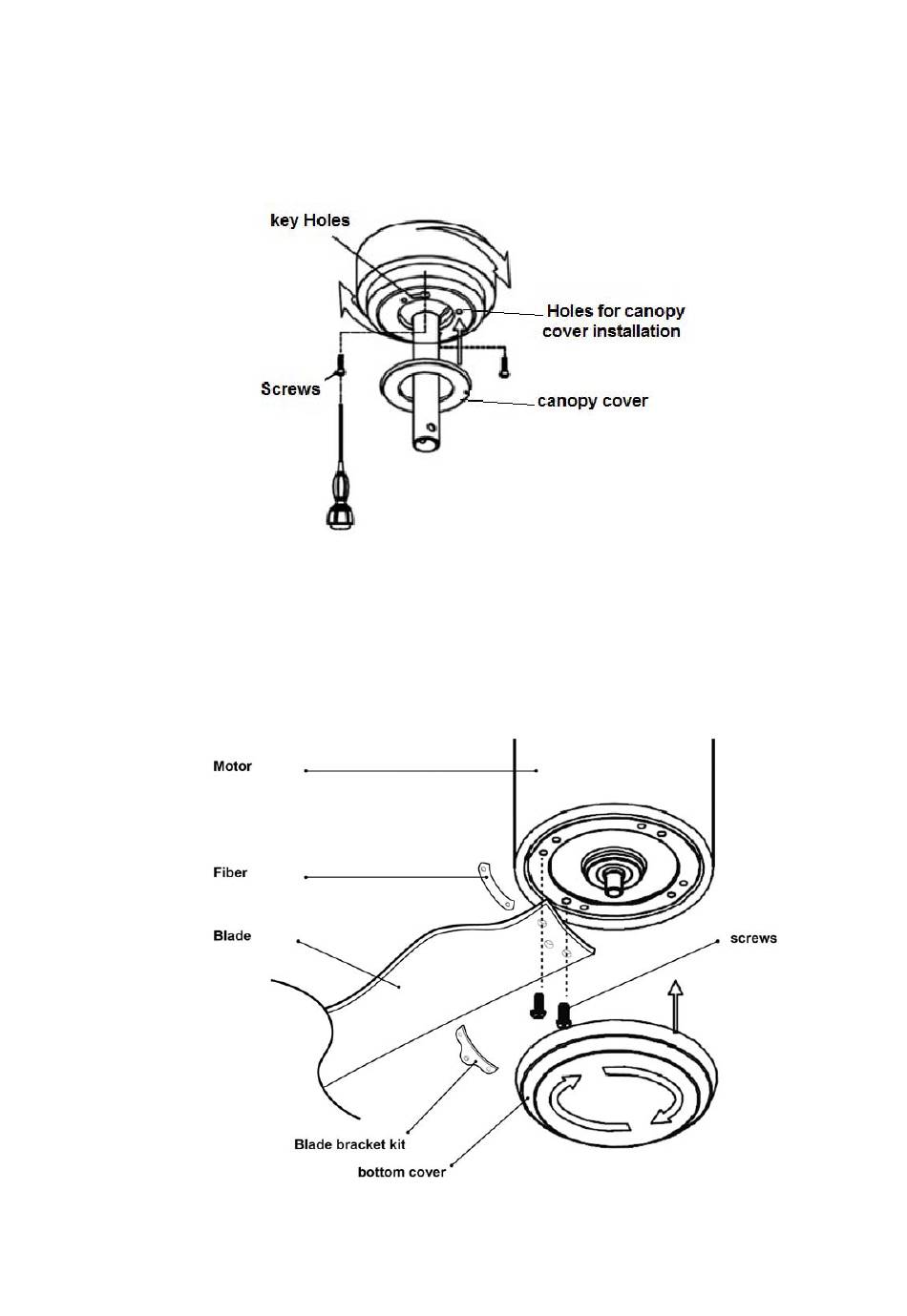

Loosen 2 screws from the bottom of the mounting bracket.
Slide the canopy up to the mounting bracket and place the key hole on the canopy over the screw on the mounting
bracket, turn canopy until it locks in place at the narrow section of the key holes, secure it by tightening the two set
screws. Avoid damaging the electrical wiring prepared previously.
Finally attach the canopy cover to canopy and secure it by pushing the lugs into the holes.

BLADE INSTALLATION

Insert the blade screws through blade assembly consist of the following order, bracket kit, blade, and fiber. Attach
the blade assembly to motor and secure it by tightening the 2 screws. Fig. 11
Repeat to install the other blades.
Finally install the bottom cover to shaft of motor by rotating it clockwise.
Fig. 8
Fig. 7
