Airfusion Climate III Installation Instructions

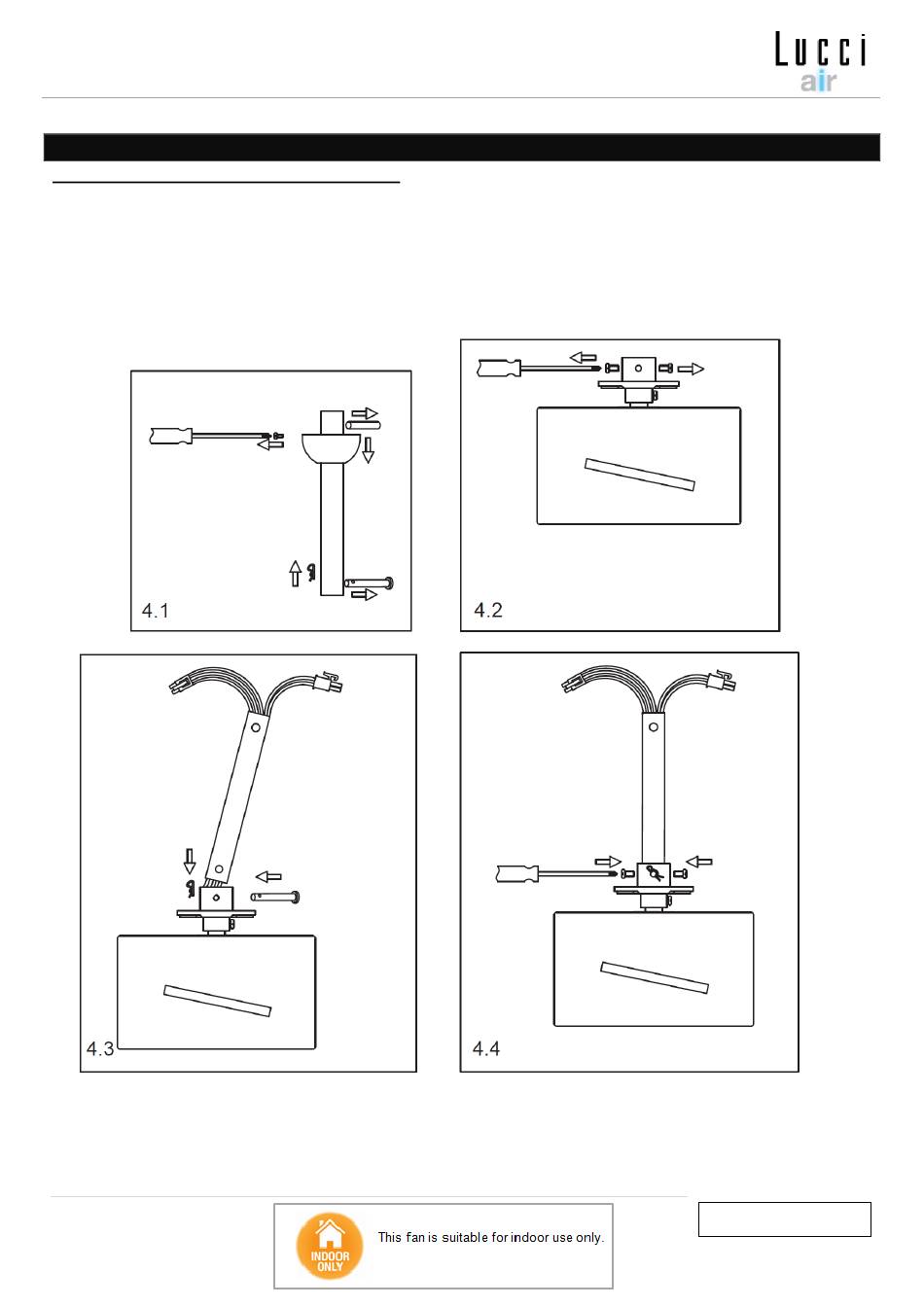

INSTALLATION OF THE DOWN ROD (Fig.4)
1. Remove the ball joint and dowel pin by loosening the set screw. Remove the lock pin by removing the
hitch pin. Do not discard keep these parts, they are required to reassemble later.
2. Loosen the set screws on the down rod coupling housing of the fan motor assembly.
3. Carefully feed the fan wires up through the down rod. Install the down rod into the down rod coupling
housing of the fan motor assembly. Line up the down rod coupling housing holes with the down rod holes
and install the lock pin and the hitch pin.
4. Secure the down rod by tightening the set screws.
