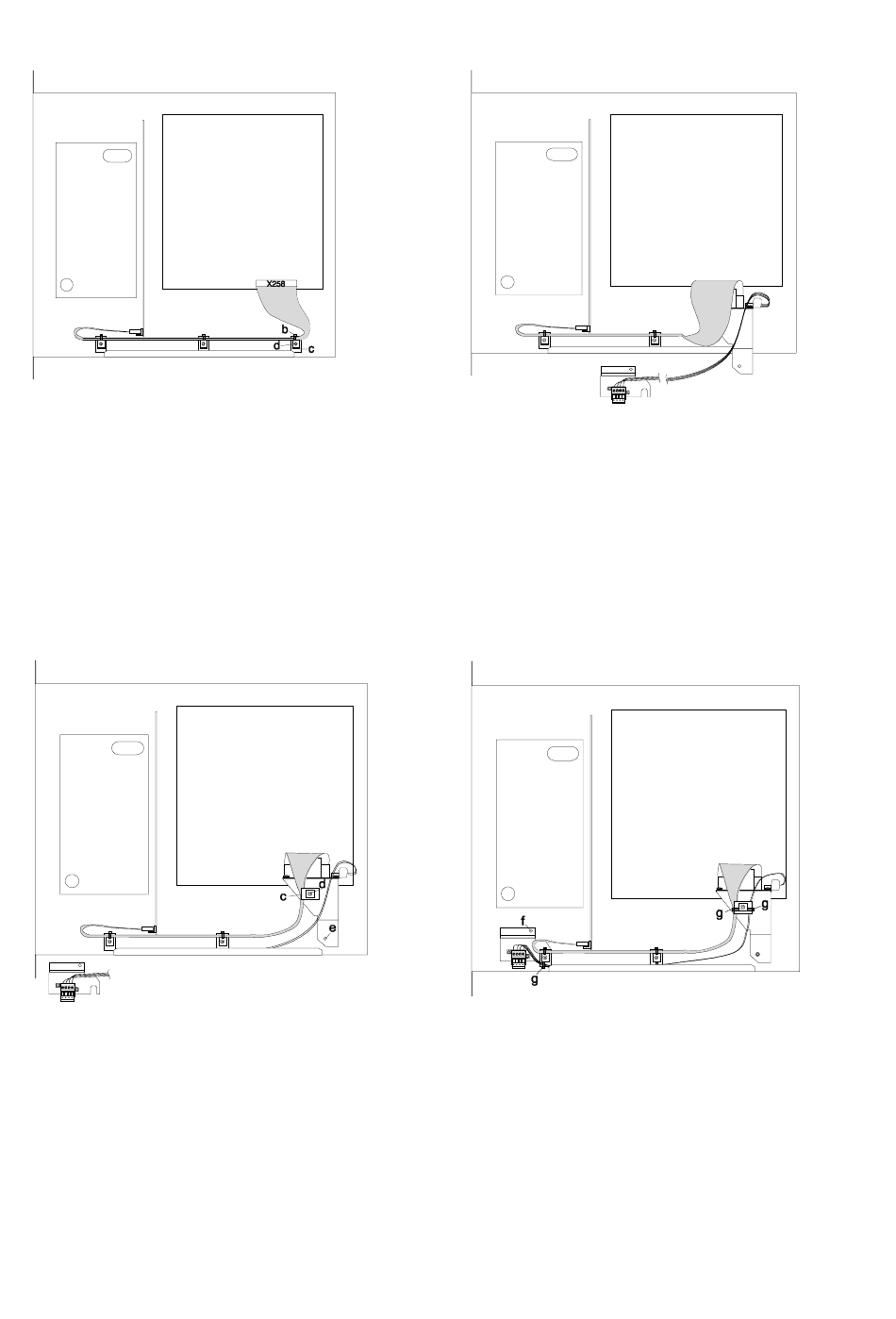

Fig. 4-8
3.
In the electronics module, remove cable tie (b)
and remove cable holder (c) by releasing
screw (d)
Fig. 4-10
5.
Insert the "SSB" at connector X258 and retain
the mounting bracket with screw (e).
Mount the cable holder (c) with screw (d) at
the mounting bracket
30
Fig. 4-9
4.
Remove the ribbon cable from X258 of the power
supply and insert at connector X538 of the "SSB".
Note:
The ribbon cable has a coding pin (pin 9) and can
only be inserted in the correct position in the
connector.
Fig. 4-11
6.
Insert the mounting plate of connector X533. The
recess in the mounting plate encompasses the
threaded bushing of the front cable holder. Retain the
mounting plate with screw (f). Retain the cable using
cable ties (g).
Safe Stop Board
