Operating Instructions

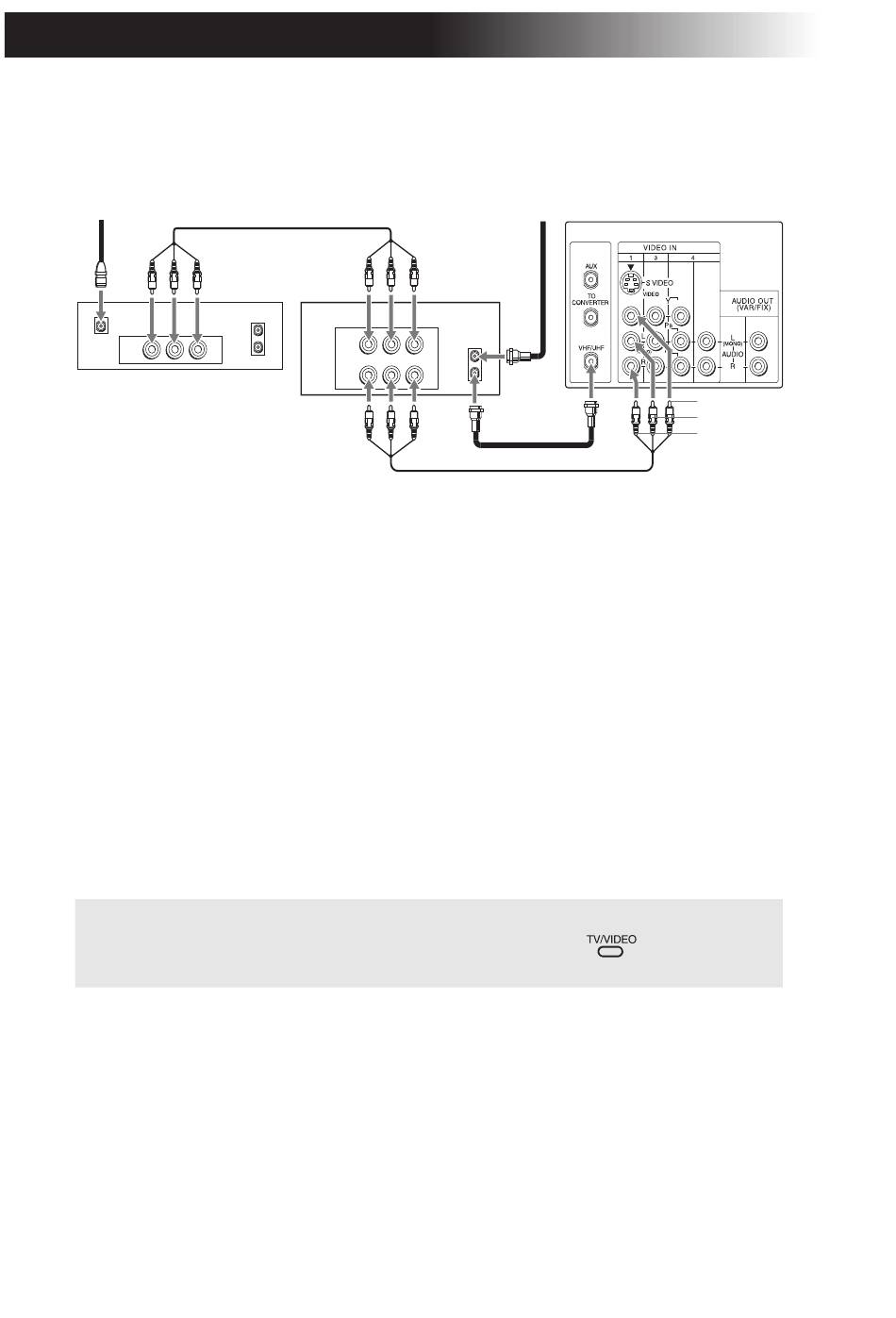

TV, Satellite Receiver, and VCR
Satellite
antenna
cable
4
1
SATELLITE IN
VHF/UHF
AUDIO R AUDIO L VIDEO
LINE OUT
Satellite Receiver
1
Connect the cable from your satellite antenna to SATELLITE IN on
your satellite receiver.
2
Connect the coaxial cable from your cable or antenna to the
IN jack on your VCR.
3
Using a coaxial cable (not supplied), connect the OUT jack on your
VCR to the VHF/UHF jack on your TV.
4
Using Audio/Video cables (not supplied), connect AUDIO and
VIDEO OUT on your satellite receiver to AUDIO and VIDEO IN on
your VCR.
5
Using Audio/Video cables (not supplied), connect AUDIO and
VIDEO OUT on your VCR to AUDIO and VIDEO IN on your TV.


To view from the satellite receiver or VCR, select the video input to which
your satellite receiver or VCR is connected by pressing
control.
10
VCR
AUDIO R AUDIO L VIDEO
IN
LINE IN
OUT
LINE OUT
5
Rear of TV
From
cable/
antenna
2
VHF/UHF
IN
OUT
3
Video (yellow)
Audio L (white)
Audio R (red)
on the remote
