Installation instructions for part GMOS-LAN-02

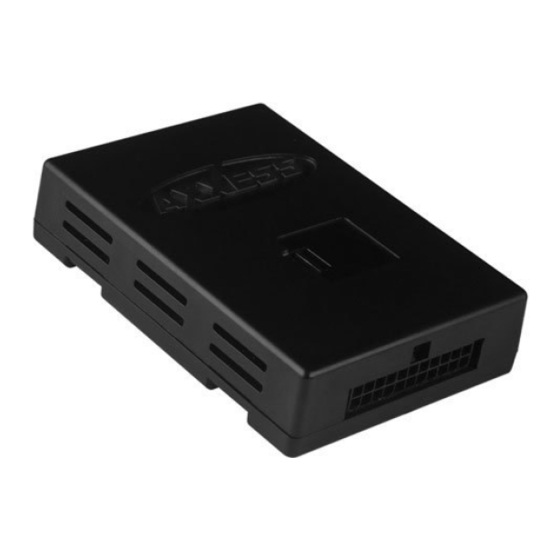

GM Data Interface
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Provides NAV outputs (parking brake,
reverse, speed sense)
• Retains chimes
• Pre-wired ASWC-1 harness
(ASWC-1 sold separately)
BUICK
CHEVROLET
Avalanche ∆ 2007-2013
Enclave
2008-Up
Captiva Sport 2012-2015
Lucerne
2006-2011
Equinox
CADILLAC
Impala
DTS
2006-2011
Impala Limited 2014-2016
Escalade
2007-2014
Monte Carlo 2006-2007
Escalade ESV 2007-2011
Silverado 2500/3500 ∆
Escalade EXT 2007-2014
SRX
2007-2009
Silverado (new body) ∆
Suburban ∆ 2007-2014
∆ For 2012-Up models with NAV use the GMOS-LAN-07.
Axxess Integrate
GMOS-LAN-02
2006-Up
INTERFACE FEATURES
• Retains OnStar / OE Bluetooth
• Adjustable OnStar level
• Designed for amplified models
• Retains balance and fade
• USB-CAB (sold separately) updatable
APPLICATIONS
CHEVROLET (CONT)
Tahoe ∆
2007-2014
Traverse
2007-2009
GMC
2006-2013
Acadia
2007-2016
Acadia Limited
Sierra 2500/3500 ∆ 2014
Sierra (new body) ∆
2014
2007-2013
Yukon / Yukon XL ∆
2007-2013
2007-2014
axxessinterfaces.com
HUMMER
H2
2008-2009
2009-Up
PONTIAC
Torrent
2007-2009
SATURN
2017
Outlook
2007-2010
Vue
2008-2010
SUZUKI
XL-7
2007-2009
•
metraonline.com
Table of Contents
Connections to be made .........................................2
Installing the GMOS-LAN-02 ..................................3
Initializing the GMOS-LAN-02 ................................3
Adjusting the GMOS-LAN-02 ..................................3
INTERFACE COMPONENTS
• GMOS-LAN-02 interface • GMOS-LAN-02 harness
• 16-pin harness with stripped leads
• Backup camera harness • Antenna adapter
TOOLS REQUIRED
• Wire cutter • Crimp tool • Solder gun • Tape
• Connectors (example: butt-connectors, bell caps, etc.)
• Small flat-blade screwdriver
CAUTION!
All accessories, switches, climate controls panels, and
especially air bag indicator lights must be connected before cycling
the ignition. Also, do not remove the factory radio with the key in the
on position, or while the vehicle is running.
© COPYRIGHT 2020 METRA ELECTRONICS CORPORATION
