How to Assemble the Blades and Light Kit (Cont'd)

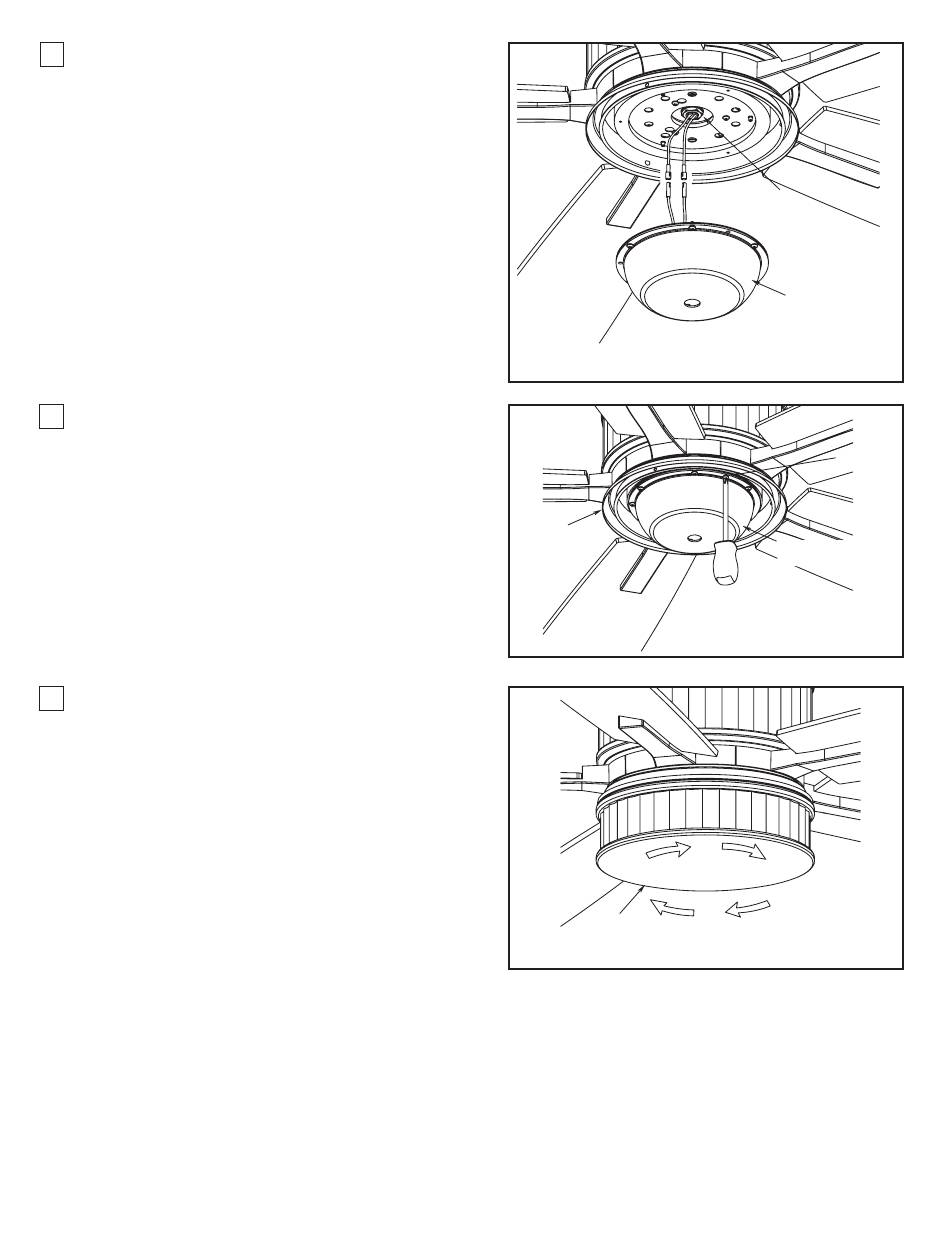

4. Connect the 2-pin connector from the LE D down
light assembly to 2-pin connector from motor
assembly. (Figure 21)
5. Remove three screws in the light plate assembly.
Assemble the LED down light assembly to the light
plate assembly using the three screws and securely
tighten. (Figure 22)
6. Secure the glass to the light plate assembly
by twisting in a clockwise direction.
Do not over-tighten. (Figure 23)
LIGHT PLATE
ASSEMBLY
GLASS
11
MOTOR ASSEMBLY
LED DOWN LIGHT
ASSEMBLY
Figure 21
SCREWS (3)
LED DOWN LIGHT
ASSEMBLY
Figure 22
Figure 23
