How to Assemble the Blades and Light Kit

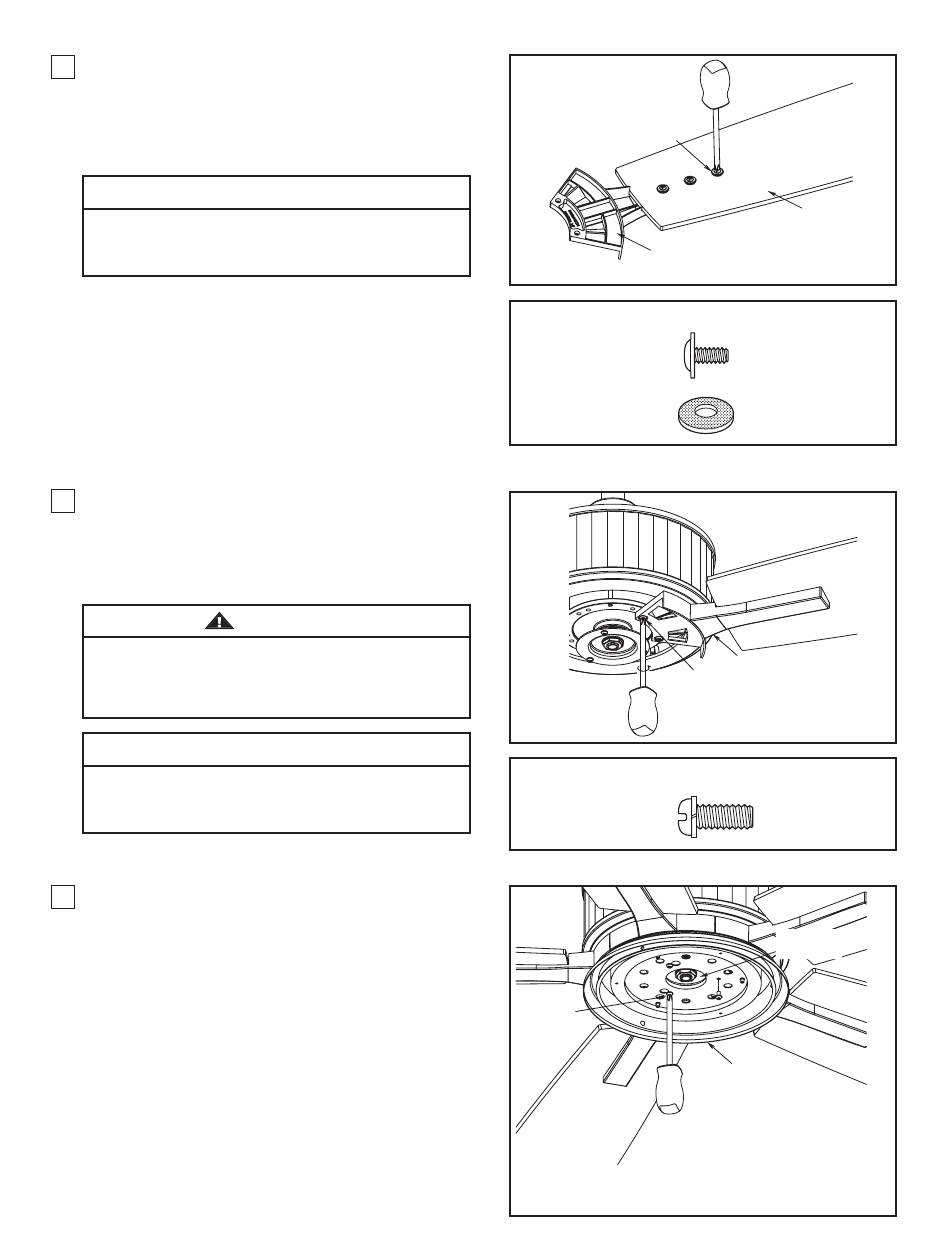

1. Position the blade over the blade holder with
threaded posts showing. Make sure the bottom
edge of the blade is fully seated against the blade
arm. With a Phillips screwdriver, tighten 3/16-24 x
7.5 mm washer head screws and fiber washers to
secure the blade to the blade arm (Figure 18).
CAUTION
Do not connect fan blades until the fan is completely
installed. Installing the fan with blades assembled
may result in damage to the fan blades.
2. Secure the blade holders to the motor support
using the 1/4-20 x 14 mm screws through the holes
located on the side of the motor support (Figure 19).
Periodically check blade holder hardware and
NOTE:
resecure if necessary.
WARNING
To reduce the risk of personal injury, do not bend the
blade holders when installing, balancing the blades
or cleaning the fan. Do not insert foreign objects in
between the rotating blades.
CAUTION
To reduce the risk of electric shock, disconnect the
electrical supply circult to the fan before installing
light kit.
3. Remove one of the three screws in the support
bracket at the bottom of the motor assembly.
Slightly loosen the remaining two screws.
Assemble the light plate assembly to the support
bracket using the two key slots in the socket
plate. Replace the third screw and securely
tighten all three screws (Figure 20).
3/16-24 x 7.5mm WASHER
HEAD SCREW AND FIBER
WASHER (3 each per blade)
BLADE HOLDER
HARDWARE USED:
3/16-24 x 7.5mm
WASHER HEAD
SCREWS
FIBER WASHER
HARDWARE USED:
1/4-20 x 14mm
SCREWS
SCREWS (3)
10
BLADE
Figure 18
x 15
x 15
BLADE HOLDER
1/4-20 x 14mm SCREWS
(2 per assembly)
Figure 19
x 10
MOTOR
ASSEMBLY
LIGHT PLATE
ASSEMBLY
Figure 20
